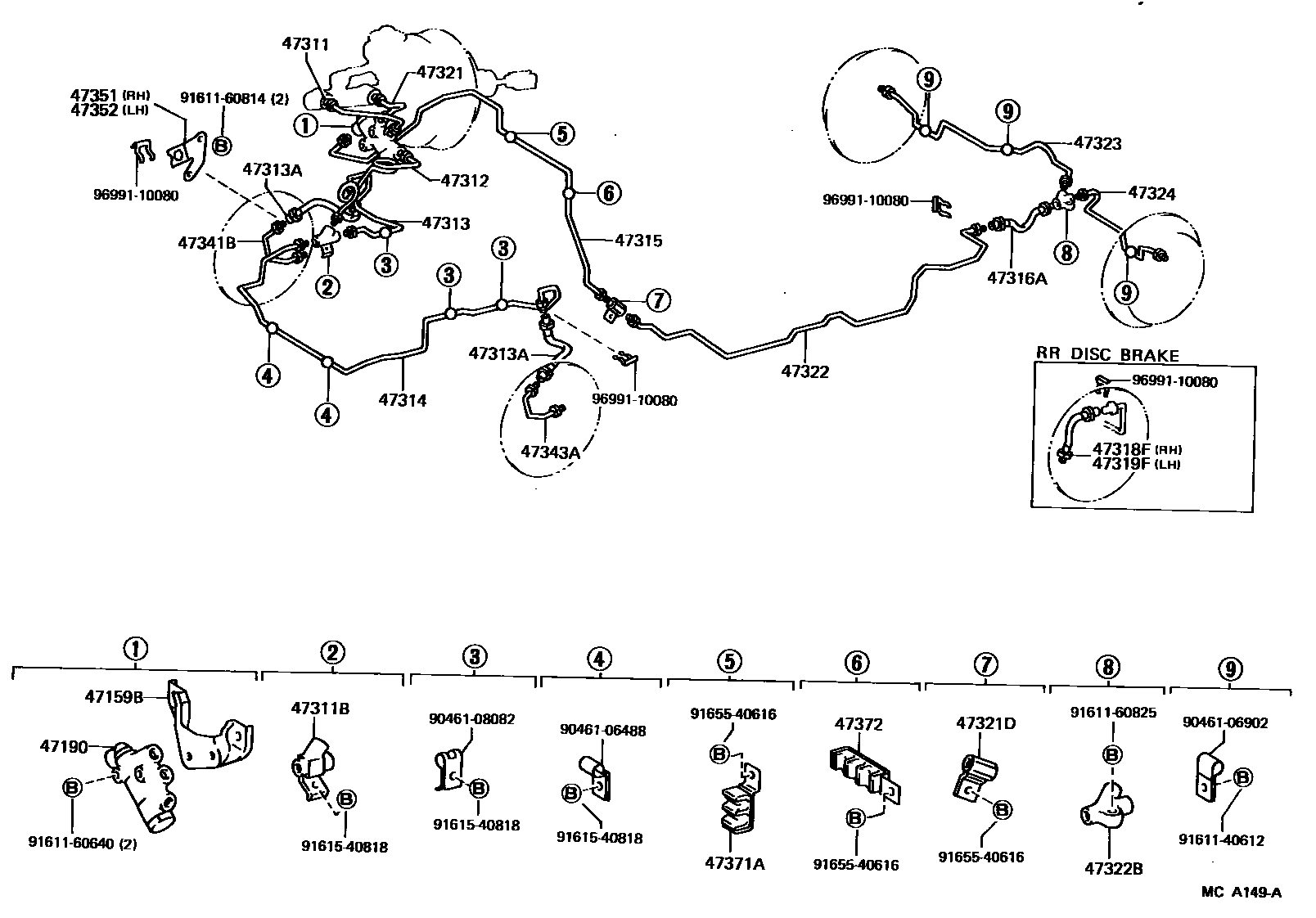

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47159BBRACKET, PROPORTIONING & BY-PASS VALVE

main47159-30150iLS120,MS12#,YS120198308-198708

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-30110iMS122..DLX,SAL198509-198708

main47190-30130iMS123,125..ROY198308-198509

main47190-30150iLS120,MS122,YS120..SAL,STD; MS123..SWZ198308-198509

main47190-30160iMS122..ROY198308-198509

47311TUBE, FRONT BRAKE, NO.1

main47311-30380iMS123,125..ARL,EUG,GEN,SAA198308-198509

main47311-30400iLS120,YS120198509-198708

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10109iMS123..4FC..EUG198308-198509

W/ESC

main90413-10014iLS120,MS12#,YS120..RHD198308-198708

main90413-10092iLS120,MS122,YS120..(SED,WG)..LHD198308-198708

main90413-10166iMS122..HT; MS125..LHD198509-198708

47312TUBE, FRONT BRAKE, NO.2

main47312-30130iLS120,MS122,YS120..RHD198308-198509

main47312-30140iMS123,125..RHD198308-198509

main47312-30170iLS120,MS122,YS120..LHD; MS123..SWZ198308-198509

main47312-30180iMS123,125..LHD..(EUG,GEN,SAA)198308-198509

main47312-30190iMS123..4FC..EUG198308-198509

W/ESC

main47312-30200iMS12#..RHD198509-198708

main47312-30220iMS122..HT; MS125..LHD198509-198708

main47312-30240iMS122..(SED,WG)..LHD198509-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-30140iLS120,MS12#,YS120..RHD198308-198708

main47313-30150iLS120,MS12#,YS120..LHD198308-198708

main47313-30170iMS123..4FC..EUG198308-198509

W/ESC

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02361×2iLS120,MS12#,YS120198308-198702

main90947-02537iLS120; MS122..DLX..GEN; YS120..LHD198609-198708

TAXI SPEC

47314TUBE, FRONT BRAKE, NO.4

main47314-30150iLS120,MS12#,YS120..RHD198308-198509

main47314-30160iMS123..4FC..EUG198308-198509

W/ESC

main47314-30170iLS120,MS12#,YS120..LHD198308-198708

main47314-30190iMS12#..RHD198509-198512

47315TUBE, FRONT BRAKE, NO.5

main47315-30260iLS120,MS122,YS120..RHD198308-198509

main47315-30270iMS123,125..RHD198308-198509

main47315-30300iLS120,MS122,YS120..LHD; MS123..SWZ198308-198509

main47315-30310iMS123..LHD..(EUG,GEN)198308-198309

main47315-30311iMS123,125..LHD..(EUG,GEN,SAA)198309-198509

main47315-30320iMS123..4FC..EUG198308-198509

W/ESC

main47315-30330iMS12#..RHD198509-198708

main47315-30350iMS122,125..LHD198509-198708

47316TUBE, FRONT BRAKE, NO.6

main47316-30170iMS123..4FC..EUG198308-198509

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iLS120,MS122,YS120198308-198708

47318TUBE, FRONT BRAKE, NO.8

main47318-30100iMS123..4FC..EUG198308-198509

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32105iMS122..ROY198308-198708

main96940-39905iMS123,125198308-198708

47319TUBE, FRONT BRAKE, NO.9

main47319-30100iMS123..4FC..EUG198308-198309

main47319-30101iMS123..4FC..EUG198309-198509

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32105iMS122..ROY198308-198708

main96940-39905iMS123,125198308-198708

47321TUBE, REAR BRAKE, NO.1

main47321-30100iMS123,125..ARL,EUG,GEN,SAA198308-198509

main47321-30120iMS123..SWZ;LS120,MS122,YS120198308-198509

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10116iLS120,MS12#,YS120198308-198708

47322TUBE, REAR BRAKE, NO.2

main47322-30070iLS120,MS122,YS120198308-198708

main47322-30080iMS123,125198308-198708

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10156iLS120,MS122,YS120198308-198708

main90413-10157iMS123,125198308-198708

47323TUBE, REAR BRAKE, NO.3

main47323-30080iLS120,MS122,YS120..DLX,SAL,STD198308-198708

main47323-30090iMS122..ROY198308-198708

main47323-30100iMS123,125198308-198708

47324TUBE, REAR BRAKE, NO.4

main47324-30040iLS120,MS122,YS120..DLX,SAL,STD198308-198708

main47324-30050iMS122..ROY198308-198708

main47324-30060iMS123,125198308-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-30020iLS120,MS12#,YS120198308-198708

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-30020iLS120,MS12#,YS120198308-198708

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30160iLS120,MS12#,YS120198308-198708

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30080iLS120,MS12#,YS120198308-198708

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30010iLS120,MS12#,YS120..RHD198308-198708

main47371-30040iMS123..4FC..EUG198308-198509

47372CLAMP, BRAKE TUBE, NO.2

main47371-30020iLS120,MS12#,YS120..RHD198308-198708

main47371-30050iMS123..4FC..EUG198308-198509

9046106488

main90461-06488

9046106902

main90461-06902

9046108082

main90461-08082

9161140612

main91611-40612

9161160640

main91611-60640

9161160814

main91611-60814

9161160825

main91611-60825

9161540818

main91615-40818

9165540616

main91655-40616

9699110080

main96991-10080

37 parts on this diagram · 7 diagrams in section
