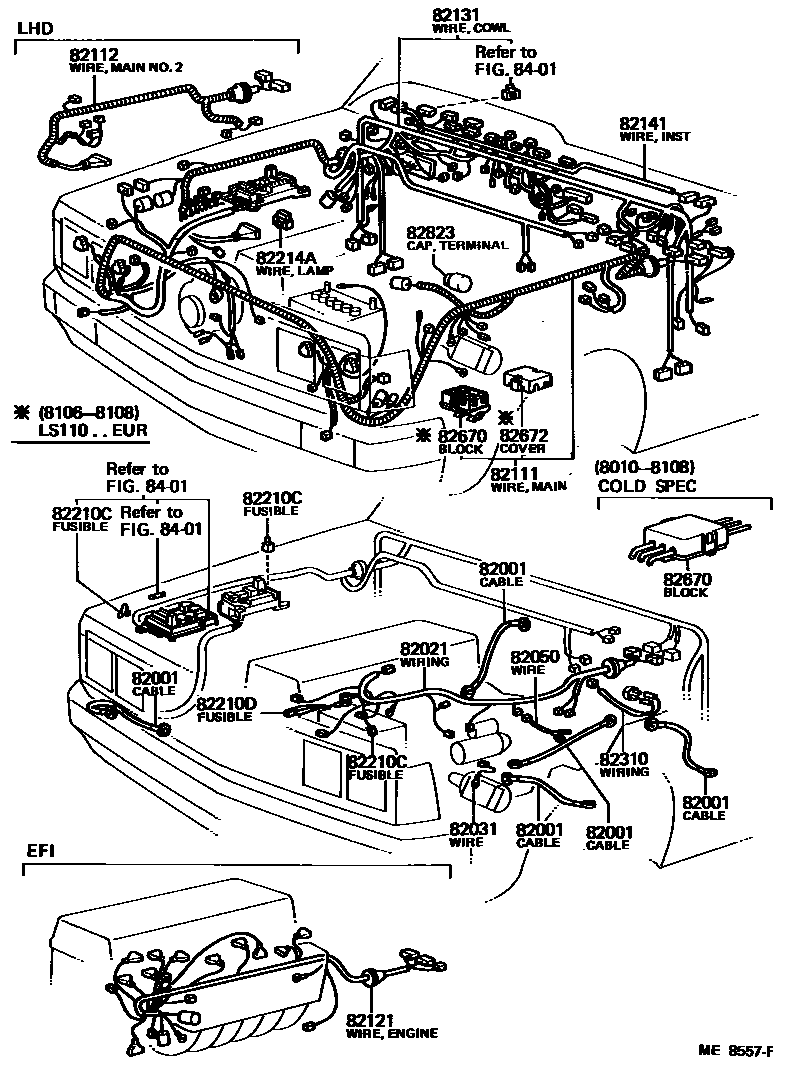

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=510
L=300
L=170
L=350
L=320
82021WIRING ASSY, STARTER
82031WIRE SUB-ASSY, IGNITION COIL
82050WIRE ASSY, ENGINE
82111WIRE, ENGINE ROOM MAIN
W/HALOGEN HEADLAMP
W/HALOGEN HEADLAMP
W/HALOGEN HEADLAMP
W/HALOGEN HEADLAMP
W/HALOGEN HEADLAMP
COLD SPEC
COLD SPEC
W/HALOGEN HEADLAMP
W/HALOGEN HEADLAMP
W/IC REGULATOR
W/IC REGULATOR
COLD SPEC
W/HALOGEN HEADLAMP
82112WIRE, ENGINE ROOM, NO.2
COLD SPEC
82121WIRE, ENGINE
82131WIRE, COWL
COLD SPEC
82141WIRE, INSTRUMENT PANEL
82210CFUSIBLE LINK
L=110,1.25 BLACK
L=110,0.5 GREEN
L=110,0.5 GREEN
L=110,0.3 PINK
L=110,0.5 GREEN
L=110,0.85 RED
L=110,1.0 YELLOW
L=110,0.3 PINK
L=110,0.5 GREEN
82210DFUSIBLE LINK
COLD SPEC,1.25B,1.25B & 2L
1.25B & 2L
0.5G,0.5G & 2L
82214AWIRE, LAMP
82310WIRING ASSY, TO BACK UP LAMP SWITCH
main82310-30270iLS110..WG..MTM;LS110..4F..DLX;MS111,RS110..MTM;LS110..SED..(4H,5F); MS112..5F..EFI197909-198108
82670BLOCK ASSY, JUNCTION, NO.1
W/IC REGULATOR
W/O IC REGULATOR
82672COVER, JUNKTION BLOCK
W/O IC REGULATOR
82823CAP, TERMINAL, NO.1
8401SWITCH & RELAY & COMPUTER
17 parts on this diagram · 10 diagrams in section
