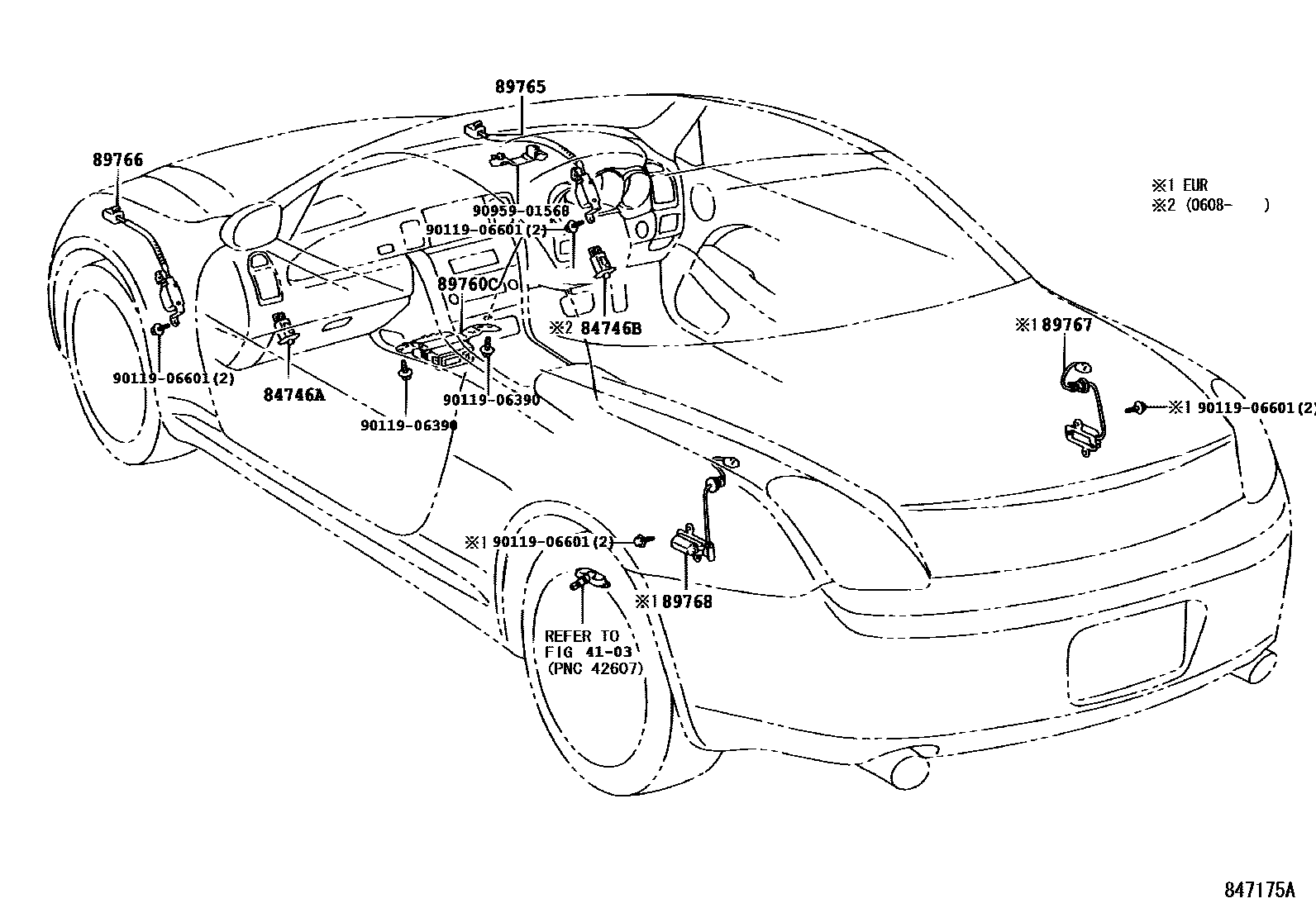

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-24010iUZZ40200508

84746BSWITCH, TIRE PRESSURE WARNING, NO.2

main84746-48010iUZZ40200608

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-24010iUZZ40..RHD..EUR200508-200608

HONG KONG SPEC

main89760-24020iUZZ40200105-200508

main89760-24030iUZZ40..LHD..EUR200208-200508

KOREA SPEC

main89760-24040iUZZ40..RHD..EUR200608-200707

HONG KONG SPEC

main89760-24041iUZZ40..EUR200708

HONG KONG OR TAIWAN SPEC

main89760-24050iUZZ40..EUR,GCC200608-200707

main89760-24051iUZZ40..EUR,GCC200708

main89760-24060iUZZ40..ARL; UZZ40..LHD..EUR200608

BEIJING OR CHINA SPEC

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-24010iUZZ40..ARL; UZZ40..LHD..EUR; UZZ40..RHD..EUR200508-200607

CHINA SPEC; HONG KONG SPEC

main89765-24011iUZZ40..ARL; UZZ40..LHD..EUR; UZZ40..RHD..EUR200608

BEIJING OR CHINA SPEC; HONG KONG SPEC

main89765-24020iUZZ40..EUR,GCC200508-200607

main89765-24021iUZZ40..EUR,GCC200608

89766ANTENNA, TIRE PRESSURE, FRONT LH

main89766-24010iUZZ40..ARL; UZZ40..RHD..EUR200105-200508

HONG KONG SPEC

main89766-24011iUZZ40..ARL; UZZ40..LHD..EUR; UZZ40..RHD..EUR200608

BEIJING OR CHINA SPEC; HONG KONG SPEC

main89766-24020iUZZ40..EUR,GCC200105-200508

main89766-24021iUZZ40..EUR,GCC200608

89767ANTENNA, TIRE PRESSURE, REAR RH

main89767-24010iUZZ40..RHD..EUR200105-200508

HONG KONG SPEC

main89767-24011iUZZ40..LHD..EUR200708

TAIWAN SPEC

main89767-24020iUZZ40..EUR,GCC200508-200607

main89767-24021iUZZ40..EUR,GCC200608

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-24010iUZZ40..RHD..EUR200508-200607

HONG KONG SPEC

main89768-24011iUZZ40..RHD..EUR200608

HONG KONG SPEC

main89768-24020iUZZ40..EUR,GCC200105-200508

main89768-24021iUZZ40..EUR,GCC200608

9011906390

main90119-06390

9011906601

main90119-06601

9095901568

main90959-01568

11 parts on this diagram · 2 diagrams in section
