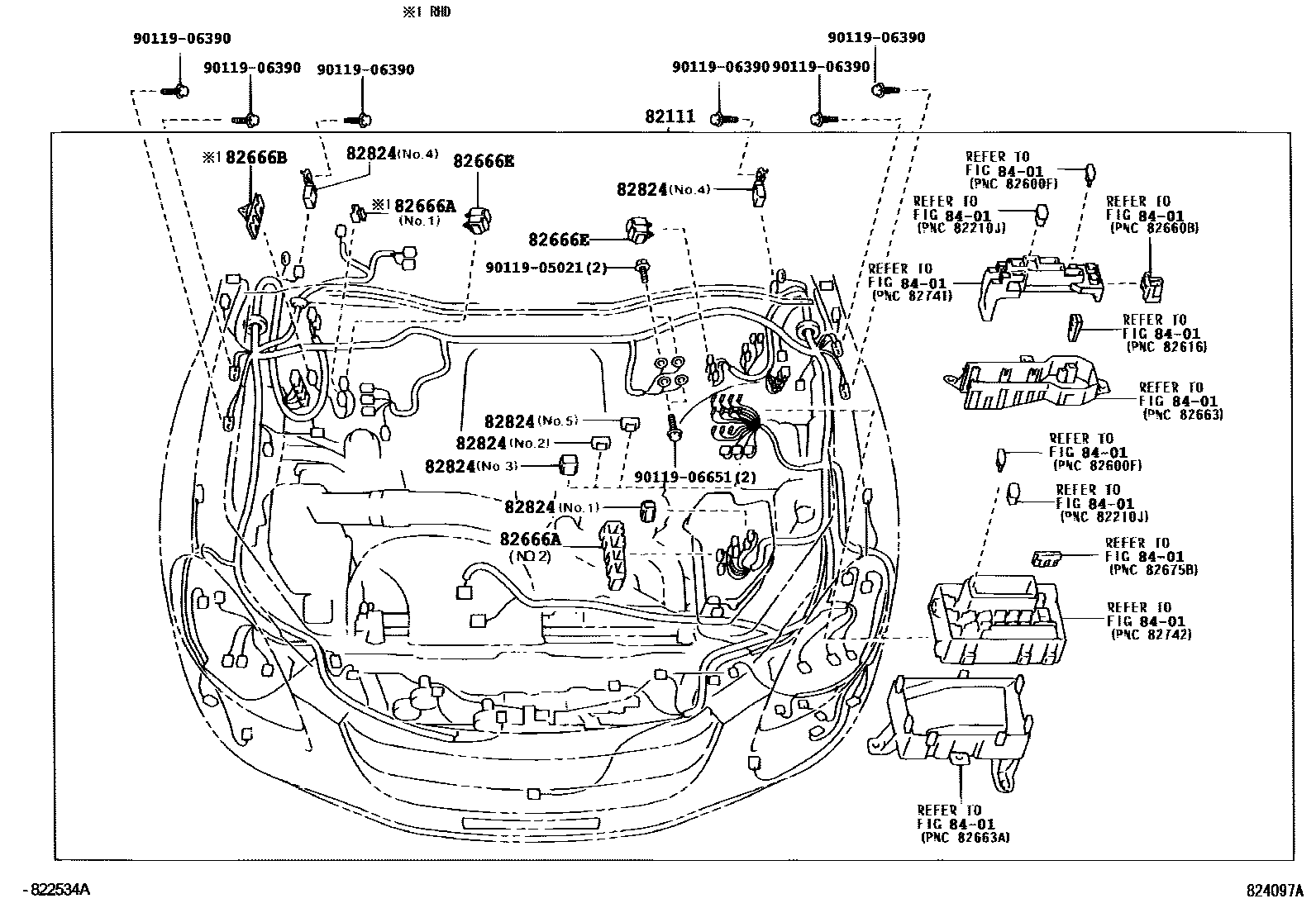

82111WIRE, ENGINE ROOM MAIN

main82111-2U021iUZZ40..LHD200105-200205

main82111-2U022iUZZ40..LHD200205-200508

main82111-2U023iUZZ40..LHD200508-200608

main82111-2U024iUZZ40..LHD200608-200707

main82111-2U025iUZZ40..LHD200708-200808

main82111-2U026iUZZ40..LHD200808

main82111-2U030iUZZ40..RHD200105-200508

main82111-2U031iUZZ40..RHD200508-200608

main82111-2U032iUZZ40..RHD200608-200808

main82111-2U033iUZZ40..RHD200808

82666AHOLDER, CONNECTOR NO.2

main82666-21040iUZZ40..RHD200508

NO.1

main82666-30610iUZZ40200508

NO.2

82666BHOLDER, CONNECTOR NO.3

main82666-60030iUZZ40..RHD200105-200508

82666EHOLDER, CONNECTOR NO.6

main82666-22140×2iUZZ40200105-200508

82824CONNECTOR, WIRING HARNESS

main82824-12210iUZZ40200105-200508

NO.1

main82824-22070iUZZ40200508

NO.2

main82824-30170iUZZ40200508

NO.1

main82824-30220iUZZ40200508

NO.3

main82824-48010×2iUZZ40200105-200508

NO.4

main82824-50110iUZZ40200508

NO.5

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011905021

main90119-05021

9011906390

main90119-06390

9011906651

main90119-06651

9 parts on this diagram · 10 diagrams in section
