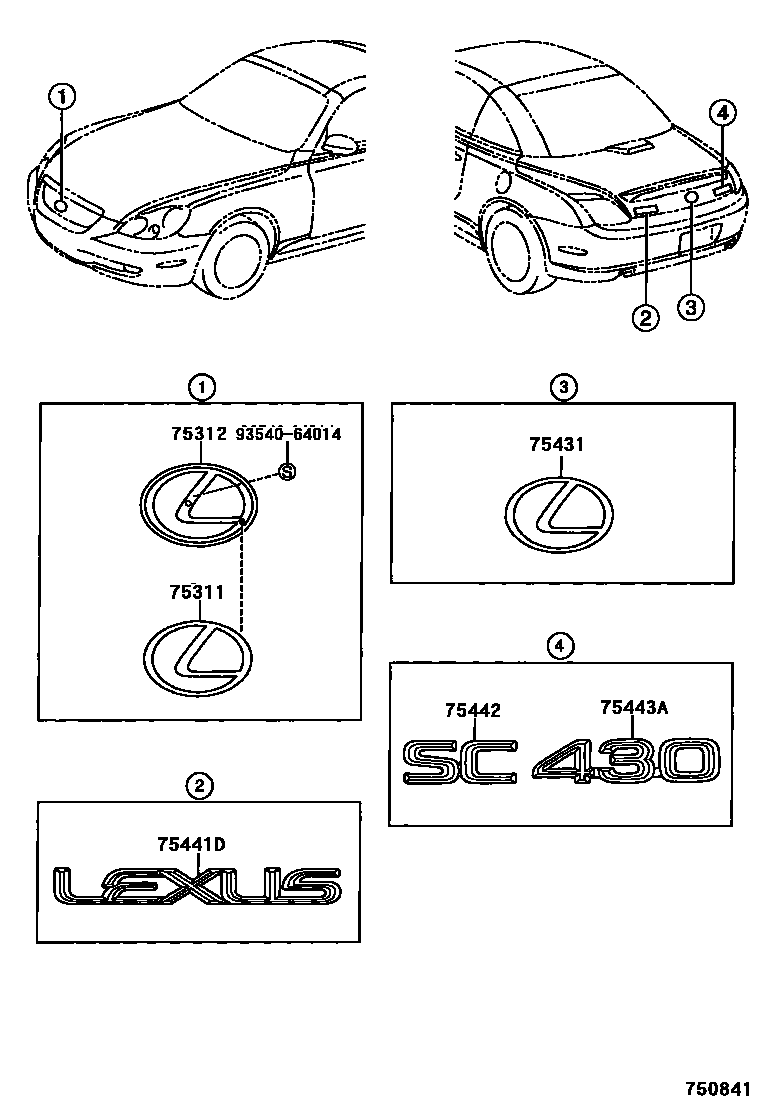

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02028iUZZ40200105-200508

main90975-02081iUZZ40200508-201007

main90975-02145iUZZ40..LHD..EUR200803-201007

RUSSIA SPEC

75312BASE, RADIATOR GRILLE EMBLEM

main75312-24080iUZZ40200105-200508

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main90975-02026iUZZ40200105-200508

main90975-02155iUZZ40..LHD..EUR200803-201007

RUSSIA SPEC

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-24050iUZZ40200105-200508

LEXUS

main75441-24070iUZZ40..LHD..EUR200803-201007

LEXUS,RUSSIA SPEC

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-24030iUZZ40200105-200508

SC

main75442-24040iUZZ40..LHD..EUR200803-201007

SC,RUSSIA SPEC

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-24110iUZZ40200105-200508

430

main75443-24120iUZZ40..LHD..EUR200803-201007

430,RUSSIA SPEC

9354064014

main93540-64014

7 parts on this diagram · 2 diagrams in section
