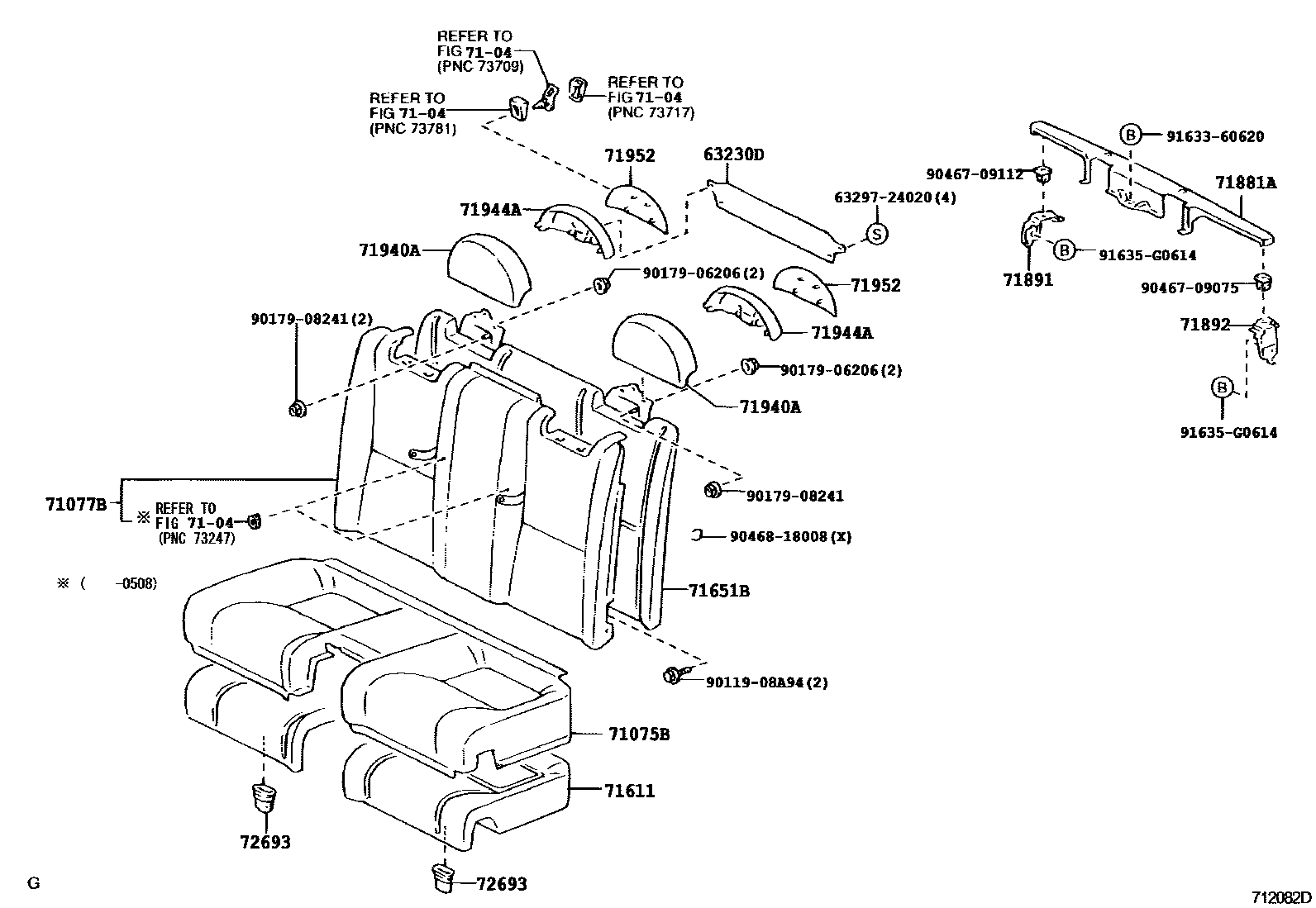

REAR SEAT & SEAT TRACK

63230DBOARD ASSY, WIND DEFLECTOR

main63230-24011iUZZ40200508

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-24300-C0iUZZ40200106-200508

BLACK,TRIM20

main71075-24310-A0iUZZ40200105-200508

ECRU,TRIM0#

main71075-24310-C0iUZZ40200105-200106

BLACK,TRIM20

main71075-24310-E0iUZZ40200106-200205

SADDLE TAN,TRIM2#

main71075-24330-A0iUZZ40200508-200907

ECRU,TRIM0#

main71075-24330-C0iUZZ40200508-200907

BLACK,TRIM2#

main71075-24330-E0iUZZ40200508-200907

CAMEL,TRIM4#

main71075-24331-A1iUZZ40200908

ECRU,TRIM0#

main71075-24331-C1iUZZ40200908

BLACK,TRIM2#

main71075-24331-E2iUZZ40200908

CAMEL,TRIM4#

main71075-24350-A0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,ECRU,TRIM0#

main71075-24350-C0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,BLACK,TRIM2#

main71075-24350-E0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,CAMEL,TRIM4#

main71075-24351-A1iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,ECRU,TRIM0#

main71075-24351-C1iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,BLACK,TRIM2#

main71075-24351-E1iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,CAMEL,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-24290-C0iUZZ40200106-200508

BLACK,TRIM20

main71077-24310-A0iUZZ40200105-200407

ECRU,TRIM0#

main71077-24310-C0iUZZ40200105-200106

BLACK,TRIM20

main71077-24310-E0iUZZ40200205-200508

SADDLE TAN,TRIM21

main71077-24350-A0iUZZ40200508-200907

ECRU,TRIM0#

main71077-24350-C0iUZZ40200508-200907

BLACK,TRIM2#

main71077-24350-E0iUZZ40200508-200907

CAMEL,TRIM4#

main71077-24351-A0iUZZ40200908

ECRU,TRIM0#

main71077-24351-C0iUZZ40200908

BLACK,TRIM2#

main71077-24351-E0iUZZ40200908

CAMEL,TRIM4#

main71077-24390-A0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,ECRU,TRIM0#

main71077-24390-C0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,BLACK,TRIM2#

main71077-24390-E0iUZZ40..LHD..EUR200701-200908

BEIJING OR CHINA SPEC,CAMEL,TRIM4#

main71077-24391-A0iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,ECRU,TRIM0#

main71077-24391-C0iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,BLACK,TRIM2#

main71077-24391-E0iUZZ40..LHD..EUR200908

BEIJING OR CHINA SPEC,CAMEL,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-24050iUZZ40200105-200508

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-24030iUZZ40200105-200407

main71507-24031iUZZ40200408-200508

71881ABOARD, REAR SEATBACK

main71881-24010-C0iUZZ40200105-200508

BLACK,TRIM0#,20,21

main71881-24010-E0iUZZ40200508

DK.BROWN,TRIM4#

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-24010iUZZ40200105-200508

71892BRACKET, REAR SEATBACK SET, NO.2

main71892-24010iUZZ40200105-200508

71940AHEADREST ASSY, REAR SEAT

main71940-24070-A0×2iUZZ40200105-200508

ECRU,TRIM0#

main71940-24070-C0×2iUZZ40..ARL,EUR200205-200508

BLACK,TRIM20

main71940-24070-E0×2iUZZ40200106-200205

SADDLE TAN,TRIM2#

main71940-24090-A0×2iUZZ40200508-200907

ECRU,TRIM0#

main71940-24090-C0×2iUZZ40200508-200907

BLACK,TRIM2#

main71940-24090-E0×2iUZZ40200508-200907

CAMEL,TRIM4#

main71940-24091-A0×2iUZZ40200908

ECRU,TRIM0#

main71940-24091-C0×2iUZZ40200908

BLACK,TRIM2#

main71940-24091-E0×2iUZZ40200908

CAMEL,TRIM4#

71944APLATE, REAR SEAT HEADREST

main71944-24010-A0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

ECRU,TRIM0#,RH; SINGAPORE SPEC,ECRU,TRIM0#,RH

main71944-24010-C0iUZZ40..ARL; UZZ40..EUR,GCC200508

BLACK,TRIM2#,RH; NEW ZEALAND OR SINGAPORE SPEC,BLACK,TRIM2#,RH

main71944-24010-E0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

SADDLE TAN,TRIM21,RH; SINGAPORE SPEC,SADDLE TAN,TRIM21,RH

main71944-24010-E1iUZZ40..ARL; UZZ40..EUR,GCC200508

CAMEL,TRIM4#,RH; NEW ZEALAND OR SINGAPORE SPEC,CAMEL,TRIM4#,RH

main71944-24020-A0iUZZ40..ARL200105-200508

ECRU,TRIM0#,RH

main71944-24020-C0iUZZ40..ARL200105-200508

BLACK,TRIM20,RH

main71944-24020-E0iUZZ40..ARL200105-200508

SADDLE TAN,TRIM21,RH

main71944-24020-E1iUZZ40..ARL200508

CAMEL,TRIM4#,RH

main71945-24010-A0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

ECRU,TRIM0#,LH; SINGAPORE SPEC,ECRU,TRIM0#,LH

main71945-24010-C0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

BLACK,TRIM20,LH; SINGAPORE SPEC,BLACK,TRIM20,LH

main71945-24010-E0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

SADDLE TAN,TRIM21,LH; SINGAPORE SPEC,SADDLE TAN,TRIM21,LH

main71945-24010-E1iUZZ40..ARL; UZZ40..EUR,GCC200508

CAMEL,TRIM4#,LH; NEW ZEALAND OR SINGAPORE SPEC,CAMEL,TRIM4#,LH

main71945-24020-A0iUZZ40..ARL200105-200508

ECRU,TRIM0#,LH

main71945-24020-C0iUZZ40..ARL200508

BLACK,TRIM2#,LH

main71945-24020-E0iUZZ40..ARL200105-200508

SADDLE TAN,TRIM21,LH

main71945-24020-E1iUZZ40..ARL200508

CAMEL,TRIM4#,LH

71952COVER, REAR SEAT HEADREST PLATE

main71952-24010-A0iUZZ40..ARL; UZZ40..EUR,GCC200508

ECRU,TRIM0#,RH; NEW ZEALAND OR SINGAPORE SPEC,ECRU,TRIM0#,RH

main71952-24010-C0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

BLACK,TRIM20,RH; SINGAPORE SPEC,BLACK,TRIM20,RH

main71952-24010-E0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

SADDLE TAN,TRIM21,RH; SINGAPORE SPEC,SADDLE TAN,TRIM21,RH

main71952-24010-E1iUZZ40..ARL; UZZ40..EUR,GCC200508

CAMEL,TRIM4#,RH; NEW ZEALAND OR SINGAPORE SPEC,CAMEL,TRIM4#,RH

main71952-24020-A0iUZZ40..ARL200105-200508

ECRU,TRIM0#,RH

main71952-24020-C0iUZZ40..ARL200508

BLACK,TRIM2#,RH

main71952-24020-E0iUZZ40..ARL200105-200508

SADDLE TAN,TRIM21,RH

main71952-24020-E1iUZZ40..ARL200508

CAMEL,TRIM4#,RH

main71981-24010-A0iUZZ40..ARL; UZZ40..EUR,GCC200508

ECRU,TRIM0#,LH; NEW ZEALAND OR SINGAPORE SPEC,ECRU,TRIM0#,LH

main71981-24010-C0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

BLACK,TRIM20,LH; SINGAPORE SPEC,BLACK,TRIM20,LH

main71981-24010-E0iUZZ40..ARL; UZZ40..EUR,GCC200105-200508

SADDLE TAN,TRIM21,LH; SINGAPORE SPEC,SADDLE TAN,TRIM21,LH

main71981-24010-E1iUZZ40..ARL; UZZ40..EUR,GCC200508

CAMEL,TRIM4#,LH; NEW ZEALAND OR SINGAPORE SPEC,CAMEL,TRIM4#,LH

main71981-24020-A0iUZZ40..ARL200105-200508

ECRU,TRIM0#,LH

main71981-24020-C0iUZZ40..ARL200508

BLACK,TRIM2#,LH

main71981-24020-E0iUZZ40..ARL200105-200508

SADDLE TAN,TRIM21,LH

main71981-24020-E1iUZZ40..ARL200508

CAMEL,TRIM4#,LH

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060×2iUZZ40200508

6329724020LID, CENTER PILLAR GARNISH BELT HOLE, RH

main63297-24020

9011908A94

main90119-08A94

9017906206

main90179-06206

9017908241

main90179-08241

9046709075

main90467-09075

9046709112

main90467-09112

9046818008

main90468-18008

9163360620

main91633-60620

91635G0614

main91635-G0614

22 parts on this diagram · 1 diagram in section
