RADIATOR GRILLE

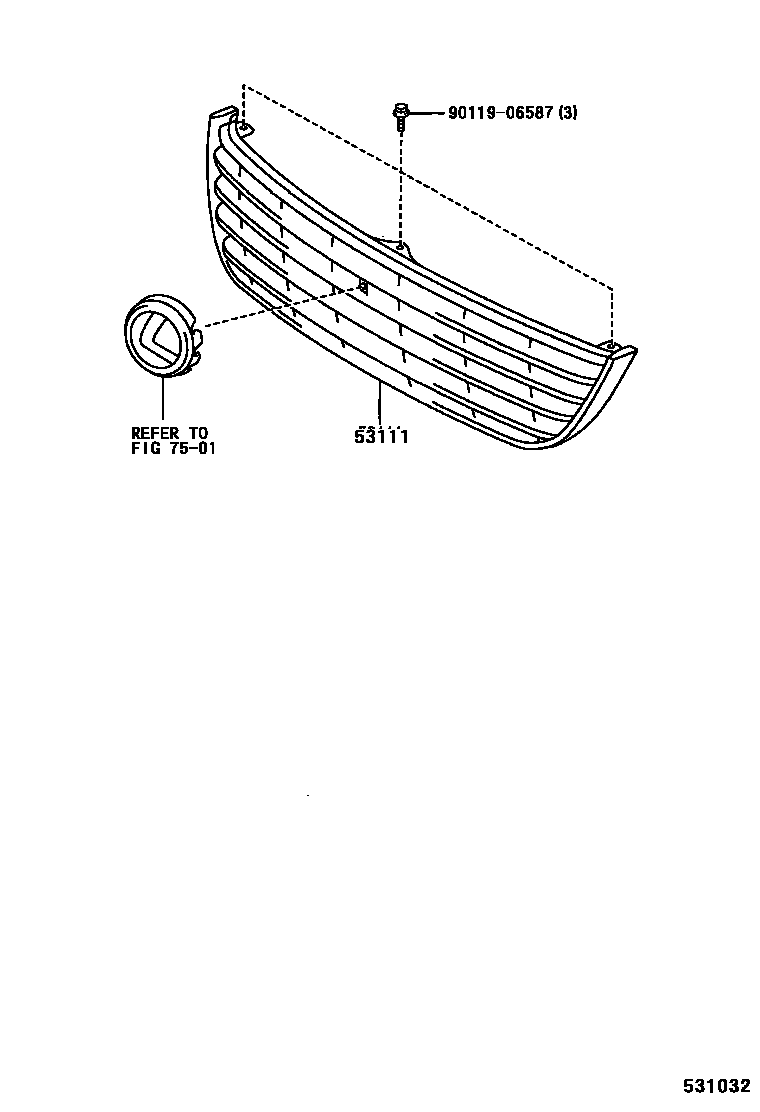

Parts diagram

53111GRILLE, RADIATOR

main53111-24040i200105-200508

main53111-24050i200508

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906587

main90119-06587

3 parts on this diagram · 3 diagrams in section
