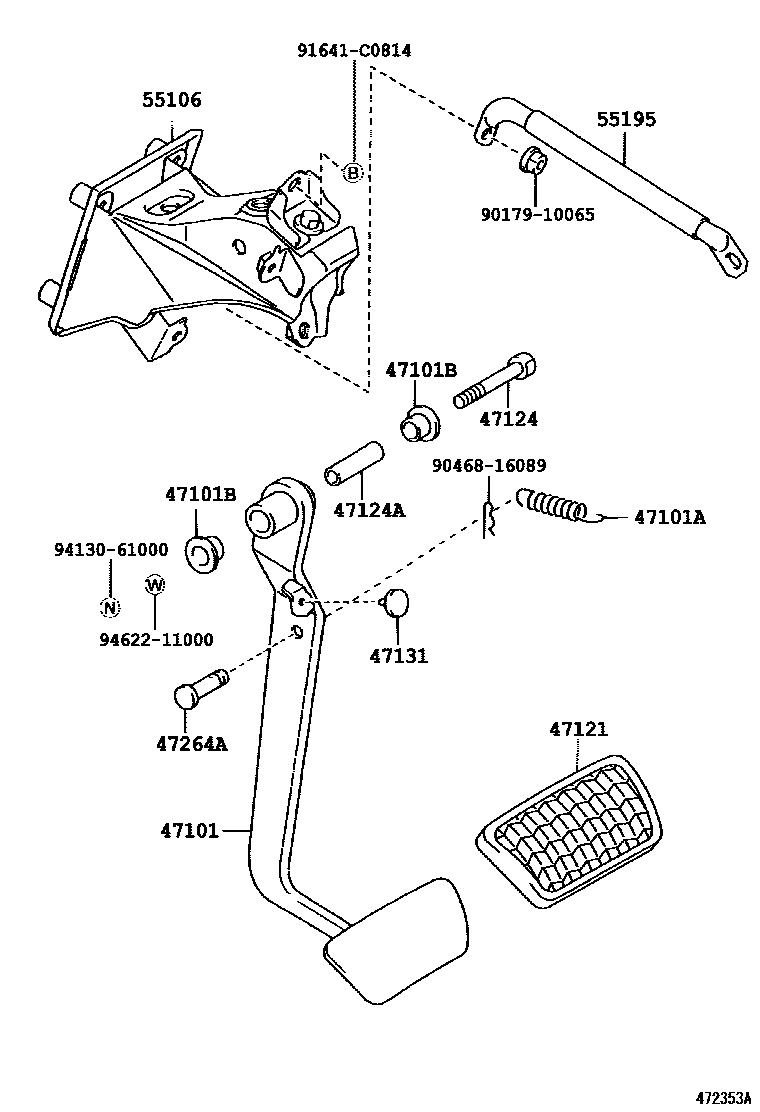

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-30441iUZZ40..RHD200105-200508

main47101-30451iUZZ40..LHD200105-200508

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07007iUZZ40200105-200508

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iUZZ40200105-200508

47121PAD, BRAKE PEDAL

main47121-50020iUZZ40200105-200508

47124SHAFT, BRAKE PEDAL

main90101-10015iUZZ40200105-200508

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iUZZ40200508

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iUZZ40200508

47264APIN(FOR PUSH ROD)

main47148-35010iUZZ40200105-200508

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30322iUZZ40..LHD200508

main55106-30332iUZZ40..RHD200105-200508

55195STAY, PEDAL BRACKET, NO.1

main55195-24020iUZZ40..LHD200105-200508

main55195-24030iUZZ40..RHD200105-200508

9017910065

main90179-10065

9046816089

main90468-16089

91641C0814

main91641-C0814

9413061000

main94130-61000

9462211000

main94622-11000

15 parts on this diagram · 1 diagram in section
