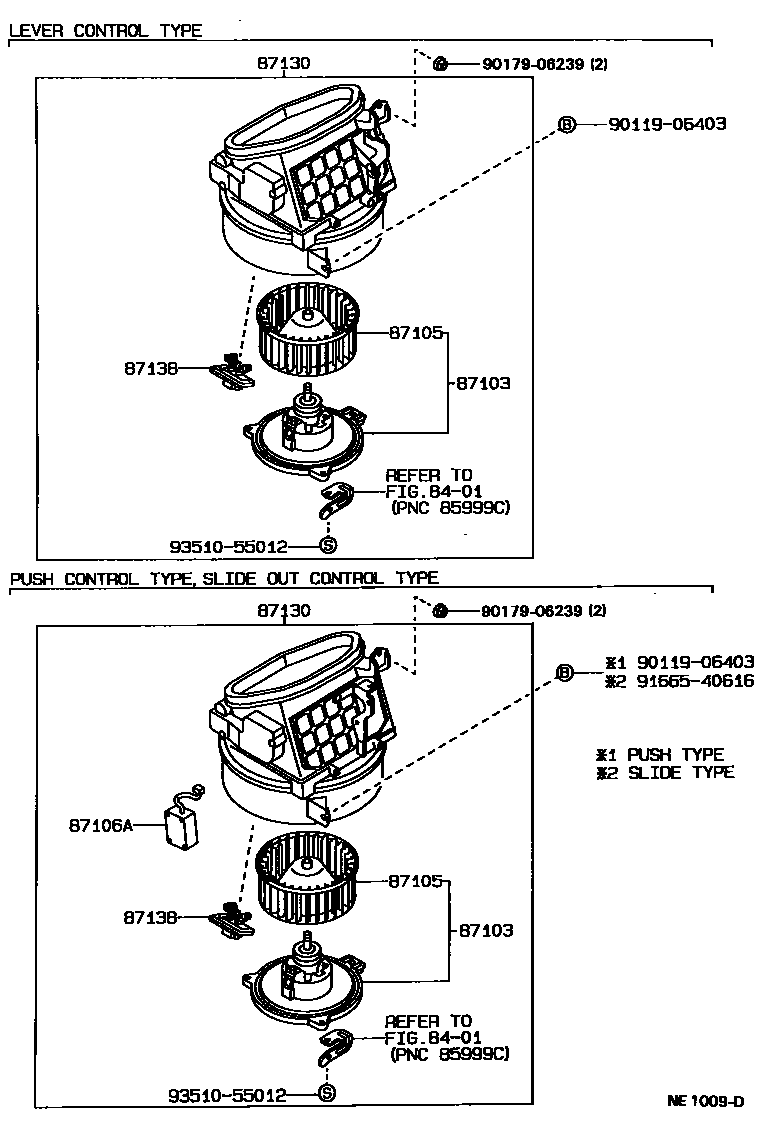

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20050i199101-199302

main87103-22010i198808-199101

main87103-22030i198808-199302

main87103-22040i198808-199608

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100i198808-199302

main87134-30050i198808-199608

87106ASERVO SUB-ASSY, DAMPER

main87106-22010i198808-198911

AIR INLET CONTROL

main87106-22020i199008-199302

MODE CONTROL; W(AUTO AIR CONDITIONER),MODE CONTROL

main87106-22030i199008-199302

AUSTRIA GRANDE PACKAGE & W(AUTO AIR CONDITIONER),AIR MIX CONTROL

main87106-22040i199008-199302

AIR INLET CONTROL

main87106-22050i199008-199302

MODE CONTROL

main87106-22060i198808-199008

AIR MIX CONTROL

main87106-22070i199008-199302

AIR MIX CONTROL; AIR MIX CONTROL,W(AUTO AIR CONDITIONER); MANUAL AIR CONDITIONER---DEALER OPT,AIR MIX CONTROL; W(AUTO AIR CONDITIONER),AIR MIX CONTROL

main87106-22080i198808-199302

AIR MIX CONTROL

main87106-22090i198911-199111

AIR INLET CONTROL

main87106-22110i199008-199302

AUSTRALIA GRAND PACKAGE & W(AUTO AIR CONDITIONER),MODE CONTROL

main87106-22120i199008-199302

MODE CONTROL

87130BLOWER ASSY, HEATER, FRONT

main87130-22181i198808-198911

W(PUSH TYPE HEATER CONTROL)

main87130-22182i198911-199302

W(PUSH TYPE HEATER CONTROL)

main87130-22211i198808-199302

main87130-22240i199008-199302

W(AUTO AIR CONDITIONER)

main87130-22250i198808-199008

W(AUTO AIR CONDITIONER)

main87130-22260i198808-199008

main87130-22270i198808-199608

87138RESISTOR, HEATER BLOWER

main87138-22060i198808-199302

main87138-22110i198808-199608

9011906403

main90119-06403

9017906239

main90179-06239

9166540616

main91665-40616

9351055012

main93510-55012

10 parts on this diagram · 5 diagrams in section
