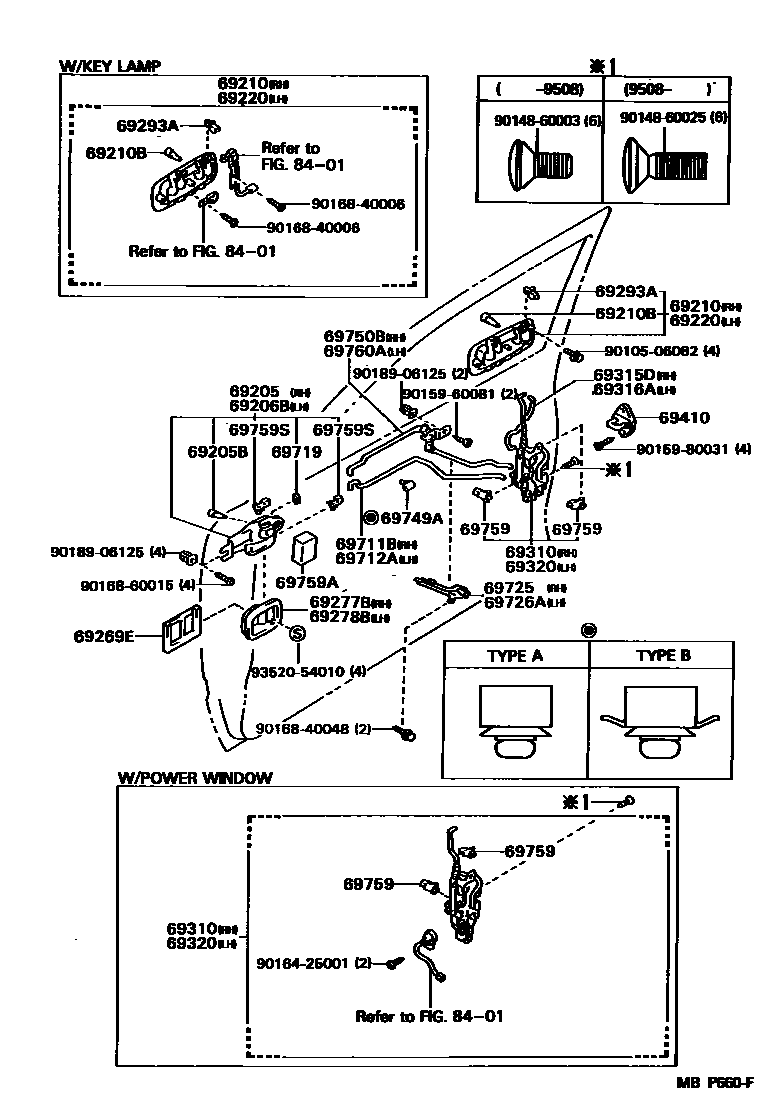

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22040-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69205-22040-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69205-22040-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69205-22050-02iGX81,LX80,MX8#,RX8#199008-199011

NEW MAROON,TRIM3#

main69205-22050-03iGX81,LX80,MX8#,RX8#199008-199011

MEDIUM GRAY,TRIM1#

main69205-22050-06iGX81,LX80,MX8#,RX8#199008-199011

SABLE,TRIM4#

main69205-22060-02iGX81,LX80,MX8#,RX8#199011-199608

NEW MAROON,TRIM3#

main69205-22060-03iGX81,LX80,MX8#,RX8#199011-199302

MEDIUM GRAY,TRIM1#

main69205-22060-06iGX81,LX80,MX8#,RX8#199011-199302

SABLE,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018×2iGX81,LX80,MX8#,RX8#198808-198809

main90541-04020×2iGX81,LX80,MX8#,RX8#198809-199608

OD=12

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22040-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69206-22040-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69206-22040-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69206-22050-02iGX81,LX80,MX8#,RX8#199008-199011

NEW MAROON,TRIM3#

main69206-22050-03iGX81,LX80,MX8#,RX8#199008-199011

MEDIUM GRAY,TRIM1#

main69206-22050-06iGX81,LX80,MX8#,RX8#199008-199011

SABLE,TRIM4#

main69206-22060-02iGX81,LX80,MX8#,RX8#199011-199608

NEW MAROON,TRIM3#

main69206-22060-03iGX81,LX80,MX8#,RX8#199011-199302

MEDIUM GRAY,TRIM1#

main69206-22060-06iGX81,LX80,MX8#,RX8#199011-199302

SABLE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22120iMX83,RX80..GL,XL;GX81,LX80,MX81,RX81..LHD198808-199608

main69210-22130iGX81..RHD198808-199302

main69210-22140iMX83..GLX198808-199008

main69210-22150-01iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,BLACK,202

main69210-22150-03iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER SILVER 3 M.,176

main69210-22150-12iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,RED MICA,3H4

main69210-22150-14iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,LIGHT BLUE M. M.,8G2

main69210-22150-16iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,DK. BROWN M. M.,4L4

main69210-22150-18iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER WHITE 4,050

main69210-22150-22iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,RED M.M,3J9

main69210-22150-23iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,GRAY M. M.,170

main69210-22150-24iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,BLUE M.,869

main69210-22150-26iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,BEIGE M.M,4J1

main69210-22160-02iMX83199008-199302

RED M.M,3J9

main69210-22160-06iMX83199008-199302

BEIGE M,4J1

main69210-22160-14iMX83199008-199302

LIGHT BLUE M.M,8G2

main69210-22160-18iMX83199008-199302

SUPER WHITE 4,050

main69210-22160-24iMX83199008-199302

BLUE M,869

main69210-22160-33iMX83199008-199302

SUPER SILVER 2 M,176

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iGX81,LX80,MX8#,RX8#198808-199608

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22110iGX81..4FC;LX80,MX81,RX8#..GL,XL199008-199608

main69220-22120iMX81..GD198808-199302

main69220-22130iGX81,MX81..LHD..GEN198808-199302

main69220-22140-01iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,BLACK,202

main69220-22140-03iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER SILVER 3 M.,176

main69220-22140-12iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,RED MICA,3H4

main69220-22140-14iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,LIGHT BLUE M. M.,8G2

main69220-22140-16iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,DK. BROWN M. M.,4L4

main69220-22140-18iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER WHITE 4,050

main69220-22140-22iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,RED M.M,3J9

main69220-22140-23iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,GRAY M. M.,170

main69220-22140-24iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,BLUE M,869

main69220-22140-26iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,BEIGE M.M,4J1

main69220-22150-02iMX83199008-199302

RED M.M,3J9

main69220-22150-06iMX83199008-199302

BEIGE M,4J1

main69220-22150-14iMX83199008-199302

LIGHT BLUE M.M,8G2

main69220-22150-18iMX83199008-199302

SUPER WHITE 4,050

main69220-22150-24iMX83199008-199302

BLUE M,869

main69220-22150-33iMX83199008-199302

SUPER SILVER 2 M,176

69269ESEAL, FRONT DOOR INSIDE HANDLE

main69269-22050iGX81,LX80,MX8#,RX8#198906-199608

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22060-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69277-22060-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69277-22060-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69277-22070-02iGX81,LX80,MX8#,RX8#199008-199608

NEW MAROON,TRIM3#

main69277-22070-03iLX80;MX81,RX8#..XL199210-199302

MEDIUM GRAY,TRIM1#

main69277-22070-06iGX81,LX80,MX8#,RX8#199008-199302

SABLE,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22020-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69278-22020-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69278-22020-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69278-22030-02iGX81,LX80,MX8#,RX8#199008-199608

NEW MAROON,TRIM3#

main69278-22030-03iGX81,LX80,MX8#,RX8#199008-199210

MEDIUM GRAY,TRIM1#

main69278-22030-06iGX81,LX80,MX8#,RX8#199008-199302

SABLE,TRIM4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGX81,LX80,MX8#,RX8#198808-199608

RH

main69293-12060iGX81,LX80,MX8#,RX8#198808-199608

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-22300iGX81,RX80..RHD..(GL,GLX)198808-199008

main69030-22301iGX81,RX80..RHD..(GL,GLX)199008-199302

main69030-22310iGX81,MX81,RX8#..LHD..(GL,GLX)..GEN; LX80198808-199008

(*PW)

main69030-22311iGX81,RX80..LHD..(GL,GLX); LX80199008-199302

(*PW)

main69030-22340iMX83198808-199008

main69030-22341iMX83199008-199302

main69030-22350iMX81,RX8#..(GD,GL)..V198808-199008

main69030-22351iMX81,RX81..GD,GL199008-199608

main69310-22390iRX80..RHD..XL198808-199008

main69310-22391iRX80..RHD..XL199008-199302

main69310-22400iLX80;RX80..LHD..XL..GEN198808-199008

main69310-22401iLX80;RX80..LHD..XL199008-199302

main69310-22410iMX81,RX8#..XL..V198808-199008

main69310-22411iMX81,RX81..XL199008-199608

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-22020iGX81,LX80,MX8#,RX8#198808-199608

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-22030iGX81,LX80,MX8#,RX8#198808-199608

69320LOCK ASSY, FRONT DOOR, LH

main69040-22360iGX81,RX80..RHD..(GL,GLX)198808-199008

main69040-22361iGX81,RX80..RHD..(GL,GLX)199008-199302

main69040-22370iGX81,MX81,RX8#..LHD..(GL,GLX)..GEN; LX80198808-199008

(*PW)

main69040-22371iGX81,RX80..LHD..(GL,GLX); LX80199008-199302

(*PW)

main69040-22400iMX83198808-199008

main69040-22401iMX83199008-199302

main69040-22410iMX81,RX8#..(GD,GL)..V198808-199008

main69040-22411iMX81,RX81..GD,GL199008-199608

main69320-22370iRX80..RHD..XL198808-199008

main69320-22371iRX80..RHD..XL199008-199302

main69320-22380iLX80;RX80..LHD..XL..GEN198808-199008

main69320-22381iLX80;RX80..LHD..XL199008-199302

main69320-22390iMX81,RX8#..XL..V198808-199008

main69320-22391iMX81,RX81..XL199008-199608

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070×2iGX81,LX80,MX8#,RX8#198808-199302

main69410-87001×2iRX81199302-199608

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-22070iGX81,LX80,MX8#,RX8#198808-199008

main69711-22080iGX81,LX80,MX8#,RX8#199008-199608

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-22070iGX81,LX80,MX8#,RX8#198808-199008

main69712-22080iGX81,LX80,MX8#,RX8#199008-199608

69719CUSHION, DOOR LOCK CONTROL

main69719-22010iGX81,LX80,MX8#,RX8#198808-199008

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-22010iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-22010iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20030×2iGX81,LX80,MX8#,RX8#198808-199008

main69749-50010×2iGX81,LX80,MX8#,RX8#199008-199608

TYPE B

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-22020iGX81,LX80,MX8#,RX8#198808-199008

main69750-22030iGX81,LX80,MX8#,RX8#199008-199012

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iGX81,LX80,MX8#,RX8#198808-199608

NATURAL

main69759-24020iGX81,LX80,MX8#,RX8#198808-199608

BLUE

main69759-24050×2iGX81,LX80,MX8#,RX8#198808-199608

GREEN

main69759-24060×2iGX81,LX80,MX8#,RX8#198808-199608

GRAY

69759ASILENCER, SEPARATION DOOR LOCK LINK

main69759-12060×2iGX81,LX80..LHD; GX81,MX83..4FC; MX81,RX81; RX80199008-199608

main69759-20120×2iGX81,LX80,MX8#,RX8#198808-199008

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iGX81,LX80,MX8#,RX8#198808-199608

LH

main69759-24070×2iGX81,LX80,MX8#,RX8#198808-199608

RH

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-22020iGX81,LX80,MX8#,RX8#198808-199008

main69760-22030iGX81,LX80,MX8#,RX8#199008-199012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506082

main90105-06082

9014860003

main90148-60003

9014860025

main90148-60025

9015960081

main90159-60081

9015980031

main90159-80031

9016425001

main90164-25001

9016840006

main90168-40006

9016840048

main90168-40048

9016860015

main90168-60015

9018906125

main90189-06125

9352054010

main93520-54010

38 parts on this diagram · 1 diagram in section
