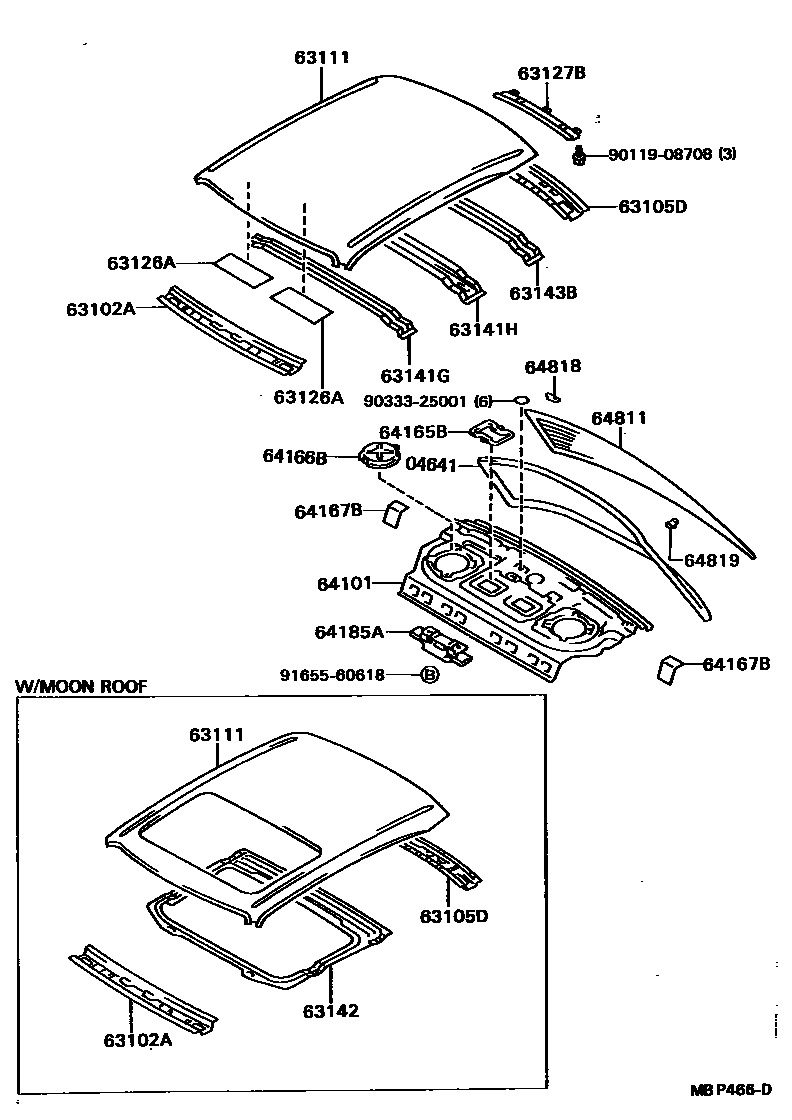

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010×2iGX81,LX80,MX8#,RX8#199008-199608

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22150iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF)

main63102-22160iGX81,MX8#..GD,GLX198808-199008

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-22020iGX81,LX80,MX8#,RX8#198808-199608

63111PANEL, ROOF

main63111-22170iGX81,LX80,MX8#,RX8#198808-199608

main63111-22180iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010×2iGX81,LX80,MX8#,RX8#198808-199608

63127BDAMPER, BACK WINDOW UPPER FREME

main63127-22010iRX81199008-199608

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-22100iGX81,LX80,MX8#,RX8#198808-199608

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-22120iGX81,LX80,MX8#,RX8#198808-199608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-22040iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22100iGX81,LX80,MX8#,RX8#198808-199608

64101PANEL SUB-ASSY, UPPER BACK

main64101-22260iMX83198808-199302

main64101-22280iGX81,LX80,MX81,RX8#198808-199408

main64101-22380iRX81199408-199608

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22020×2iGX81,LX80,MX8#,RX8#198808-199608

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-22040×2iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN198808-199108

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-22040×2iLX80,MX81,RX8#..GL,XL198808-199302

64185ADAMPER, UPPER BACK, NO.1

main64185-22010iRX81..V198909-199608

64811GLASS, BACK WINDOW

main64811-22680iRX81199302-199608

*EHTT,T=3.5

main64811-22690iGX81,LX80,MX81,RX8#..GL,GLX; MX81..GD199008-199302

*EHT,T=3.5,BRONZE

main64811-22700iGX81,LX80,MX81,RX8#..GL,GLX,XL198808-199302

*TT,T=3.5

main64811-22710iMX81,RX81..GL199008-199302

*TEM,T=3.5,BRONZE

64818SPACER, BACK WINDOW GLASS

main64818-22060×9iGX81,LX80,MX8#,RX8#198808-199608

GREEN

main64818-22070×9iGX81,LX80,MX8#,RX8#198808-199608

ORANGE

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-22040×4iGX81,LX80,MX8#,RX8#198808-199608

9011908708

main90119-08708

9033325001

main90333-25001

9165560618

main91655-60618

21 parts on this diagram · 2 diagrams in section
