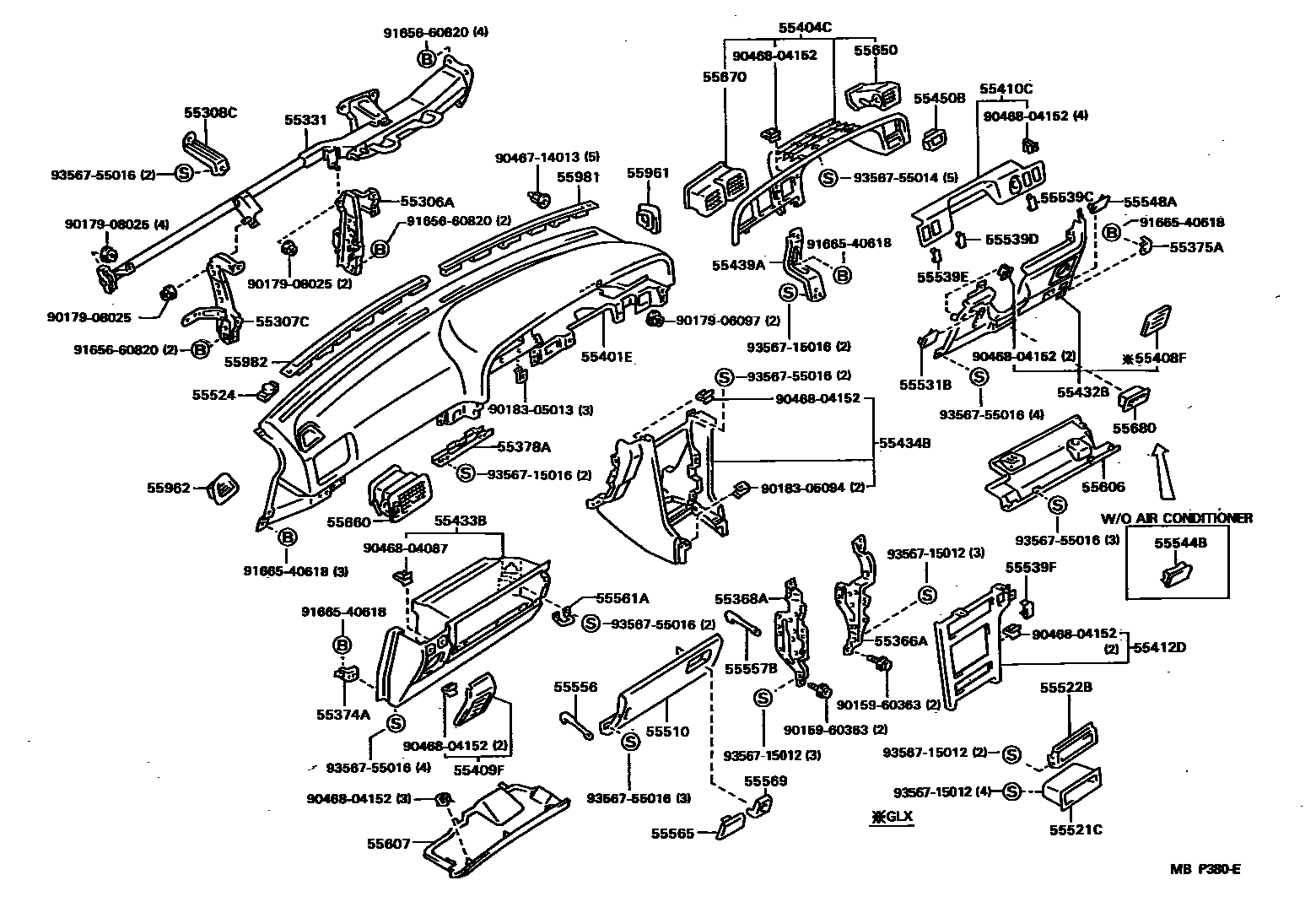

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22160iGX81,MX83,RX80..RHD198808-199302

main55306-22170iGX81,LX80,MX81,RX8#..LHD198808-199608

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-22210iGX81,MX83,RX80..RHD198808-199008

main55307-22220iGX81,LX80,MX81,RX8#..LHD198808-199608

main55307-22240iGX81,MX83,RX80..RHD199008-199302

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-22120iGX81,LX80,MX8#,RX8#198808-199608

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22110iGX81,MX83,RX80..RHD198808-199302

main55330-22120iGX81,LX80,MX81,RX8#..LHD198808-199608

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-22060iGX81,MX83,RX80..RHD198808-199302

main55366-22070iGX81,LX80,MX81,RX8#..LHD198808-199608

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-22040iGX81,MX83,RX80..RHD198808-199302

main55368-22050iGX81,LX80,MX81,RX8#..LHD198808-199608

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-22050iGX81,MX83,RX80..RHD198808-199302

main55374-22060iGX81,LX80,MX81,RX8#..LHD198808-199608

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-22050iGX81,MX83,RX80..RHD198808-199302

main55375-22060iGX81,LX80,MX81,RX8#..LHD198808-199608

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22070iGX81,MX83,RX80..RHD198808-199302

main55378-22080iGX81,LX80,MX81,RX8#..LHD198808-199608

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22240-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55401-22240-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55401-22240-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55401-22240-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55401-22250-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55401-22250-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55401-22250-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55401-22250-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-22100iGX81,MX83,RX80..RHD198808-199008

main55404-22110iGX81,LX80,MX81,RX8#..LHD198808-199008

main55404-22130iGX81,MX83,RX80..RHD199008-199302

main55404-22150iGX81,LX80,MX81,RX8#..LHD199008-199608

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-22090-02iGX81,MX83..RHD..GLX198808-199302

NEW MAROON,TRIM3#

main55408-22090-03iGX81,MX83..4FC199008-199302

MEDIUM GRAY,TRIM1#

main55408-22090-04iGX81,MX83..RHD..GLX198808-199008

DARK BLUE,TRIM8#

main55408-22090-06iGX81,MX83..RHD..GLX198808-199302

SABLE,TRIM4#

main55408-22100-02iGX81,MX81..LHD..(GD,GLX)198808-199302

NEW MAROON,TRIM3#

main55408-22100-03iGX81,MX81..LHD..(GD,GLX)199008-199302

MEDIUM GRAY,TRIM1#

main55408-22100-04iGX81,MX81..LHD..(GD,GLX)198808-199008

DARK BLUE,TRIM8#

main55408-22100-06iGX81,MX81..LHD..(GD,GLX)198808-199302

SABLE,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-22120-02iGX81,MX83..RHD..GLX198808-199302

NEW MAROON,TRIM3#

main55409-22120-03iGX81,MX83..4FC199008-199302

MEDIUM GRAY,TRIM1#

main55409-22120-04iGX81,MX83..RHD..GLX198808-199008

DARK BLUE,TRIM8#

main55409-22120-06iGX81,MX83..RHD..GLX198808-199302

SABLE,TRIM4#

main55409-22130-02iGX81,MX81..LHD..(GD,GLX)198808-199302

NEW MAROON,TRIM3#

main55409-22130-03iGX81,MX81..LHD..(GD,GLX)199008-199302

MEDIUM GRAY,TRIM1#

main55409-22130-04iGX81,MX81..LHD..(GD,GLX)198808-199008

DARK BLUE,TRIM8#

main55409-22130-06iGX81,MX81..LHD..(GD,GLX)198808-199302

SABLE,TRIM4#

main55473-22090-02iMX83,RX80..RHD..(GL,XL)198808-199302

NEW MAROON,TRIM3#

main55473-22090-03iRX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55473-22090-04iMX83,RX80..RHD..(GL,XL)198808-199008

DARK BLUE,TRIM8#

main55473-22090-06iMX83,RX80..RHD..(GL,XL)198808-199302

SABLE,TRIM4#

main55473-22100-02iLX80,MX81,RX8#..LHD..(GL,XL)198808-199608

NEW MAROON,TRIM3#

main55473-22100-03iLX80,MX81,RX8#..LHD..(GL,XL)199008-199302

MEDIUM GRAY,TRIM1#

main55473-22100-04iLX80,MX81,RX8#..LHD..(GL,XL)198808-199008

DARK BLUE,TRIM8#

main55473-22100-06iLX80,MX81,RX8#..LHD..(GL,XL)198808-199302

SABLE,TRIM4#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-22180iGX81,MX83,RX80..RHD198808-199302

main55410-22190iGX81,LX80,MX81,RX8#..LHD198808-199608

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22180iGX81,MX83,RX80..RHD198808-199008

main55412-22190iGX81,LX80,MX81,RX8#..LHD198808-199008

main55412-22240iGX81,MX83,RX80..RHD199008-199302

main55412-22260iGX81,LX80,MX81,RX8#..LHD199008-199608

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55045-22040-02iGX81,MX83..RHD..GLX198808-199302

NEW MAROON,TRIM3#

main55045-22040-03iGX81,MX83..4FC199008-199302

MEDIUM GRAY,TRIM1#

main55045-22040-04iGX81,MX83..RHD..GLX198808-199008

DARK BLUE,TRIM8#

main55045-22040-06iGX81,MX83..RHD..GLX198808-199302

SABLE,TRIM4#

main55046-22010-02iGX81,MX81..LHD..(GD,GLX)198808-199302

NEW MAROON,TRIM3#

main55046-22010-03iGX81,MX81..LHD..(GD,GLX)199008-199302

MEDIUM GRAY,TRIM1#

main55046-22010-04iGX81,MX81..LHD..(GD,GLX)198808-199008

DARK BLUE,TRIM8#

main55046-22010-06iGX81,MX81..LHD..(GD,GLX)198808-199302

SABLE,TRIM4#

main55432-22250-02iMX83,RX80..RHD..(GL,XL)198808-199302

NEW MAROON,TRIM3#

main55432-22250-03iRX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55432-22250-04iMX83,RX80..RHD..(GL,XL)198808-199008

DARK BLUE,TRIM8#

main55432-22250-06iMX83,RX80..RHD..(GL,XL)198808-199302

SABLE,TRIM4#

main55432-22260-02iLX80,MX81,RX8#..LHD..(GL,XL)198808-199608

NEW MAROON,TRIM3#

main55432-22260-03iLX80,MX81,RX8#..LHD..(GL,XL)199008-199302

MEDIUM GRAY,TRIM1#

main55432-22260-04iLX80,MX81,RX8#..LHD..(GL,XL)198808-199008

DARK BLUE,TRIM8#

main55432-22260-06iLX80,MX81,RX8#..LHD..(GL,XL)198808-199302

SABLE,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55045-22070-02iMX81..GD198808-199302

NEW MAROON,TRIM3#

main55045-22070-03iMX81..GD; RX80..LHD..GL;GX81,MX81,RX81..LHD..(GL,GLX,XL)199008-199302

MEDIUM GRAY,TRIM1#; W(COOL BOX),MEDIUM GRAY,TRIM1#

main55045-22070-04iMX81..GD; RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL)198808-199008

DARK BLUE,TRIM8#; W(COOL BOX),DARK BLUE,TRIM8#

main55045-22070-06iMX81..GD; RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL)198808-199302

SABLE,TRIM4#; W(COOL BOX),SABLE,TRIM4#

main55433-22110-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55433-22110-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55433-22110-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55433-22110-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55433-22120-02iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199608

NEW MAROON,TRIM3#

main55433-22120-03iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)199008-199302

MEDIUM GRAY,TRIM1#

main55433-22120-04iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199008

DARK BLUE,TRIM8#

main55433-22120-06iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199302

SABLE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-22090-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55434-22090-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55434-22090-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55434-22090-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55434-22100-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55434-22100-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55434-22100-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55434-22100-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

main55439-22040iGX81,MX83,RX80..RHD198808-199302

main55439-22050iGX81,LX80,MX81,RX8#..LHD198808-199608

55450BBOX ASSY, COIN

main55450-22050iRX80..RHD..XL199008-199302

main55450-22060iMX81,RX8#..LHD..XL198808-199008

main55450-22070iRX80..RHD..XL198808-199008

main55450-22080iMX81,RX8#..LHD..XL199008-199608

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22120-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55550-22120-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55550-22120-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55550-22120-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55550-22130-02iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199608

NEW MAROON,TRIM3#

main55550-22130-03iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)199008-199302

MEDIUM GRAY,TRIM1#

main55550-22130-04iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199008

DARK BLUE,TRIM8#

main55550-22130-06iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)198808-199302

SABLE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iGX81,LX80,MX81,RX8#198808-199008

55522BCOVER, RADIO TUNER OPENING

main55522-32010iGX81,LX80,MX81,RX8#..GEN198808-199302

55524COVER, SWITCH BACE HOLE

main55524-22020-02iGX81,MX83..4FC;LX80,MX81,RX8#199008-199608

NEW MAROON,TRIM3#

main55524-22020-03iGX81,MX83..4FC;LX80,MX81,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main55524-22020-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main55524-22020-06iGX81,MX83..4FC;LX80,MX81,RX8#199008-199302

SABLE,TRIM4#

55531BCOVER, CHOKE KNOB HOLE

main55531-22140-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55531-22140-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55531-22140-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55531-22140-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

55539CCOVER, SPARE SWITCH HOLE

main55539-22060iGX81,MX8#,RX8#198808-199608

55539DCOVER, SPARE SWITCH HOLE

main55539-22100iGX81,MX83,RX80..RHD198808-199302

55539ECOVER, SPARE SWITCH HOLE

main55539-22100iGX81,MX83,RX80..RHD198808-199302

55539FCOVER, SPARE SWITCH HOLE

main55539-22100iGX81,RX80..RHD198808-199302

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-22030-02iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN198808-199008

NEW MAROON,TRIM3#

main55544-22030-04iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN198808-199008

DARK BLUE,TRIM8#

main55544-22030-06iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN198808-199008

SABLE,TRIM4#

main55544-22030-13iLX80,RX80;MX81,RX81..XL;GX81,MX83..4FC199008-199302

MEDIUM GRAY,TRIM1#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-22040-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55548-22040-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55548-22040-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55548-22040-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22090iGX81,LX80,MX8#,RX8#198808-199608

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-22010iGX81,LX80,MX8#,RX8#198808-199608

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22030iGX81,LX80,MX8#,RX8#198808-199608

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main55565-22020-03iGX81,LX80,MX8#,RX8#199008-199106

MEDIUM GRAY,TRIM1#

main55565-22020-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main55565-22020-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

main55565-22020-B0iGX81,LX80,MX8#,RX8#199106-199302

MEDIUM GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main55569-22030-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main55569-22030-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main55569-22030-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22110iGX81,MX83,RX80..RHD198808-199302

main55606-22120iGX81,LX80,MX81,RX8#..LHD198808-199608

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22070iGX81,MX83,RX80..RHD198808-199302

main55607-22080-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55607-22080-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55607-22080-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55607-22080-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22120iGX81,MX83,RX80..RHD198808-199302

main55650-22130iGX81,LX80,MX81,RX8#..LHD198808-199608

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22120-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55660-22120-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55660-22120-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55660-22120-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55660-22130-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55660-22130-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55660-22130-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55660-22130-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22140iGX81,MX83,RX80..RHD198808-199302

main55670-22150iGX81,LX80,MX81,RX8#..LHD198808-199608

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-16iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

main55680-14030-22iGX81,LX80,MX8#,RX8#198808-199408

NEW MAROON,TRIM3#

main55680-14030-24iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main55680-14030-B0iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main55680-14030-C0iRX81199408-199608

BLACK,TRIM3#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22060-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55961-22060-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55961-22060-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55961-22060-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55961-22070-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55961-22070-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55961-22070-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55961-22070-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22060-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55962-22060-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55962-22060-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55962-22060-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55962-22070-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55962-22070-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55962-22070-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55962-22070-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-22010-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main55981-22010-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55981-22010-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main55981-22010-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main55981-22020-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main55981-22020-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55981-22020-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main55981-22020-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-22010-02iGX81,MX83,RX80..RHD198808-198904

NEW MAROON,TRIM3#

main55982-22010-04iGX81,MX83,RX80..RHD198808-198904

DARK BLUE,TRIM8#

main55982-22010-06iGX81,MX83,RX80..RHD198808-198904

SABLE,TRIM4#

main55982-22011-02iGX81,MX83,RX80..RHD198904-199302

NEW MAROON,TRIM3#

main55982-22011-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main55982-22011-04iGX81,MX83,RX80..RHD198904-199008

DARK BLUE,TRIM8#

main55982-22011-06iGX81,MX83,RX80..RHD198904-199302

SABLE,TRIM4#

main55982-22020-02iGX81,LX80,MX81,RX8#..LHD198808-198904

NEW MAROON,TRIM3#

main55982-22020-04iGX81,LX80,MX81,RX8#..LHD198808-198904

DARK BLUE,TRIM8#

main55982-22020-06iGX81,LX80,MX81,RX8#..LHD198808-198904

SABLE,TRIM4#

main55982-22021-02iGX81,LX80,MX81,RX8#..LHD198904-199608

NEW MAROON,TRIM3#

main55982-22021-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main55982-22021-04iGX81,LX80,MX81,RX8#..LHD198904-199008

DARK BLUE,TRIM8#

main55982-22021-06iGX81,LX80,MX81,RX8#..LHD198904-199302

SABLE,TRIM4#

9015960363

main90159-60363

9017906097

main90179-06097

9017908025

main90179-08025

9018305013

main90183-05013

9018305094

main90183-05094

9046714013

main90467-14013

9046804087

main90468-04087

9046804152

main90468-04152

9165660820

main91656-60820

9166540618

main91665-40618

9356715012

main93567-15012

9356715016

main93567-15016

9356755014

main93567-55014

9356755016

main93567-55016

60 parts on this diagram · 2 diagrams in section
