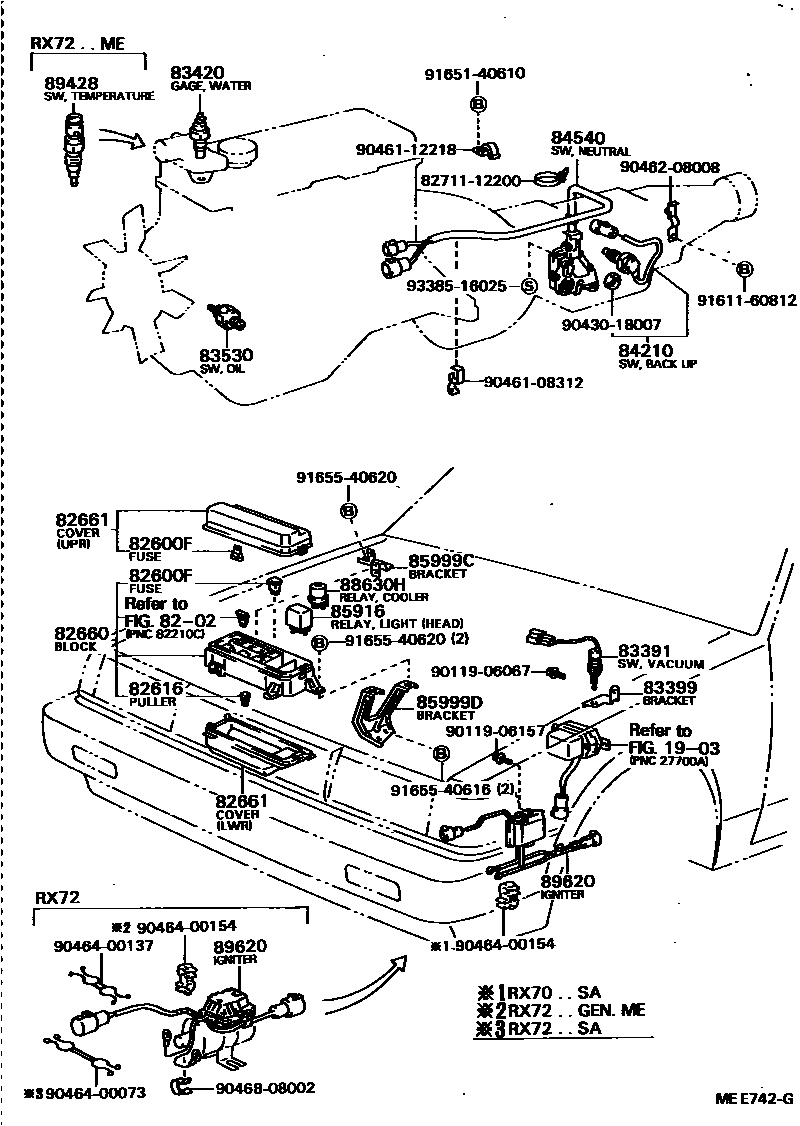

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1903ALTERNATOR

→ Go to FIG 19-03

8202WIRING & CLAMP

→ Go to FIG 82-02

82600FFUSE, FUSE BLOCK

main90982-09002×2iGX71,LX7#,MX7#,RX7#198408-198808

10A,10A

main90982-09003×13iGX71,LX7#,MX7#,RX7#,YX70198408-198808

15A,15A

main90982-09004×3iGX71,LX7#,MX7#,RX7#,YX70198408-198808

20A,YELLOW,20A

main90982-09005×8iGX71,LX7#,MX7#,RX7#,YX70198408-198808

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-22230iGX71,MX73,RX70198408-198411

main82660-22240iGX71,MX7#,RX7#,YX70198411-198808

main82660-22260iLX7#198408-198808

82661COVER, RELAY BLOCK, NO.1

main82661-22100iMX73..SA198608-198808

UPR

main82661-22101iLX70,MX73..ARL,GEN,ME198608-198808

UPR

main82661-22110iRX7#,YX70198408-198808

LWR

main82661-22120iGX71,LX7#,MX7#198408-198608

LWR

main82661-22121iGX71,LX70,MX73198608-198808

LWR

main82661-22130iRX70,72,YX70..SA198608-198808

UPR

main82661-22131iRX7#..GEN,ME198608-198808

UPR

main82661-22160iGX71,LX7#,MX7#..EUR198408-198608

UPR

main82661-22170iGX71..SA198608-198808

UPR

main82661-22171iGX71..GEN198608-198808

UPR

83391SWITCH, VACUUM

main83391-12091iYX70198502-198808

main83391-22060iLX7#..EUG198408-198608

83399BRACKET, VACUUM SWITCH

main83399-22011iYX70198502-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRX70198408-198502

main83530-14020iMX73..ARL198508-198808

main83530-14030iRX7#,YX70198502-198808

main83530-30050iGX71,MX72;MX73..LHD..EFI198508-198808

main83530-30060iLX7#198502-198808

main83530-36011iLX7#198408-198502

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

84540SWITCH ASSY, NEUTRAL START

main84540-22170iGX71,LX7#,MX7#..4FC198408-198808

main84540-22180iRX70,72..4FC198408-198808

85916RELAY, LIGHT CONTROL

main90987-02002iGX71,LX7#,MX7#,RX7#,YX70198408-198808

TAIL,MARUKO

main90987-02004iGX71,LX7#,MX7#,RX7#,YX70198408-198808

TAIL,DENSO

main90987-02006iGX71,LX7#,MX7#,RX7#,YX70198408-198808

HEAD

85999BRACKET, COMBINATION RELAY

main85999-22160iGX71,MX73,RX70,72,YX70..RHD198408-198808

main85999-22180iGX71,LX7#,MX7#,RX7#..LHD198408-198808

85999CBRACKET, RELAY, NO.3

main85999-22140iGX71,MX73..SA198608-198808

main85999-22141iGX71,MX73..ARL,GEN,ME198608-198808

main85999-22150iRX7#,YX70198408-198808

main85999-22240iLX7#198408-198709

main85999-22300iLX70198709-198808

85999DBRACKET, RELAY, NO.4

main85999-22130iRX7#,YX70198408-198808

main85999-22230iLX7#198408-198808

88630HRELAY ASSY, COOLER

main90987-02004iGX71,MX73,RX70,72..ME198504-198808

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRX72..ME198608-198808

89620IGNITER ASSY

main89620-22340iMX73..TWC..(EUR,GEN,SA)198408-198808

main89620-22360iGX71..EUG198408-198608

main89620-22380iMX7#..EFI198408-198508

main89620-22390iRX70..SA198502-198705

main89620-30220iGX71..EFI198408-198808

main89620-60080iRX72..SA198705-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906067

main90119-06067

9011906157

main90119-06157

9043018007

main90430-18007

9046108312

main90461-08312

9046112218

main90461-12218

9046208008

main90462-08008

9046400073

main90464-00073

9046400137

main90464-00137

9046400154

main90464-00154

9046808002

main90468-08002

9161160812

main91611-60812

9165140610

main91651-40610

9165540616

main91655-40616

9165540620

main91655-40620

9338516025

main93385-16025

35 parts on this diagram · 10 diagrams in section
