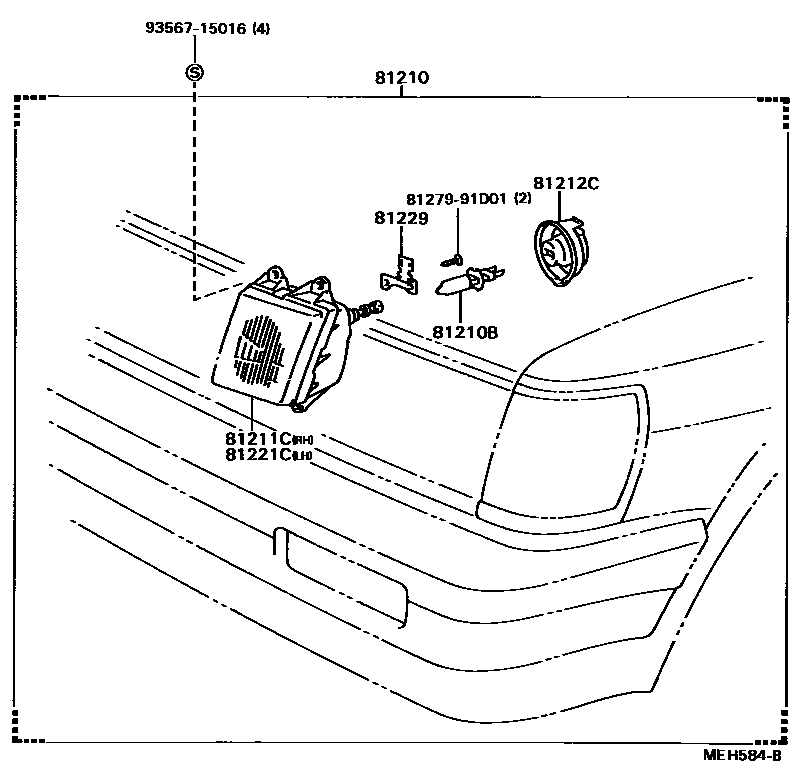

FOG LAMP

81210LAMP ASSY, FOG

main81210-22040iMX73,RX72..HT198608-198808

RH

main81220-22030iMX73,RX72..HT198608-198808

LH

81210BBULB, FOG LAMP

main90981-13031×2iMX73,RX72..HT198608-198808

12V 55W,HALOGEN,12V 55W

81211CLAMP UNIT, FOG LAMP, RH

main81211-22040iMX73,RX72..HT198608-198808

81212CCOVER, FOG LAMP

main90075-99002×2iMX73,RX72..HT198608-198808

81221CLAMP UNIT, FOG LAMP, LH

main81221-22030iMX73,RX72..HT198608-198808

81229BRACKET, FOG LAMP

main81219-22020iMX73,RX72..HT198608-198808

RH

main81229-22010iMX73,RX72..HT198608-198808

LH

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9356715016

main93567-15016

8 parts on this diagram · 1 diagram in section
