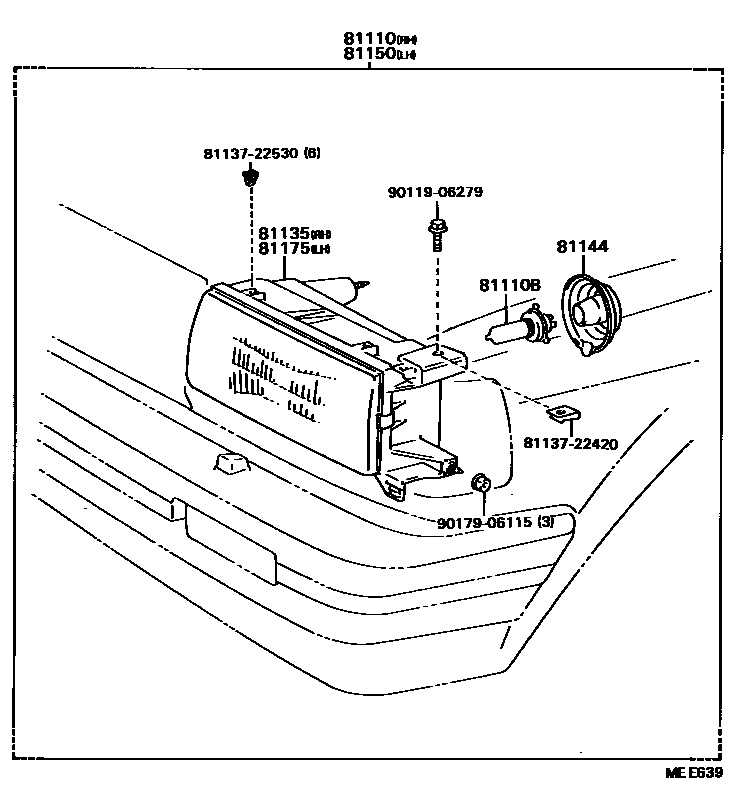

HEADLAMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

81110HEADLAMP ASSY, RH

main81110-22471iRX70,72..LHD..XL..GEN; RX70,72..RHD..XL..GEN198608-198808

LH TRAFFIC SPEC(*46)

main81110-22481iGX71,LX70,RX70,72..LHD..GEN; GX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

LH TRAFFIC SPEC(*46),HALOGEN; WHITE HALOGEN

main81110-22491iRX70,72..LHD..XL..GEN198608-198808

main81110-22501iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

WHITE HALOGEN

main81110-22511iGX71,LX70,RX7#..LHD..GEN198608-198808

YELLOW HALOGEN

main81110-22541iMX73,RX72..HT198608-198808

main81110-80411iGX71,MX73,RX70..(SED,WG)..ME198408-198508

main81110-80412iRX70..LHD..XL..GEN; RX70..RHD..XL..GEN198408-198608

LH TRAFFIC SPEC(*46)

main81110-80413iGX71,LX70,RX70..LHD..GEN; GX71,MX73,RX70..RHD198408-198608

LH TRAFFIC SPEC(*46),HALOGEN; WHITE HALOGEN

main81110-80414iRX70..LHD..XL..GEN198408-198608

main81110-80415iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

WHITE HALOGEN

main81110-80416iGX71,LX70,RX70..LHD..GEN198408-198608

YELLOW HALOGEN

main81110-80417iGX71,MX73,RX70..(SED,WG)..ME198508-198608

main81110-80458iGX71,MX73,RX70..HT198504-198608

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iRX70,72..XL..GEN198408-198808

12V 45/40W,WHITE,12V 45/40W

main90981-13015×2iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

12V 60/55W,*HAL *WH,12V 60/55W,WHITE HALOGEN

main90981-13016×2iGX71,LX70,RX7#..LHD..GEN198408-198808

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW HALOGEN

main90981-13032×2iGX71,MX73,RX70..(SED,WG)..ME198508-198608

12V 65/45W,*HAL,*WH,12V 65/45W

81135UNIT ASSY, HEADLAMP, RH

main81130-22471iRX70,72..LHD..XL..GEN; RX70,72..RHD..XL..GEN198608-198808

LH TRAFFIC SPEC(*46)

main81130-22481iGX71,LX70,RX70,72..LHD..GEN; GX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

HALOGEN; LH TRAFFIC SPEC(*46),HALOGEN

main81130-22491iRX70,72..LHD..XL..GEN198608-198808

main81130-22501iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

HALOGEN

main81130-22541iMX73,RX72..HT198608-198808

main81135-22470iRX70..LHD..XL..GEN; RX70..RHD..XL..GEN198408-198608

LH TRAFFIC SPEC(*46)

main81135-22480iGX71,LX70,RX70..LHD..GEN; GX71,MX73,RX70,YX70..RHD198408-198608

HALOGEN; LH TRAFFIC SPEC(*46),HALOGEN

main81135-22490iRX70..LHD..XL..GEN198408-198608

main81135-22500iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

HALOGEN

main81135-22520iGX71,MX73,RX70..(SED,WG)..ME198508-198608

main81135-22540iGX71,MX73,RX70..HT198504-198608

81144COVER, HEADLAMP, NO.1

main81139-20730×2iGX71,MX73,RX70,72..HT198504-198808

81150HEADLAMP ASSY, LH

main81150-22471iRX70,72..LHD..XL..GEN; RX70,72..RHD..XL..GEN198608-198808

LH TRAFFIC SPEC(*46)

main81150-22481iGX71,LX70,RX70,72..LHD..GEN; GX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

LH TRAFFIC SPEC(*46),HALOGEN; WHITE HALOGEN

main81150-22491iRX70,72..LHD..XL..GEN198608-198808

main81150-22501iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

WHITE HALOGEN

main81150-22511iGX71,LX70,RX7#..LHD..GEN198608-198808

YELLOW HALOGEN

main81150-22541iMX73,RX72..HT198608-198808

main81150-80403iGX71,MX73,RX70..(SED,WG)..ME198408-198508

main81150-80404iRX70..LHD..XL..GEN; RX70..RHD..XL..GEN198408-198608

LH TRAFFIC SPEC(*46)

main81150-80405iGX71,MX73,RX70,72,YX70..SA198608-198808

WHITE HALOGEN

main81150-80406iRX70..LHD..XL..GEN198408-198608

main81150-80407iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

WHITE HALOGEN

main81150-80408iGX71,LX70,RX70..LHD..GEN198408-198608

YELLOW HALOGEN

main81150-80409iGX71,MX73,RX70..(SED,WG)..ME198508-198608

main81150-80448iGX71,MX73,RX70..HT198504-198608

81175UNIT ASSY, HEADLAMP, LH

main81170-22471iRX70,72..LHD..XL..GEN; RX70,72..RHD..XL..GEN198608-198808

LH TRAFFIC SPEC(*46)

main81170-22481iGX71,LX70,RX70,72..LHD..GEN; GX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

HALOGEN; LH TRAFFIC SPEC(*46),HALOGEN

main81170-22491iRX70,72..LHD..XL..GEN198608-198808

main81170-22501iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

HALOGEN

main81170-22541iRX72..GT198608-198808

main81175-22470iRX70..LHD..XL..GEN; RX70..RHD..XL..GEN198408-198608

LH TRAFFIC SPEC(*46)

main81175-22480iGX71,LX70,RX70..LHD..GEN; GX71,MX73,RX70,YX70..RHD198408-198608

HALOGEN; LH TRAFFIC SPEC(*46),HALOGEN

main81175-22490iRX70..LHD..XL..GEN198408-198608

main81175-22500iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

HALOGEN

main81175-22520iGX71,MX73,RX70..(SED,WG)..ME198508-198608

main81175-22540iGX71,MX73,RX70..HT198504-198608

8113722420PROTECTOR, HEADLAMP, NO.2 RH

main81137-22420

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9011906279

main90119-06279

9017906115

main90179-06115

10 parts on this diagram · 6 diagrams in section
