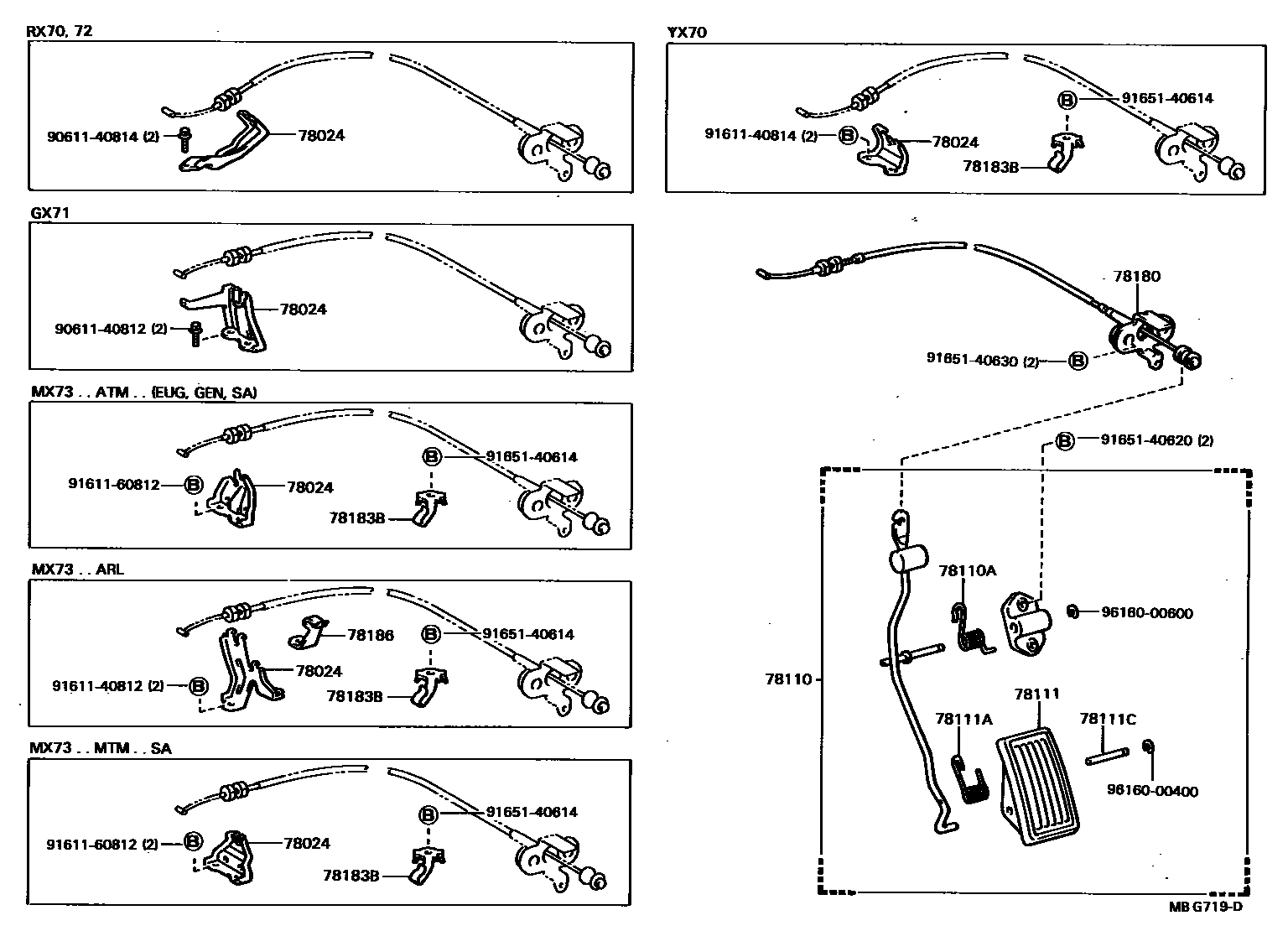

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14010iGX71..EUG198408-198608

main78024-22010iGX71..LHD..EFI198408-198808

main78024-22030iRX70,72..RHD198408-198808

main78024-22060iRX70..LHD198408-198608

main78024-22090iRX7#..LHD198608-198808

main78024-24010iMX73..5F..SA198502-198808

main78024-30020iGX71..RHD198408-198808

main78024-30030iMX73..RHD..4FC..(EUR,GEN,SA)198408-198808

main78024-30041iLX7#..EUG198408-198608

main78184-22090iGX71..ME198408-198608

W/AUTO DRIVE

main78184-30070iMX73..EFI..GEN198411-198808

main78184-95J00iYX70198502-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22200iGX71,RX7#..LHD..MTM198408-198808

main78120-22210iGX71..EUG198408-198808

main78120-22220iGX71,MX73,RX70,72,YX70..RHD..5F198408-198808

main78120-22230iGX71,MX73,RX70,72..SED..RHD..4FC198408-198808

main78120-22240iGX71,RX70,72..LHD..4FC198408-198808

main78120-22250iLX7#..5F198408-198808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iMX73..5F..EUG;GX71,LX7#,MX7#,RX70,72..4FC198408-198808

main90508-26054iLX70..5F198408-198808

78111PEDAL, ACCELERATOR

main78111-12100iGX71,LX7#,MX7#,RX7#,YX70198408-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGX71,LX7#,MX7#,RX7#,YX70198408-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX71,LX7#,MX7#,RX7#,YX70198408-198808

78180WIRE ASSY, ACCELERATOR

main78180-22440iMX73..LHD..4FC..EUG198408-198608

main78180-22450iMX7#..LHD..EFI198408-198808

main78180-22460iGX71..LHD..EFI198408-198808

main78180-22470iLX7#..EUG198408-198608

main78180-22480iRX70..LHD198408-198608

main78180-22481iRX7#..LHD198608-198808

main78180-22490iGX71..EUG198408-198608

main78180-22520iLX70198408-198808

main78180-22530iGX71..RHD198408-198808

main78180-22580iRX70,72..RHD198408-198808

main78180-22600iYX70198502-198808

main78180-22610iMX73..EFI..GEN198408-198808

main78180-22620iMX73..RHD..4FC..(EUR,SA)198408-198808

main78180-22630iGX71..ME198408-198608

W/AUTO DRIVE

main78180-22640iMX73..5F..SA198502-198808

main78180-22890iMX73..GD,GT,GTX198412-198808

W/AUTO DRIVE

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22040iMX73,YX70..RHD198408-198808

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30040iMX73..EFI..(ARL,EUR)198408-198808

9061140812

main90611-40812

9061140814

main90611-40814

9161140812

main91611-40812

9161140814

main91611-40814

9161160812

main91611-60812

9165140614

main91651-40614

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 5 diagrams in section
