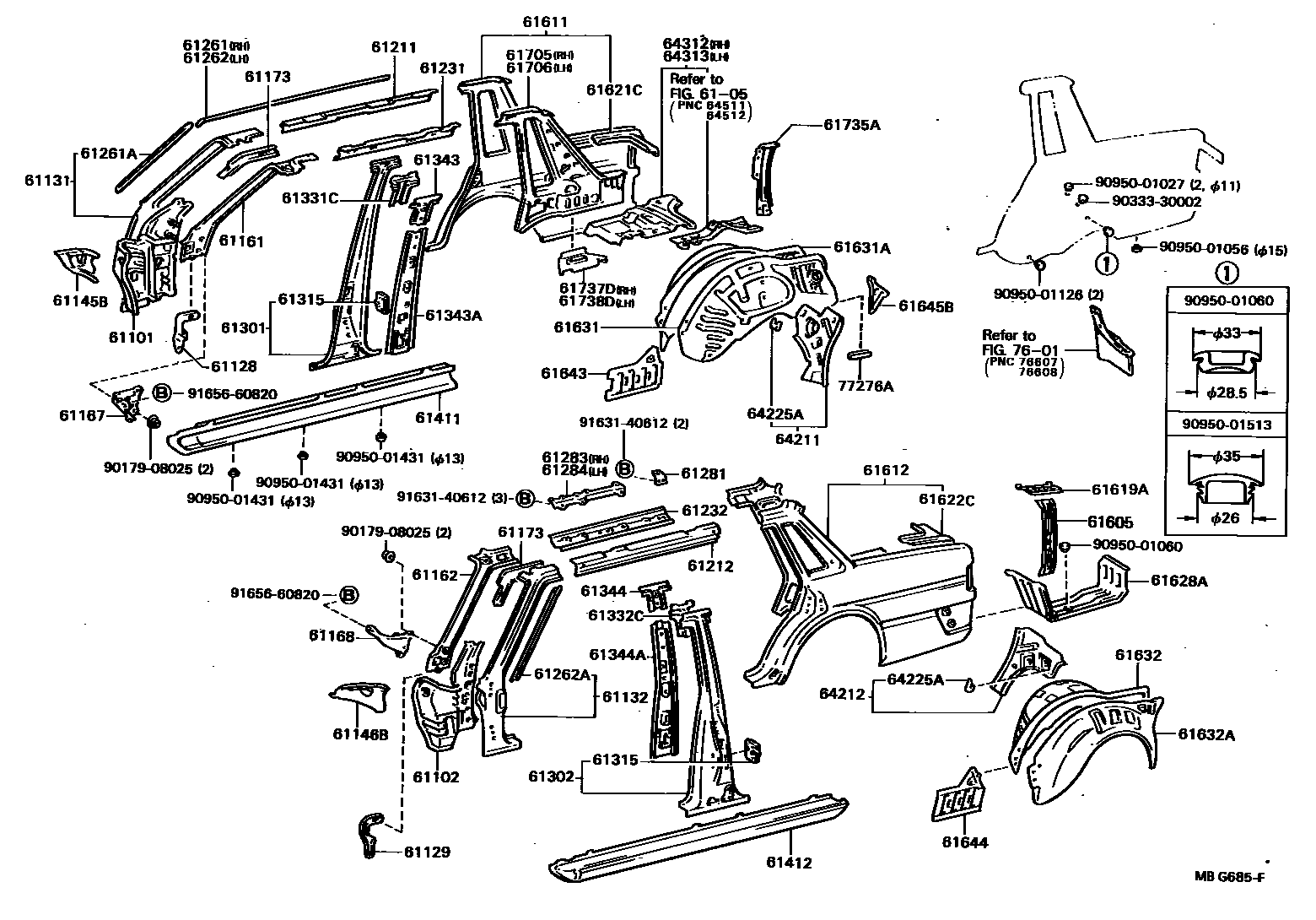

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-22100iGX71,MX73,RX70,72,YX70..RHD198408-198808

main61101-22110iGX71,LX7#,MX7#,RX7#..LHD198408-198808

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-22120iGX71,MX73,RX70,72,YX70..RHD198408-198808

main61102-22130iGX71,LX7#,MX7#,RX7#..LHD198408-198808

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61125-22020iGX71,MX73,RX70,72,YX70..RHD198408-198808

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61126-22020iGX71,LX7#,MX7#,RX7#..LHD198408-198808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22905iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main61131-22908iGX71,MX73,RX70..HT198504-198605

main61131-22909iGX71,MX73,RX70,72..HT198605-198808

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22905iGX71,LX70,MX7#,RX7#,YX70..SED,WG198408-198808

main61132-22907iGX71,MX73,RX70..HT198504-198605

main61132-22908iGX71,MX73,RX70..HT198605-198808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-22060iMX73..RHD;GX71,LX70,RX70,YX70..GEN,SA198408-198506

main61161-22070iGX71,LX7#,MX73,RX7#,YX70..SED,WG198506-198808

main61161-22110iGX71,MX73,RX70,72..HT198504-198808

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-22070iMX73..RHD;GX71,LX70,RX70,YX70..GEN,SA198408-198506

main61162-22080iGX71,LX71,MX73,RX70..SED..LHD..(EUR,ME)198408-198506

main61162-22110iGX71,MX73,RX70,72..HT198504-198808

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-22070iGX71,LX7#,MX7#,RX7#..LHD198408-198808

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-22080iGX71,MX73,RX70,72,YX70..RHD198408-198808

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-22040iGX71,LX70,MX7#,RX7#,YX70..SED,WG198408-198808

RH

main61173-22070iGX71,MX73,RX70,72..HT198504-198808

RH

main61174-22030iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

LH

main61174-22060iGX71,MX73,RX70,72..HT198504-198808

LH

61211RAIL, ROOF SIDE, OUTER RH

main61211-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61211-22090iGX71,MX73,RX70,72..HT198504-198808

main61211-23010iLX70,MX72,RX70,72..WG198411-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61212-22090iGX71,MX73,RX70,72..HT198504-198808

main61212-23010iLX70,MX72,RX70,72..WG198411-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-22120iGX71,LX7#,MX73,RX70,YX70..SED198408-198507

main61231-22130iGX71,LX70,RX70..SED..GEN; GX71,LX71,MX73,RX70..SED..(GD,GL,GLX)..(ARL,EUR,ME)198408-198507

W/SUN ROOF

main61231-22180iGX71,MX73,RX70,72..HT198504-198808

main61231-23010iRX70,72..WG..(GEN,SA)198411-198808

main61231-23020iLX70,MX72,RX70,72..WG..(EUR,ME)198411-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-22120iGX71,LX7#,MX73,RX70,YX70..SED198408-198507

main61232-22130iGX71,LX7#,MX73,RX7#,YX70..SED198507-198808

main61232-22170iGX71,MX73,RX70,72..HT198504-198808

main61232-23010iRX70,72..WG..(GEN,SA)198411-198808

main61232-23020iLX70,MX72,RX70,72..WG..(EUR,ME)198411-198808

61261CHANNEL, ROOF DRIP, RH

main61261-22060iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61261-22080iGX71,MX73,RX70,72..HT198504-198808

main61261-23010iLX70,MX72,RX70,72..WG198411-198808

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-22020iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main61263-22030iGX71,MX73,RX70..HT198504-198605

main61263-22031iGX71,MX73,RX70,72..HT198605-198808

61262CHANNEL, ROOF DRIP, LH

main61262-22060iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61262-22080iGX71,MX73,RX70,72..HT198504-198808

main61262-23010iLX70,MX72,RX70,72..WG198411-198808

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-22030iGX71,LX70,MX7#,RX7#,YX70..SED,WG198408-198808

main61264-22040iGX71,MX73,RX70..HT198504-198605

main61264-22041iGX71,MX73,RX70,72..HT198605-198808

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-22020×2iMX73..GLX..ARL198408-198808

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-22020iGX71,LX71,MX73,RX70..SED..(GD,GL,GLX)..(EUR,ME)198408-198608

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-22020iGX71,LX71,MX73,RX70..SED..(GD,GL,GLX)..(EUR,ME)198408-198608

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22905iGX71,MX73,RX70..(SED,WG)..ME198408-198508

EXCL/SAUDI ARABIA

main61301-22906iGX71,LX7#,MX7#,RX70,YX70..EUR,GEN,SA198604-198608

main61301-22908iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

main61301-91195iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22905iGX71,LX7#,MX7#,RX7#,YX70..EUR,GEN,SA198408-198808

main61302-22906iMX73..ARL198408-198808

main61302-22908iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

main61302-91195iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020×2iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-22020iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-22020iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22080iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main61341-22110iGX71,MX73,RX70,72..HT198504-198808

61343APILLAR, CENTER BODY, INNER RH

main61343-22900iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198508

main61343-22902iGX71,LX7#,MX7#..EUR198408-198508

main61343-22904iGX71,MX73,RX70..HT198504-198608

main61343-22905iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

main61343-22908iMX73,RX72..HT198608-198808

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22100iLX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main61342-22130iGX71,MX73,RX70,72..HT198504-198808

61344APILLAR, CENTER BODY, INNER LH

main61344-22900iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(GEN,ME,SA)198408-198508

main61344-22902iMX73..ARL198408-198608

main61344-22904iGX71,MX73,RX70..HT198504-198608

main61344-22905iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

main61344-22908iMX73,RX72..HT198608-198808

61411PANEL, ROCKER, OUTER RH

main61401-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61412PANEL, ROCKER, OUTER LH

main61402-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61605BRACE SUB-ASSY, QUARTER PANEL, LH

main61609-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

61611PANEL, QUARTER, RH

main61601-22550iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

W/RADIO

main61601-22560iGX71,LX70,RX7#..SED..GEN; GX71,LX71,MX73,RX70,72,YX70..SED..(GL,STD,XL)..(EUR,SA)198408-198808

W/O RADI0; W/O RADIO

main61601-22640iGX71,MX73,RX70,72..HT198504-198808

main61601-23903iLX70,MX72,RX70,72..WG198411-198707

W/RADIO

main61601-23904iLX70,MX72,RX70,72..WG..(EUR,GEN,SA)198411-198707

W/O RADIO

main61601-23909iRX72..WG198707-198808

W/RADIO

main61601-23910iRX72..WG..(GEN,SA)198707-198808

W/O RADIO

61612PANEL, QUARTER, LH

main61602-22925iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61602-22931iGX71,MX73,RX70,72..HT198504-198808

main61602-23903iLX70,MX72,RX70,72..WG198411-198707

main61602-23908iRX72..WG198707-198808

61619AREINFORCEMENT, QUARTER PANEL

main61619-22040iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61619-22060iGX71,MX73,RX70,72..HT198504-198808

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-22060iGX71,RX7#,YX70..SED198710-198808

main61621-22080iGX71,MX73,RX70,72..HT198504-198808

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-22060iGX71,LX70,MX73,RX7#,YX70..SED198710-198808

main61622-22080iGX71,MX73,RX70,72..HT198504-198808

61628AEXTENSION, QUARTER PANEL, LOWER LH

main61628-22020iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main61628-23020iLX70,MX72,RX70,72..WG198411-198808

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22914iLX70,RX70,72,YX70..HT,SED198408-198808

main61607-22915iGX71,LX71,MX73,RX71,73198408-198808

main61607-23010iLX70,MX72,RX70,72..WG198411-198808

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22906iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22913iLX70,RX70,72,YX70..HT,SED198408-198808

main61608-22914iGX71,LX71,MX73,RX71,73198408-198808

main61608-23010iLX70,MX72,RX70,72..WG198411-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22100iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22020iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22903iRX70..SED..XL;GX71,MX73,RX70..SED..(GD,GL)..ME198408-198507

main61705-22904iGX71,LX7#,MX73,RX7#,YX70..SED198507-198808

main61705-22906iGX71,MX73,RX70,72..HT198504-198808

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22903iRX70..SED..XL;GX71,MX73,RX70..SED..(GD,GL)..ME198408-198507

main61706-22904iGX71,LX7#,MX73,RX7#,YX70..SED198507-198808

main61706-22906iGX71,MX73,RX70,72..HT198504-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-22030iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61735-23010iLX70,MX72,RX70,72..WG198411-198808

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-22020iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61737-23010iLX70,MX72,RX70,72..WG198411-198808

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-22020iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main61738-23010iLX70,MX72,RX70,72..WG198411-198808

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22900iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64211-22901iGX71,MX73,RX70,72..HT198504-198808

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22900iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64212-22901iGX71,MX73,RX70,72..HT198504-198808

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-22020×2iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64312BRACKET, PACKAGE TRAY, RH

main64312-22903iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64312-22905iGX71,MX73,RX70,72..HT198504-198808

64313BRACKET, PACKAGE TRAY, LH

main64313-22903iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64313-22905iGX71,MX73,RX70,72..HT198504-198808

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

77276APROTECTOR, FUEL HOSE

main77276-23010iLX70,MX72,RX70,72..WG198505-198808

9017908025

main90179-08025

9033330002

main90333-30002

9095001027

main90950-01027

9095001056

main90950-01056

9095001060

main90950-01060

9095001126

main90950-01126

9095001431

main90950-01431

9095001513

main90950-01513

9163140612

main91631-40612

9165660820

main91656-60820

72 parts on this diagram · 5 diagrams in section
