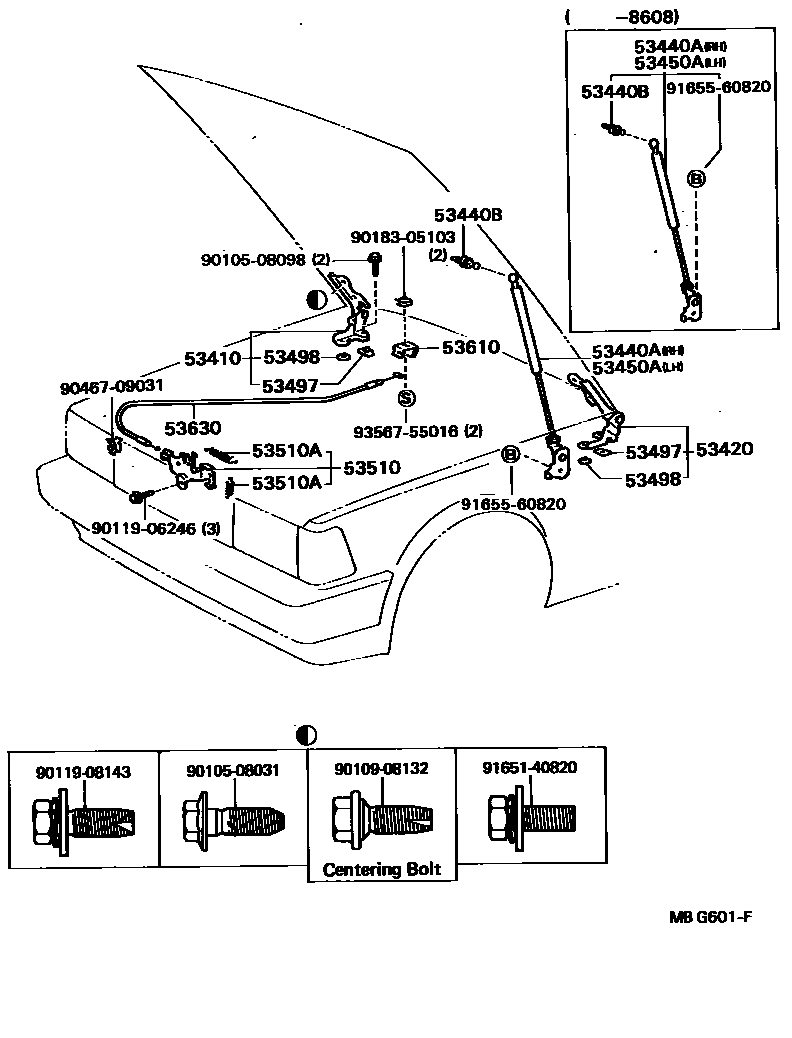

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53420HINGE ASSY, HOOD, LH

main53420-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53440ASUPPORT ASSY, HOOD, RH

main53440-22020iGX71,LX70,MX73,RX7#,YX70198608-198808

main53440-29035iGX71,LX7#,MX7#,RX70,YX70198408-198608

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53450ASUPPORT ASSY, HOOD, LH

main53450-22010iGX71,LX70,MX73,RX7#,YX70198608-198808

main53450-29035iGX71,LX7#,MX7#,RX70,YX70198408-198608

53497PAD, HOOD HINGE, NO.1

main53497-17010×2iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=1.0

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=1.0

53510LOCK ASSY, HOOD

main53510-22140iGX71,MX73,RX70,YX70..RHD198408-198608

main53510-22170iGX71,LX7#,MX7#,RX7#..(SED,WG)..LHD198408-198808

main53510-22190iGX71,MX73,RX70..HT198504-198608

main53510-22210iMX73,RX72..HT198608-198808

main53510-22230iGX71,MX73,YX70..SA198709-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iGX71,LX7#,MX7#,RX7#,YX70198408-198808

WD=0.9,CW=26.5,WD=0.9

main90506-18024iGX71,LX7#,MX7#,RX7#,YX70198408-198808

CW=18,WD=1.8

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-20060-12iGX71,LX7#,MX7#,RX70198408-198603

MAROON,RED/MAROON

main53601-20060-15iGX71,LX70,MX73,RX7#,YX70198612-198808

BEIGE,DARK BEIGE

main53601-20060-23iGX71,MX73,RX70,72,YX70..SA198608-198808

GRAY,GRAY

main53601-20060-25iGX71,MX73,RX70,YX70..SA198608-198612

BEIGE,BEIGE

main53601-20060-32iGX71,LX7#,MX7#,RX7#198603-198808

MAROON,MAROON

main53601-20060-44iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22110iGX71,MX73,RX70,YX70..RHD198408-198608

main53630-22130iGX71,LX7#,MX7#,RX7#..LHD198408-198808

main53630-22150iGX71,MX73,RX70,72,YX70..RHD198608-198808

9010508031

main90105-08031

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9011908143

main90119-08143

9018305103

main90183-05103

9046709031

main90467-09031

9165140820

main91651-40820

9165560820

main91655-60820

9356755016

main93567-55016

21 parts on this diagram · 1 diagram in section
