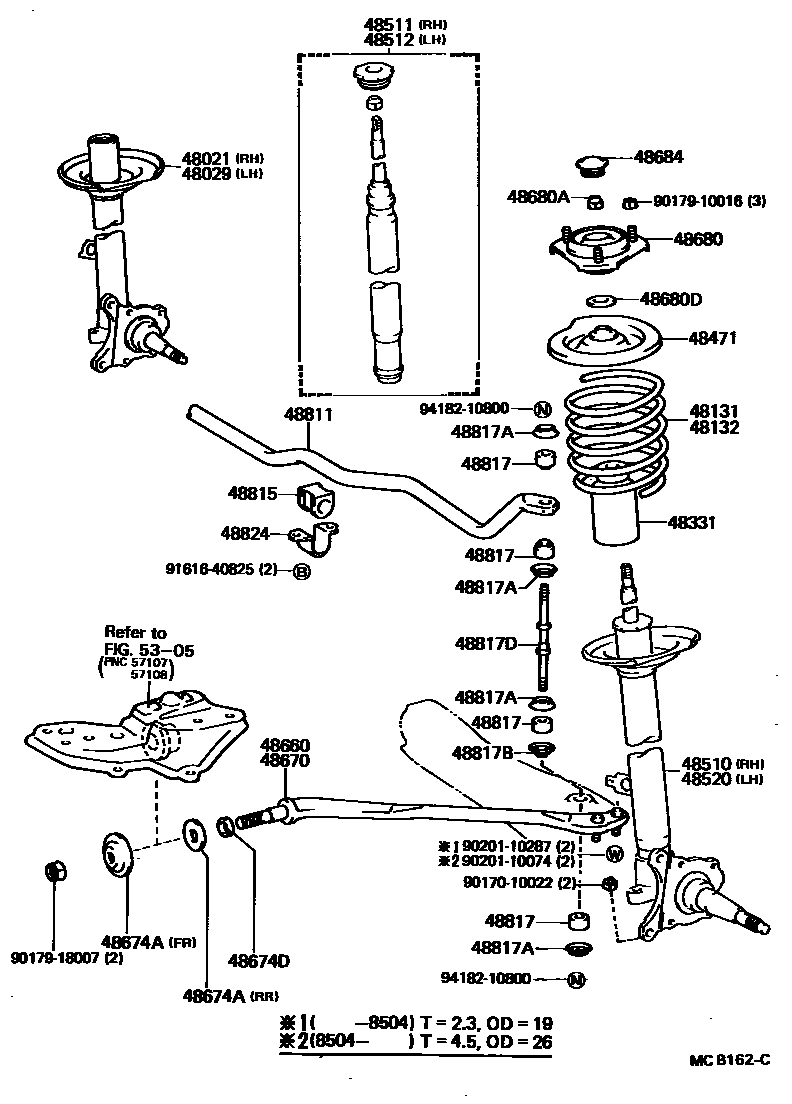

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

main48021-22080iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

main48029-22080iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

48131SPRING, FRONT COIL, RH

main48131-2A190iYX70198502-198808

main48131-2A210iGX71,RX70..SED..LHD..(GEN,ME)198408-198808

main48131-2A220iGX71,RX70..SED..RHD198408-198808

HARSH ROAD PACKAGE

main48131-2A220iRX72..WG..ME198411-198808

main48131-2A220iRX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48131-2A230iRX72..HT,SED198608-198808

HARSH ROAD PACKAGE

main48131-2A230iLX70..GEN198408-198808

main48131-2A250iMX73..LHD..EUR198408-198808

main48131-2A260iLX7#..EUG198408-198808

main48131-2A270iLX70..5F..GEN198502-198808

TAXI SPEC

main48131-2A270iLX70..GEN198408-198808

HARSH ROAD PACKAGE

main48131-2A310iGX71..EUG198408-198608

main48131-2A320iRX70..WG..LHD..GEN198411-198808

HARSH ROAD PACKAGE

main48131-2A320iRX70..WG..ME198411-198608

main48131-2A330iRX70..WG..RHD..GEN198411-198808

HARSH ROAD PACKAGE

main48131-2A390iRX70,72..WG..LHD..GEN198411-198808

48132SPRING, FRONT COIL, LH

main48131-2A180iYX70198502-198808

main48131-2A210iGX71,RX70,72..SED..RHD198408-198808

main48131-2A220iGX71,RX70..SED..LHD..(GEN,ME)198408-198808

HARSH ROAD PACKAGE

main48131-2A230iRX72..SED198411-198808

main48131-2A230iRX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48131-2A240iLX70..GEN198408-198808

main48131-2A240iRX72..HT,SED198608-198808

HARSH ROAD PACKAGE

main48131-2A250iMX73..RHD..(ARL,EUR)198408-198808

main48131-2A260iMX73..LHD..EUR198408-198808

main48131-2A270iLX7#..EUG198408-198808

main48131-2A300iLX70..GEN198408-198808

HARSH ROAD PACKAGE

main48131-2A300iLX70..5F..GEN198502-198808

TAXI SPEC

main48131-2A320iRX70,72..WG..LHD..GEN198411-198808

HARSH ROAD PACKAGE

main48131-2A330iRX70,72..WG..LHD..GEN198411-198808

HARSH ROAD PACKAGE

main48131-2A330iRX70..WG..ME198411-198608

main48131-2A340iRX70..WG..ME198411-198608

HARSH ROAD PACKAGE

main48131-2A390iRX70,72..WG..RHD198411-198808

48331BUMPER, FRONT SPRING, NO.1

main48131-2A230iRX72..WG..ME198608-198808

main48131-2A240iRX72..WG..ME198608-198808

HARSH ROAD PACKAGE

main48331-14020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

main48331-22040iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

48471SEAT, FRONT SPRING, UPPER

main48044-22030iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48044-24010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-22220iMX73..ARL,ME,SA198408-198808

main48510-22240iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48510-22300iLX70,RX70,72..WG198411-198808

main48510-22310iMX73,RX71,73..GEN198608-198808

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-29255iRX70,72..WG198411-198808

main48511-29265iRX70..WG198411-198808

main48511-29275iGX71,LX70,RX70,72,YX70..HT,SED198408-198808

main48511-29335iMX73,RX71,73..GEN198608-198808

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-29255iLX70..EUG198411-198808

main48511-29265iRX72..WG..SA198411-198808

main48511-29275iGX71,LX70,RX70,72,YX70..HT,SED198408-198808

main48511-29335iMX73,RX71,73..GEN198608-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-22220iMX73..ARL,ME,SA198408-198808

main48520-22240iLX70,RX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48520-22300iLX70,RX70,72..WG198411-198808

main48520-22310iMX73,RX71,73..GEN198608-198808

48660BAR ASSY, STRUT, RH

main48660-22060iGX71,LX7#,MX7#,RX70,YX70198408-198504

main48660-22070iGX71,LX7#,MX7#,RX7#,YX70198504-198808

48670BAR ASSY, STRUT, LH

main48670-22060iGX71,LX7#,MX7#,RX70,YX70198408-198504

main48670-22070iGX71,LX7#,MX7#,RX7#,YX70198504-198808

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02079iGX71,LX7#,MX7#,RX70,71,72,YX70198408-198808

T=3.8(FR)

main90948-02080iGX71,LX7#,MX7#,RX70,71,72,YX70198408-198808

T=3.2(RR)

48674DSPACER(FOR STRUT BAR CUSHION)

main90560-18006iGX71,LX7#,MX7#,RX70,71,72,YX70198408-198808

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48684COVER, BEARING DUST

main48684-14020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48811BAR, STABILIZER, FRONT

main48811-22250iRX70,72..SED..XL..(GEN,ME)198408-198706

main48811-22260iGX71,RX70,72..SED..(GL,GLX)..(GEN,ME)198408-198808

W/POWER STEERING

main48811-22260iRX70..WG198411-198603

main48811-22270iLX70,RX71,73..GEN198408-198808

main48811-22280iGX71..RHD..GEN198608-198705

MALAYSIA SPEC

main48811-22280iGX71..EUG198408-198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22040iRX70..WG..SA198603-198608

main48815-22050iRX70,72..WG..SA198408-198808

main48815-22060iRX70,72..SED..XL..(GEN,ME)198408-198808

W/POWER STEERING

main48815-22060iRX70..WG198411-198603

main48815-22070iGX71..RHD..GEN198608-198705

MALAYSIA SPEC

main48815-22070iLX70,RX71,73..GEN198408-198808

48817CUSHION, FRONT STABILIZER

main48817-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48817DBOLT(FOR FRONT STABILIZER)

main48819-24010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48824BRACKET, STABILIZER, FRONT

main48824-22060iGX71,LX7#,MX7#,RX7#,YX70198408-198808

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9017010022

main90170-10022

9017910016

main90179-10016

9017918007

main90179-18007

9020110074

main90201-10074

9020110287

main90201-10287

9161640825

main91616-40825

9418210800

main94182-10800

33 parts on this diagram · 2 diagrams in section
