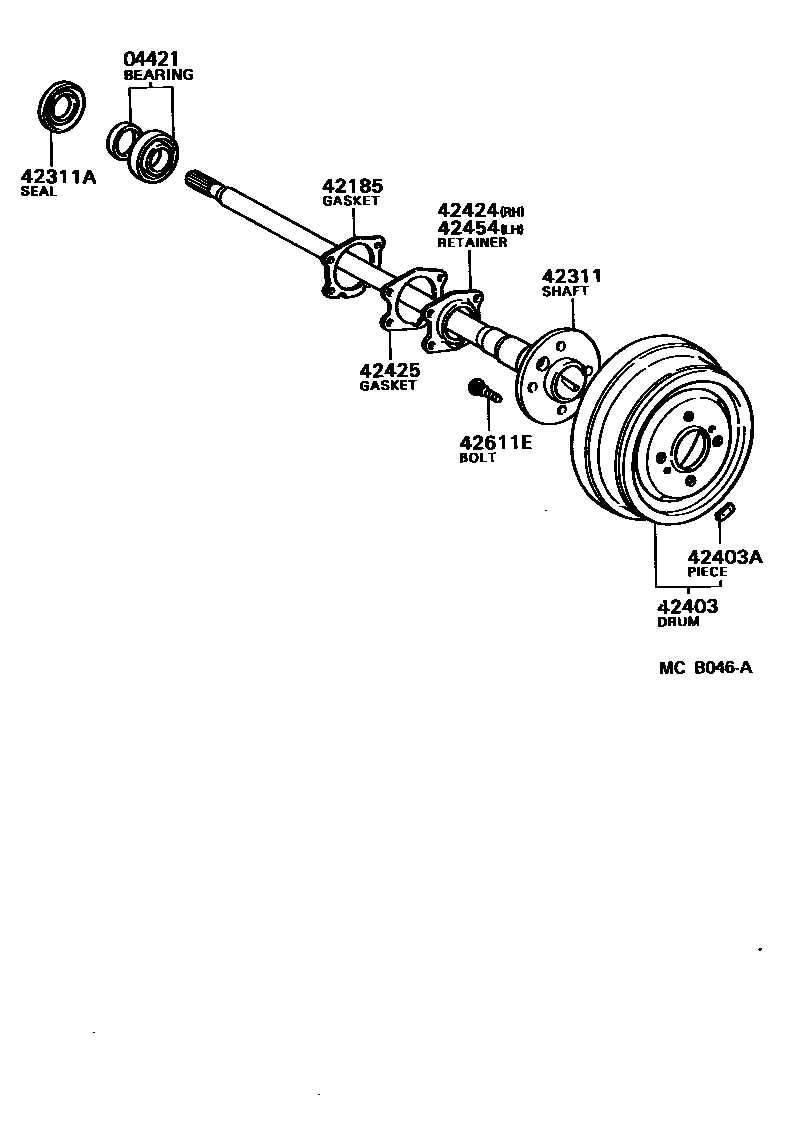

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0005 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011×2iLX70,MX72,RX70,72,YX70198408-198808

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iLX70,MX72,RX70,72,YX70198408-198808

main42185-22030×2iMX73;GX71..GEN198408-198409

42311SHAFT, REAR AXLE

main42301-22050×2iGX71,LX71,MX73,RX71,73198408-198808

main42311-22110×2iYX70198502-198808

main42311-22130×2iLX70,MX72,RX70,72198408-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iGX71,LX71,MX73,RX71,73198408-198808

main90311-52059×2iLX70,MX72,RX70,72,YX70198408-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iLX70,MX72,RX70,YX70198408-198510

main42431-14061×2iLX70,MX72,RX70,72,YX70198510-198808

main42431-14080×2iGX71,LX71..(EFI,TD)..(EUR,ME,SA)198408-198510

main42431-14081×2iGX71..ME,SA; LX71,RX71,73198510-198808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

10G,10G

main90937-01118×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

20G,20G

main90937-01119×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

30G,30G

main90937-01195×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

40G,40G

main90937-01196×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

50G,50G

main90937-01197×2iLX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)198408-198510

60G,60G

main90937-01287×2iGX71..ME,SA; LX7#,MX72,RX7#,YX70198510-198808

10G,10G

main90937-01288×2iGX71..ME,SA; LX7#,MX72,RX7#,YX70198510-198808

20G,20G

main90937-01289×2iGX71..ME,SA; LX7#,MX72,RX7#,YX70198510-198808

30G,30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iLX70,MX72,RX70,72,YX70198408-198808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iLX70,MX72,RX70,72,YX70198408-198808

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iLX70,MX72,RX70,72,YX70198408-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iGX71,LX7#,MX7#,RX7#,YX70198408-198808

10 parts on this diagram · 4 diagrams in section
