TRANSMISSION GEAR (MTM)

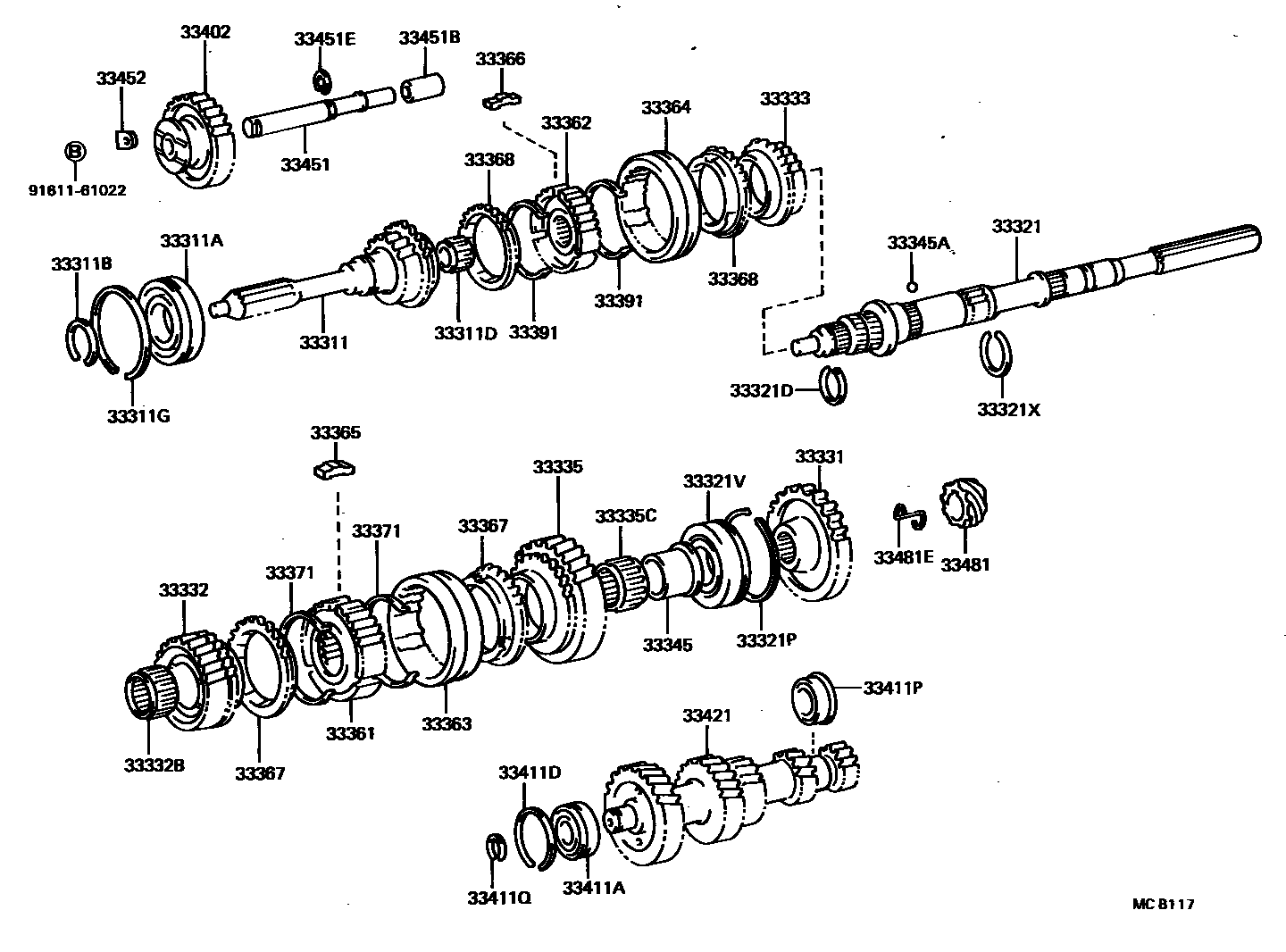

Parts diagram
33311SHAFT, INPUT
main33301-22024i198408-198608
main33301-24013i198408-198808
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-35007i198408-198808
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-33107i198408-198808
T=2.30-2.35,MARK 11,T=2.30
main90520-33132i198408-198808
T=2.35-2.40,MARK 12,T=2.35
main90520-33168i198408-198808
T=2.05,MARK 1,T=2.05
main90520-33169i198408-198808
T=2.10,MARK 2,T=2.10
main90520-33170i198408-198808
T=2.15,MARK 3,T=2.15
main90520-33171i198408-198808
T=2.20,MARK 4,T=2.20
main90520-33172i198408-198808
T=2.25,MARK 5,T=2.25
33311DBEARING, INPUT SHAFT
main90364-19043i198408-198808
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-76001i198408-198808
33321SHAFT, OUTPUT
main33321-22050i198408-198808
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-28012i198803-198808
T=1.75-1.80,MARK C-1,T=1.75
main90520-28014i198408-198808
T=1.86,MARK 11,T=1.86
main90520-28015i198408-198808
T=1.92,MARK 12,T=1.92
main90520-28016i198408-198808
T=1.98,MARK 13,T=1.98
main90520-28017i198408-198808
T=2.04,MARK 14,T=2.04
main90520-28018i198408-198808
T=2.10,MARK 15,T=2.10
main90520-28245i198408-198808
T=1.80-1.85,MARK D,T=1.80
33321PRING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)
main90520-76001i198408-198808
T=1.65
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-35009i198408-198808
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
main90520-33001i198408-198808
T=2.61,MARK 17,T=2.61
main90520-33002i198408-198808
T=2.67,MARK 18,T=2.67
main90520-33003i198408-198808
T=2.73,MARK 19,T=2.73
main90520-33004i198408-198808
T=2.79,MARK 20,T=2.79
main90520-33005i198408-198808
T=2.85,MARK 21,T=2.85
main90520-33006i198408-198808
T=2.91,MARK 22,T=2.91
main90520-33007i198408-198808
T=2.97,MARK 23,T=2.97
main90520-33107i198408-198808
T=2.30-2.35,MARK 11,T=2.30
main90520-33108i198408-198808
T=2.40,MARK 13,T=2.40
main90520-33109i198408-198808
T=2.50,MARK 15,T=2.50
main90520-33132i198408-198808
T=2.35-2.40,MARK 12,T=2.35
main90520-33133i198408-198808
T=2.45,MARK 14,T=2.45
main90520-33134i198408-198808
T=2.55,MARK 16,T=2.55
main90520-33172i198408-198808
T=2.25,MARK 5,T=2.25
33331GEAR, REVERSE
main33331-22030i198408-198808
33332GEAR, 2ND
main33033-22021i198408-198808
main33033-22030i198408-198608
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-43004i198408-198808
33333GEAR, 3RD
main33034-22021i198408-198808
33335GEAR, 1ST
main33032-22021i198408-198808
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-43004i198408-198808
33345BUSH, 1ST GEAR
main33345-22010i198408-198808
33345ABALL (FOR 1ST GEAR BUSH)
main90360-06004i198408-198808
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-22020i198408-198808
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-22020i198408-198808
33363SLEEVE, TRANSMISSION HUB, NO.1
main33363-22021i198408-198808
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-22021i198408-198808
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33366-20011×3i198408-198808
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33366-20011×3i198408-198808
33367RING, SYNCHRONIZER, NO.1
main33367-22021×2i198408-198808
33368RING, SYNCHRONIZER, NO.2
main33368-20013×2i198408-198808
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-22033×2i198408-198808
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
main33391-22030×2i198408-198808
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-22022i198408-198512
main33402-22023i198512-198808
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-25014i198408-198808
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-49222i198408-198808
T=1.07,OD=55.6
33411PBEARING, COUNTERSHAFT CENTER
main33430-22010i198408-198808
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23089i198408-198808
T=2.10-2.15,T=2.10
main90520-23090i198408-198808
T=2.20-2.25,T=2.20
main90520-23115i198408-198808
T=2.05-2.10,T=2.05
main90520-23143i198408-198808
T=2.15-2.20,T=2.15
main90520-23144i198408-198808
T=2.25-2.30,T=2.25
main90520-23145i198408-198808
T=2.30-2.35,T=2.35
main90520-23146i198408-198808
T=2.35-2.40,T=2.40
33421GEAR, COUNTER
main33421-22021i198408-198608
main33421-22031i198408-198608
main33421-24011i198408-198808
33451SHAFT, REVERSE IDLER GEAR
main33451-22021i198408-198808
33451BBUSH (FOR REVERSE IDLER GEAR SHAFT)
main90387-17002i198408-198608
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
main90523-17001i198408-198808
33452STOPPER, REVERSE IDLER GEAR SHAFT
main33452-22010i198408-198608
main33452-22020i198408-198808
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-14031i198408-198808
N=10,MARK 10X34-36
main33481-22020i198408-198608
N-11
main33481-22030i198408-198808
N=10,MARK 10X31-33
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
main90467-25001i198408-198808
9161161022
main91611-61022
