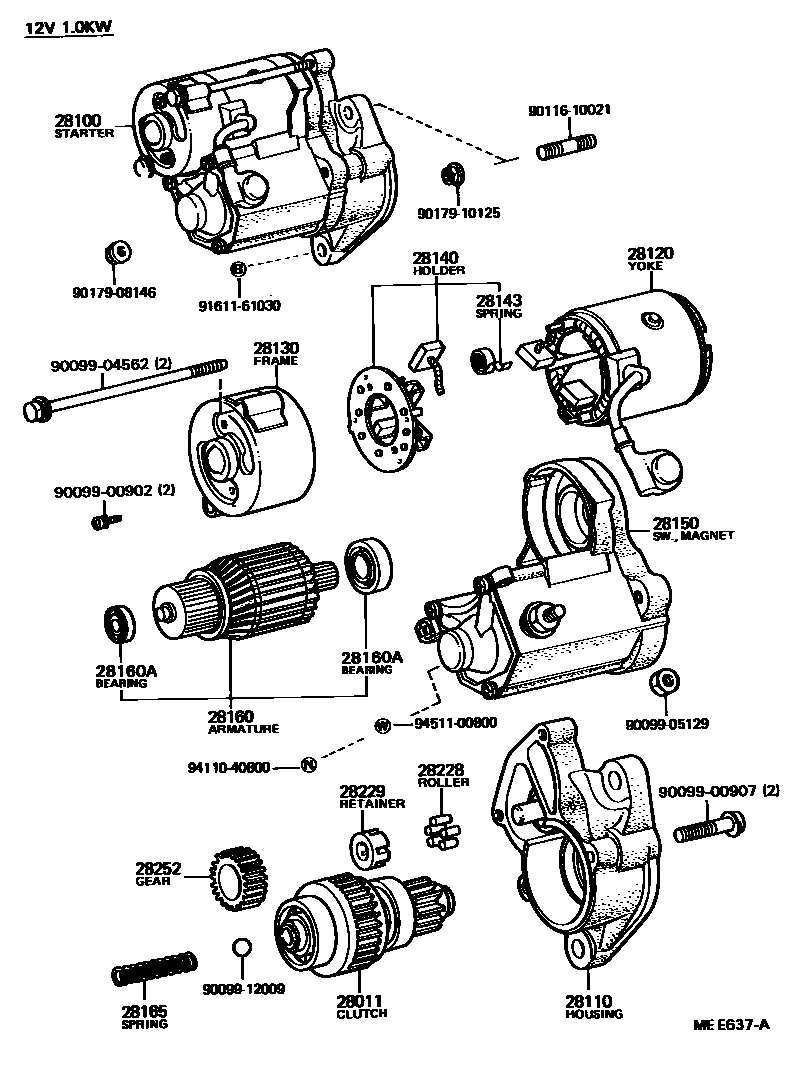

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i21R,22R,1G#,5M#,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW

main28011-54010i2L#..LX7#198408-198808

12V 2.5KW

main28011-54070i2L..LX70198408-198808

12V 2.0KW

28100STARTER ASSY

main28100-15040i1G#..GX71198408-198808

12V 1.0KW,12V 1.0KW

main28100-34060i21R,22R..RX70,72..RHD198408-198808

12V 1.0KW,12V 1.0KW

main28100-34080i21R,22R..RX7#..LHD198408-198808

12V 1.0KW,12V 1.0KW

main28100-41060i5MGE..MX73..ARL198508-198808

12V 1.0KW,12V 1.0KW

main28100-45050i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW,12V 1.4KW

main28100-54061i2L#..LX7#198408-198808

12V 2.5KW,12V 2.5KW

main28100-54070i2L..LX70198408-198808

12V 2.0KW,12V 2.0KW

main28100-72060i2Y..YX70198502-198808

12V 1.0KW,12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1G#..GX71198408-198808

12V 1.0KW

main28110-34060i21R,22R..RX70,72..RHD198408-198808

12V 1.0KW

main28110-34080i21R,22R..RX7#..LHD198408-198808

12V 1.0KW

main28110-41060i5ME..MX7#198408-198808

12V 1.0KW

main28110-45050i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28110-72060i2Y..YX70198502-198808

12V 1.0KW

main28115-54011i2L#..LX7#198408-198808

12V 2.5KW

main28115-54070i2L..LX70198408-198808

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15090i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28120-26071i1G#..GX71; 21R,22R,5ME,2Y..MX7#,RX7#,YX70198408-198808

12V 1.0KW

main28120-54070i2L..LX70198408-198808

12V 2.0KW

main28120-56081i2L#..LX7#198408-198808

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i5MGE..MX73..ARL198508-198808

12V 1.0KW

main28130-15040i1G#..GX71198408-198808

12V 1.0KW

main28130-15090i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28130-34060i21R,22R..RX7#198408-198808

12V 1.0KW

main28130-54060i2L#..LX7#198408-198808

12V 2.5KW

main28130-72010i2Y..YX70198502-198808

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28140-26070i21R,22R,1G#,5ME,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW

main28140-54070i2L..LX70198408-198808

12V 2.0KW

main28140-77090i2L#..LX7#198408-198808

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i21R,22R,1G#,5M#,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW

main90099-17115×4i2L..LX70198408-198808

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1G#..GX71198408-198808

12V 1.0KW

main28150-34080i21R,22R,2Y..RX7#,YX70198408-198808

12V 1.0KW

main28150-41060i5ME..MX7#198408-198808

12V 1.0KW

main28150-45050i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28150-54011i2L#..LX7#198408-198808

12V 2.5KW

main28150-54070i2L..LX70198408-198808

12V 2.0KW

28160ARMATURE ASSY, STARTER

main28160-15090i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW

main28160-26070i21R,22R,1G#,5ME,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW

main28160-47040i2L#..LX7#198408-198808

12V 2.5KW

main28160-54070i2L..LX70198408-198808

12V 2.0KW

28160ABEARING, STARTER ARMATURE

main28253-45020i21R,22R,1G#,5ME,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW,SMALL TYPE

main28253-54070i2L..LX70198408-198808

12V 2.0KW,SMALL TYPE

main90099-10107i2L#..LX7#198408-198808

12V 2.5KW,LARGE TYPE

main90099-10113i5MGE..MX73..ARL198508-198808

12V 1.0KW,LARGE TYPE

main90099-10119i2L#..LX7#198408-198808

12V 2.5KW,SMALL TYPE

main90099-10131i2L..LX70198408-198808

12V 2.0KW,LARGE TYPE

main90099-10143i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW,LARGE TYPE

main90099-10144i5MGE..MX73..EUR,GEN,SA198408-198808

12V 1.4KW,SMALL TYPE

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i21R,22R,1G#,2L,5M#,2Y..GX71,LX70,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW,2.0KW

main28165-77090i2L#..LX7#198408-198808

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i21R,22R,1G#,2L,5M#,2Y..GX71,LX70,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW,2.0KW

main28228-56080×6i2L#..LX7#198408-198808

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i21R,22R,1G#,2L,5M#,2Y..GX71,LX70,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW,2.0KW

main28229-56080i2L#..LX7#198408-198808

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i21R,22R,1G#,5M#,2Y..GX71,MX7#,RX7#,YX70198408-198808

12V 1.0KW,1.4KW

main28254-54070i2L..LX70198408-198808

12V 2.0KW

main28254-77090i2L#..LX7#198408-198808

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161030

main91611-61030

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 6 diagrams in section
