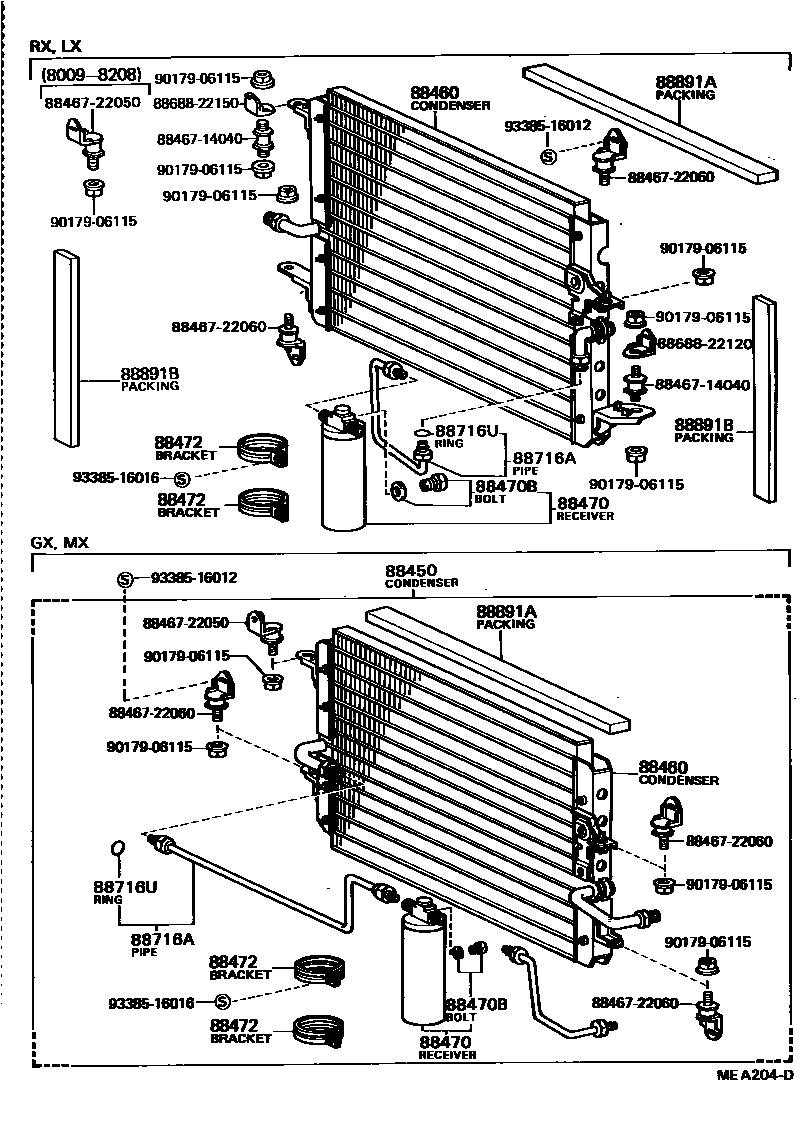

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88450CONDENSER ASSY, W/RECEIVER

main88460-22150iMX62..GL198009-198208

main88460-22190iGX60,MX6#..RHD198208-198504

main88460-22200iGX60..LHD198208-198407

88460CONDENSER ASSY, COOLER

main88460-22160iLX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

main88460-22170iMX62..DLX198009-198208

main88460-22210iGX61..LHD198208-198407

main88460-22220iLX60..LHD;RX60..EUG;RX60..LHD..(GEN,ME); RX60..RHD..GEN198208-198407

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iLX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

88470BBOLT, FUSE

main90099-04579iLX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090×2iRX60..EUG;GX61,LX60..LHD;RX60..LHD..(GEN,ME); RX60..RHD..GEN198208-198407

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22330iMX62..DLX198009-198208

main88716-22350iLX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

main88716-22360iGX61..LHD198208-198407

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90099-14044×5iGX60,MX62,RX60..RHD..(ARL,GEN); RX60..EUG;GX6#,LX60..LHD;RX60..LHD..(GEN,ME)198208-198407

88891APACKING A (FOR COOLER)

main88578-22080iLX60..LHD;RX60..EUG;RX60..LHD..(GEN,ME); RX60..RHD..GEN198208-198407

main88578-22100iMX62..DLX198009-198208

88891BPACKING B (FOR COOLER)

main88578-22090×2iLX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846722050CUSHION, COOLER CONDENSER, NO.1

main88467-22050

8846722060CUSHION, COOLER CONDENSER, NO.1

main88467-22060

8868822120BRACKET, COOLER DIAPHRAGM

main88688-22120

8868822150BRACKET, COOLER DIAPHRAGM

main88688-22150

9017906115

main90179-06115

9338516012

main93385-16012

9338516016

main93385-16016

17 parts on this diagram · 5 diagrams in section
