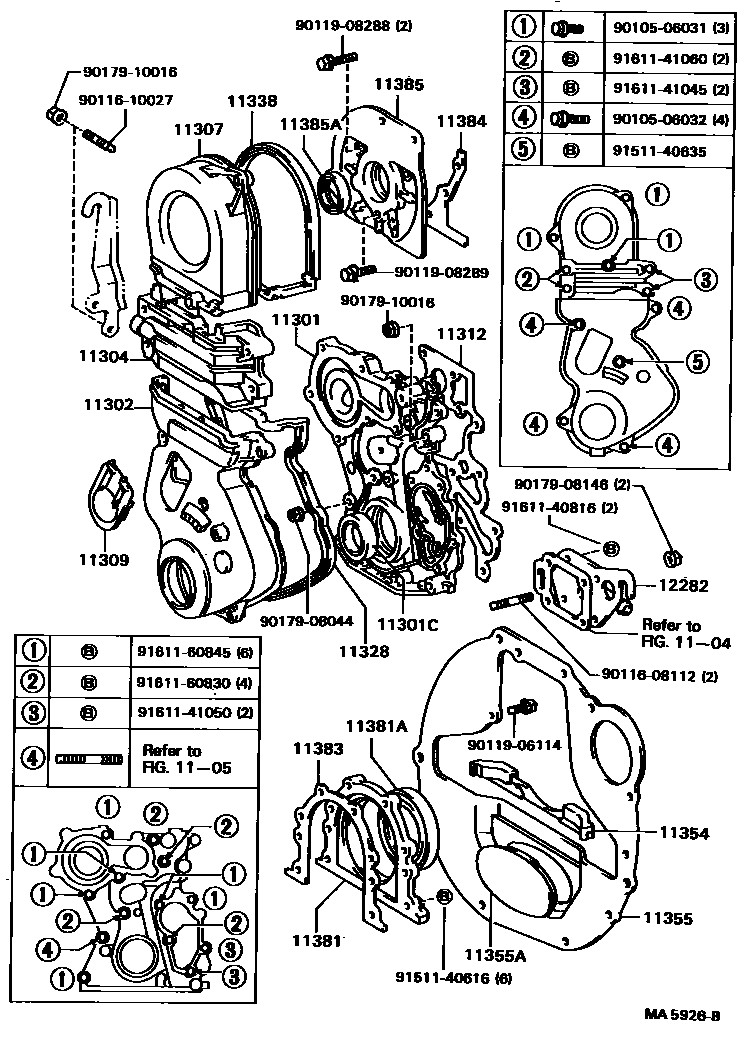

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CASE SUB-ASSY, TIMING GEAR

main11311-54020iL..LX60198009-198105

main11311-54021iL..LX60198105-198202

main11311-54022iL..LX60198202-198407

main11311-70011i1GE..GX6#198208-198504

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42001iL..LX60198009-198202

main90311-42003iL..LX60198202-198406

main90311-42012iL..LX60198406-198407

main90311-45003i1GE..GX6#198208-198504

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i21R..RX60198408-198504

main11302-38010i21R#..RX60198009-198407

main11302-70010i1GE..GX6#198208-198504

main11321-28010i3T..TX62198107-198504

main11321-34010i18R..RX62198107-198208

main11321-41020i5ME..MX6#198009-198408

main11321-41030i5ME..MX63198408-198504

main11321-54012iL..LX60198009-198104

main11321-54013iL..LX60198104-198203

main11321-54014iL..LX60198203-198407

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-70010i1GE..GX6#198208-198407

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-70010i1GE..GX6#198208-198504

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-70010i1GE..GX6#198208-198504

11312GASKET, FRONT END PLATE

main11312-33014i18R..RX62198107-198208

main11312-54011iL..LX60198009-198105

main11312-54012iL..LX60198105-198201

main11312-54013iL..LX60198201-198407

main11312-70011i1GE..GX6#198208-198504

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25011i3T..TX62198107-198201

main11328-25012i3T..TX62198201-198504

main11328-33016i18R..RX62198107-198208

main11328-35010i21R#..RX60198209-198407

main11328-35020i21R..RX60198408-198504

main11328-38020i21R#..RX60198009-198209

main11328-41010i5ME..MX6#198009-198504

main11328-54010iL..LX60198009-198407

main11328-70010i1GE..GX6#198208-198407

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-35010i21R#..RX60198209-198407

main11329-35020i21R..RX60198408-198504

main11329-70010i1GE..GX6#198208-198504

main11338-38030i21R#..RX60198009-198209

main11338-41010i5ME..MX6#198009-198504

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL..LX60198009-198407

main11354-70010i1GE..GX6#198208-198504

11355PLATE, REAR END

main11355-25012i3T..TX62..MTM198107-198504

main11355-25023i3T..TX62..3FC198107-198504

main11355-35010i21R#..RX60..MTM198306-198504

main11355-35020i21R..RX60..ATM198306-198504

main11355-38011i21R#..RX60..MTM198009-198306

main11355-38021i21R#..RX60..ATM198009-198306

main11355-41010i5ME..MX6#198009-198504

main11355-54030iL..LX60..5F198009-198407

main11355-54040iL..LX60..4FC198009-198407

main11355-70010i1GE..GX6#..5F198208-198504

main11355-70020i1GE..GX6#..4FC198208-198504

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01128×2i21R,18R..RX6#..ATM198009-198504

main90950-01263iL..LX60..4FC198009-198407

main90950-01307i1GE..GX6#..4FC; 3T..TX62..3FC198107-198504

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i3T..TX62198107-198504

main11381-38010i21R#,18R..RX6#198009-198504

main11381-41011i5ME..MX6#198009-198408

main11381-43010i5ME..MX63198408-198504

main11381-54010iL..LX60198009-198407

main11381-70010i1GE..GX6#198208-198504

11381ASEAL, ENGINE REAR OIL

main90311-75113i1GE..GX6#; 3T..TX62198107-198504

main90311-80001i21R#,18R..RX6#; 5ME..MX62198009-198306

HTC 80 100 12

main90311-80004i21R#..RX60198306-198504

main90311-85001iL..LX60198009-198402

HTC 85 105 13

main90311-85003iL..LX60198402-198407

HTC 85 105 10

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3T..TX62198107-198504

main11383-33010i21R#,18R..RX6#198009-198209

main11383-35010i21R#..RX60198209-198504

main11383-41010i5ME..MX6#198009-198504

main11383-54010iL..LX60198009-198407

main11383-70010i1GE..GX6#198208-198504

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL..LX60198009-198407

main11384-70010i1GE..GX6#198208-198504

11385RETAINER, CAMSHAFT OIL SEAL

main11382-70010i1GE..GX6#198208-198504

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i1GE..GX6#198208-198504

12282HANGER, ENGINE, NO.2

main12282-70011i1GE..GX6#198208-198504

9010506031

main90105-06031

9010506032

main90105-06032

9011608112

main90116-08112

9011610027

main90116-10027

9011906114

main90119-06114

9011908288

main90119-08288

9011908289

main90119-08289

9017908044

main90179-08044

9017908146

main90179-08146

9017910016

main90179-10016

9151140616

main91511-40616

9151140635

main91511-40635

9161140816

main91611-40816

9161141045

main91611-41045

9161141050

main91611-41050

9161141060

main91611-41060

9161160830

main91611-60830

9161160845

main91611-60845

39 parts on this diagram · 8 diagrams in section
