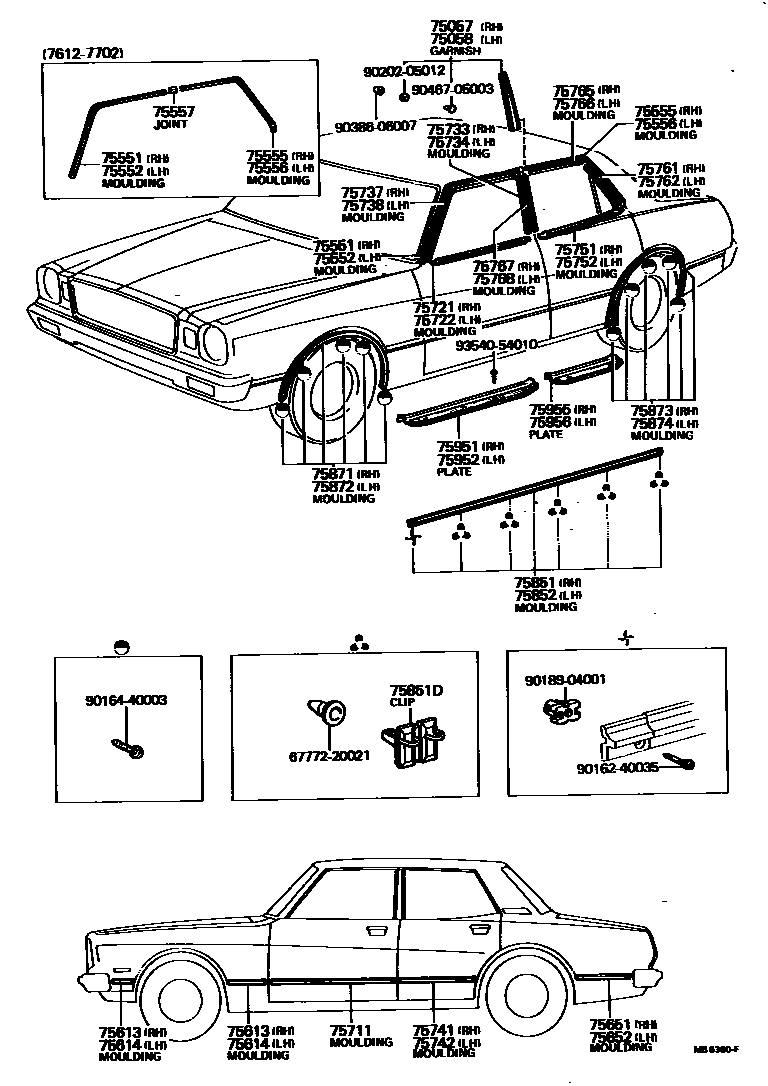

SIDE MOULDING

0001 1 0002 1 0003 1

75057GARNISH SUB-ASSY, CENTER PILLAR, OUTER RH

main75057-22010iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75058GARNISH SUB-ASSY, CENTER PILLAR, OUTER LH

main75058-22010iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-22030iMX3#,RX3#..(SED,WG)..DLX197612-197702

main75505-22031iMX3#,RX3#..(SED,WG)..(DLX,GL)..(ARL,EUR,GEN); RX3#,TX30..SA198001-198008

main75551-95800iRX30..HT197612-198008

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-22030iMX3#,RX3#..(SED,WG)..DLX197612-197702

main75506-22031iMX3#,RX3#..(SED,WG)..(DLX,GL)..(ARL,EUR,GEN); RX3#,TX30..SA198001-198008

main75552-95800iRX30..HT197612-198008

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-22010iMX32,RX30..SED..DLX197612-197702

main75553-22011iRX30..STD..SA197702-197808

main75553-91606iMX36,RX35..DLX197612-197702

main75553-91607iRX35..STD..SA;MX36,RX35..DLX197702-198008

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-22010iMX32,RX30..SED..DLX197612-197702

main75554-22011iMX32,RX30..SED..(DLX,GL,SDX)197702-198001

main75554-91606iMX36,RX35..DLX197612-197702

main75554-91607iRX35..STD..SA;MX36,RX35..DLX197702-198008

75557JOINT, ROOF DRIP SIDE FINISH MOULDING

main75555-22010×2iMX3#,RX3#..(SED,WG)..DLX197612-197702

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75613-22020iMX3#;RX3#..DLX..(EUR,GEN)197612-197802

FOR FRONT

main75613-22021iMX3#,RX3#..DLX,GL,SDX197808-198008

FOR FRONT

main75615-22020iMX3#;RX3#..DLX..(EUR,GEN)197612-197802

FOR REAR

main75615-22021iMX3#,RX3#..DLX,GL,SDX197808-198008

FOR REAR

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75614-22020iMX3#;RX3#..DLX..(EUR,GEN)197612-197802

FOR FRONT

main75614-22021iMX3#,RX3#..DLX,GL,SDX197808-198008

FOR FRONT

main75616-22020iMX3#;RX3#..DLX..(EUR,GEN)197612-197802

FOR REAR

main75616-22021iMX3#;RX3#..DLX..(EUR,GEN)197802-197808

FOR REAR

75651MOULDING, QUARTER, OUTSIDE RH

main75651-22020iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN); RX30..HT197612-197802

FOR REAR

main75651-22021iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197802-197808

main75655-95800iRX30..HT197612-197802

FOR FRONT

main75655-95801iRX30..HT197802-198008

FOR FRONT

75652MOULDING, QUARTER, OUTSIDE LH

main75652-22020iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN); RX30..HT197612-197802

FOR REAR

main75652-22021iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197802-197808

main75656-95800iRX30..HT197612-197802

FOR FRONT

main75656-95801iRX30..HT197802-198008

FOR FRONT

75711MOULDING, FRONT DOOR OUTSIDE, NO.1

main75731-22040iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197612-197802

FOR RH.

main75731-22041iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197802-197808

FOR RH.

main75731-95800iRX30..HT197612-197802

FOR RH.

main75731-95801iRX30..HT197802-198008

FOR RH.

main75732-22040iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197612-197802

FOR LH.

main75732-22041iMX3#,RX3#..(SED,WG)..(DLX,GL,SDX)197808-198008

FOR LH.

main75732-95800iRX30..HT197612-197802

FOR LH.

main75732-95801iRX30..HT197802-198008

FOR LH.

75721MOULDING, FRONT DOOR BELT, RH

main75710-22010iMX3#,RX3#..(SED,WG)..(DLX,GL,SDX)197612-198008

main75710-95800iRX30..HT197612-198008

75722MOULDING, FRONT DOOR BELT, LH

main75720-22010iMX3#,RX3#..(SED,WG)..(DLX,GL,SDX)197612-198008

main75720-95800iRX30..HT197612-198008

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-22010iRX30..SED..4F..GL..EUG;MX3#,RX3#..(SED,WG)..DLX197808-198008

main75755-22020iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-22010iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

main75756-22020iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-22030iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

main75751-22040iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-22030iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

main75752-22040iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-22020iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197612-197802

main75741-22021iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197802-197808

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-22010iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197612-197802

main75742-22011iMX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)197802-197808

75751MOULDING, REAR DOOR BELT, RH

main75730-22030iMX3#,RX3#..(SED,WG)..(DLX,GL,SDX)197612-198008

75752MOULDING, REAR DOOR BELT, LH

main75740-22010iMX3#,RX3#..(SED,WG)..(DLX,GL,SDX)197612-198008

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-22020iMX32,RX30..SED..(DLX,SDX)197612-197808

main75765-22030iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

main75765-91605iMX36,RX35..DLX197612-198008

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-22020iMX32,RX30..SED..(DLX,SDX)197612-197808

main75766-22040iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

main75766-91600iMX36,RX35..DLX197612-198008

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-22010iMX32,RX30..SED..DLX;RX30..SED..4F..GL..EUG197808-198008

main75763-22020iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

main75763-91605iMX36,RX35..DLX197612-198008

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-22010iMX32,RX30..SED..DLX;RX30..SED..4F..GL..EUG197808-198008

main75764-22020iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

main75764-91605iMX36,RX35..DLX197612-198008

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-22040iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

main75761-22050iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-22040iRX30..SED..4F..GL..EUG;MX3#,RX3#..(SED,WG)..DLX197808-198008

main75762-22050iMX32,RX30..SED..(GL,SDX)..(GEN,SA)197808-198008

75851MOULDING, ROCKER PANEL, RH

main75850-29055×2iMX3#,RX3#..DLX,GL,SDX197612-198008

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-22010×10iMX3#,RX3#..DLX,GL,SDX197612-198008

75852MOULDING, ROCKER PANEL, LH

main75860-29055×2iMX3#,RX3#..DLX,GL,SDX197612-198008

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-29025iMX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)197612-198008

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-29025iMX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)197612-198008

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-29025iMX32;RX30..5F..GL..SA;RX30..(DLX,GL)..(EUR,GEN)197612-198008

main75087-29035iMX36,RX35..DLX..(ARL,EUR,GEN)197612-198008

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-29025iMX32;RX30..5F..GL..SA;RX30..(DLX,GL)..(EUR,GEN)197612-198008

main75088-29035iMX36,RX35..DLX..(ARL,EUR,GEN)197612-198008

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-22040-01iMX3#,RX3#,TX30..SED,WG197612-198008

BLACK,BLACK,TRIM2#

main67913-22040-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67913-22040-03iMX3#,RX3#..SED,WG197612-197808

GRAY,GRAY,TRIM1#

main67913-22040-05iMX3#,RX3#,TX30..SED,WG197612-198008

BEIGE,BEIGE,TRIM4#

main67913-95800-01iRX30..HT197612-198008

BLACK,BLACK,TRIM2#

main67913-95800-02iRX30..HT197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67913-95800-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#

main67913-95800-05iRX30..HT197612-198008

BEIGE,BEIGE,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-22040-01iMX3#,RX3#,TX30..SED,WG197612-198008

BLACK,BLACK,TRIM2#

main67914-22040-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67914-22040-03iMX3#,RX3#..SED,WG197612-197808

GRAY,GRAY,TRIM1#

main67914-22040-05iMX3#,RX3#,TX30..SED,WG197612-198008

BEIGE,BEIGE,TRIM4#

main67914-95800-01iRX30..HT197612-198008

BLACK,BLACK,TRIM2#

main67914-95800-02iRX30..HT197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67914-95800-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#

main67914-95800-05iRX30..HT197612-198008

BEIGE,BEIGE,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-22040-01iMX3#,RX3#,TX30..SED,WG197612-198008

BLACK,BLACK,TRIM2#

main67917-22040-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67917-22040-03iMX3#,RX3#..SED,WG197612-197808

GRAY,GRAY,TRIM1#

main67917-22040-05iMX3#,RX3#,TX30..SED,WG197612-198008

BEIGE,BEIGE,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-22040-01iMX3#,RX3#,TX30..SED,WG197612-198008

BLACK,TRIM2#

main67918-22040-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,TRIM3#

main67918-22040-03iMX3#,RX3#..SED,WG197612-197808

GRAY,GRAY,TRIM1#

main67918-22040-05iMX3#,RX3#,TX30..SED,WG197612-198008

BEIGE,BEIGE,TRIM4#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016240035

main90162-40035

9016440003

main90164-40003

9018904001

main90189-04001

9020205012

main90202-05012

9038606007

main90386-06007

9046705003

main90467-05003

9354054010

main93540-54010

47 parts on this diagram · 3 diagrams in section
