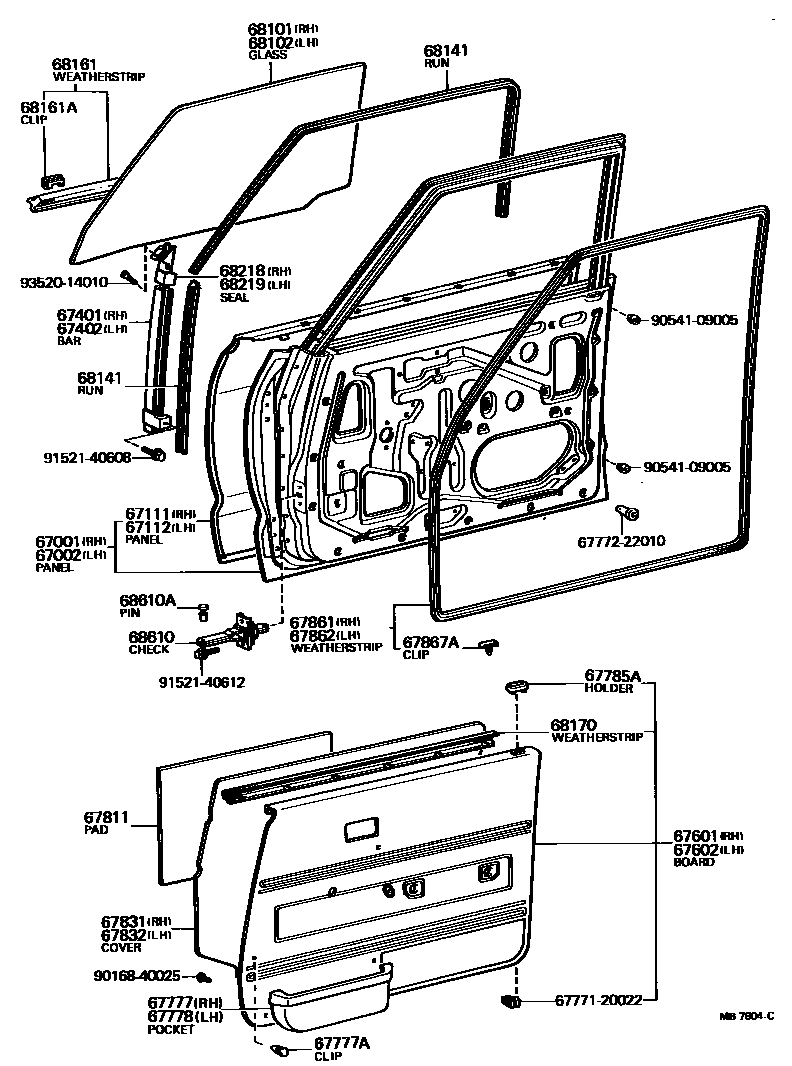

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22080iRX3#..(SED,WG)..(DLX,STD)..(EUR,GEN)197612-198008

main67001-22090iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR

main67001-22110iMX32,RX3#..(SED,WG)..(EUR,GEN,SA)197612-197808

W/MIRROR

main67001-22111iRX30..5F..GL..SA;MX32,RX3#,TX30..(SED,WG)..(DLX,SDX,STD)..(EUR,GEN,SA)197808-198008

W/MIRROR

main67001-22120iMX3#..ARL197612-197808

W/MIRROR

main67001-22121iMX3#..ARL197808-198008

W/MIRROR

main67001-22140iRX30..SED..LHD..GL197808-198008

W/MIRROR,POWER WINDOW

main67001-95800iRX30..HT197612-198008

main67001-95801iRX30..HT..GL197808-198008

FOR POWER WINDOW

main67001-95802iRX30..HT197612-197808

W/MIRROR

main67001-95803iRX30..HT..GL..EUG197808-198008

W/MIRROR,POWER WINDOW

main67001-95804iRX30..HT..EUG197808-198008

W/MIRROR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22090iRX3#..(SED,WG)..(DLX,STD)..(EUR,GEN)197612-198008

main67002-22100iRX30..SED..GL..GEN197808-198008

POWER WINDOW OR W/RETAINER SW.

main67002-22110iMX36197612-197808

W/MIRROR

main67002-22120iMX32,RX3#..(SED,WG)..(EUR,GEN,SA)197612-197808

W/MIRROR

main67002-22121iRX30..5F..GL..SA;MX32,RX3#,TX30..(SED,WG)..(DLX,SDX,STD)..(EUR,GEN,SA)197808-198008

W/MIRROR

main67002-22130iMX32..ARL197612-198008

main67002-22150iRX30..SED..LHD..GL197808-198008

W/MIRROR,POWER WINDOW

main67002-91612iMX36197808-198008

W/MIRROR

main67002-95800iRX30..HT..GEN197808-198008

main67002-95801iRX30..HT..GL..GEN197808-198008

FOR POWER WINDOW

main67002-95802iRX30..HT197612-197808

W/MIRROR

main67002-95803iRX30..HT..GL197808-198008

W/MIRROR,POWER WINDOW

main67002-95804iRX30..HT..LHD197808-198008

W/MIRROR

67111PANEL, FRONT DOOR, OUTER RH

main67111-22060iMX3#,RX3#,TX30..SED,WG197612-198008

main67111-95800iRX30..HT197803-198008

main67111-95801iRX30..HT197612-197803

67112PANEL, FRONT DOOR, OUTER LH

main67112-22060iMX3#,RX3#..SED,WG197612-198008

main67112-22071iMX3#,RX3#,TX30..SED,WG197808-198008

FOR W/MIRROR

main67112-95800iRX30..HT197612-198008

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-22041iMX3#,RX3#,TX30..SED,WG197612-198008

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-22041iMX3#,RX3#,TX30..SED,WG197612-198008

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-22400-01iRX3#..DLX..SA197808-198008

BLACK,BLACK,TRIM2#

main67610-22400-02iRX3#..DLX..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-22400-03iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main67610-22400-05iRX3#..DLX..SA197808-198008

BEIGE,BEIGE,TRIM4#

main67610-22410-01iRX3#,TX30..STD197612-198008

BLACK,BLACK,TRIM2#

main67610-22410-02iRX30,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-22410-03iRX30..STD197612-197808

GRAY,GRAY,TRIM1#

main67610-22410-05iRX3#,TX30..STD197612-198008

BEIGE,BEIGE,TRIM4#

main67610-22610-01iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67610-22610-02iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67610-22610-05iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67610-22620-01iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BLACK,BLACK,TRIM2#

main67610-22620-02iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-22620-05iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BEIGE,BEIGE,TRIM4#

main67610-22640-01iRX30..SED..GL..(EUR,GEN)197808-198008

BLACK,BLACK,TRIM2#

main67610-22640-02iRX30..SED..GL..(EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-22640-05iRX30..SED..GL..(EUR,GEN)197808-198008

BEIGE,BEIGE,TRIM4#

main67610-22740-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#

main67610-22740-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#

main67610-22740-05iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BEIGE,BEIGE,TRIM4#

main67610-95804-01iRX30..HT197612-197808

BLACK,BLACK,TRIM2#

main67610-95804-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#

main67610-95804-05iRX30..HT197612-197808

BEIGE,BEIGE,TRIM4#

main67610-95821-01iRX30..HT..DLX197808-198008

BLACK,BLACK,TRIM2#

main67610-95821-02iRX30..HT..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-95821-05iRX30..HT..DLX197808-198008

BEIGE,BEIGE,TRIM4#

main67610-95832-01iRX30..HT..GL197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67610-95832-02iRX30..HT..GL197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67610-95832-05iRX30..HT..GL197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67610-95833-01iRX30..HT..GL197808-198008

BLACK,BLACK,TRIM2#

main67610-95833-02iRX30..HT..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67610-95833-05iRX30..HT..GL197808-198008

BEIGE,BEIGE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-22230-01iRX3#,TX30..STD197612-198008

BLACK,BLACK,TRIM2#

main67620-22230-02iRX30,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-22230-03iRX30..STD197612-197808

GRAY,GRAY,TRIM1#

main67620-22230-05iRX3#,TX30..STD197612-198008

BEIGE,BEIGE,TRIM4#

main67620-22270-01iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

BLACK,BLACK,TRIM2#

main67620-22270-02iRX3#..DLX..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-22270-03iMX3#,RX3#..(SED,WG)..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main67620-22270-05iRX3#..DLX..SA197808-198008

BEIGE,BEIGE,TRIM4#

main67620-22281-01iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67620-22281-02iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67620-22281-05iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67620-22321-01iRX30..SED..GL..(EUR,GEN)197808-198008

BLACK,BLACK,TRIM2#

main67620-22321-02iRX30..SED..GL..(EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-22321-05iRX30..SED..GL..(EUR,GEN)197808-198008

BEIGE,BEIGE,TRIM4#

main67620-22430-01iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BLACK,BLACK,TRIM2#

main67620-22430-02iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-22430-05iMX3#,RX3#..(SED,WG)..DLX..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BEIGE,BEIGE,TRIM4#

main67620-22590-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#

main67620-22590-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#

main67620-22590-05iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BEIGE,BEIGE,TRIM4#

main67620-95800-01iRX30..HT197612-197808

BLACK,BLACK,TRIM2#

main67620-95800-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#

main67620-95800-05iRX30..HT197612-197808

BEIGE,BEIGE,TRIM4#

main67620-95824-01iRX30..HT..DLX197808-198008

BLACK,BLACK,TRIM2#

main67620-95824-02iRX30..HT..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-95824-05iRX30..HT..DLX197808-198008

BEIGE,BEIGE,TRIM4#

main67620-95834-01iRX30..HT..GL197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67620-95834-02iRX30..HT..GL197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67620-95834-05iRX30..HT..GL197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67620-95836-01iRX30..HT..GL197808-198008

BLACK,BLACK,TRIM2#

main67620-95836-02iRX30..HT..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67620-95836-05iRX30..HT..GL197808-198008

BEIGE,BEIGE,TRIM4#

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-01iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BLACK,BLACK,TRIM2#

main67777-22040-02iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67777-22040-05iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BEIGE,BEIGE,TRIM4#

67777ACLIP, FRONT DOOR POCKET

main90467-09010-01×2iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BLACK,BLACK,TRIM2#

main90467-09010-02×2iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main90467-09010-05×2iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BEIGE,BEIGE,TRIM4#

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-01iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BLACK,BLACK,TRIM2#

main67778-22030-02iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67778-22030-05iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN); MX32,RX30..(GL,SDX)..SA197808-198008

BEIGE,BEIGE,TRIM4#

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20040×2iMX3#,RX3#,TX30..SED,WG197612-198008

67811PAD, FRONT DOOR SILENCER

main67811-20050×2iMX3#,RX3#,TX30..SED,WG197612-198008

main67811-20060×2iRX30..HT197612-198008

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22060iMX3#,RX3#..SED,WG197612-197808

main67831-22061iMX3#,RX3#,TX30..SED,WG197808-198008

main67831-95800iRX30..HT197612-198008

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22060iMX3#,RX3#..SED,WG197612-197808

main67831-22061iMX3#,RX3#,TX30..SED,WG197808-198008

main67831-95800iRX30..HT197612-198008

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22040iMX3#,RX3#,TX30..SED,WG197612-198008

main67861-95800iRX30..HT197612-198008

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22040iMX3#,RX3#,TX30..SED,WG197612-198008

main67862-95800iRX30..HT197612-198008

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iMX3#,RX3#,TX30197612-198008

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-22050iRX3#,TX30..STD197908-198008

TP.T=4.0

main68111-22060iMX3#,RX3#..(SED,WG)..(ARL,EUR,GEN)197908-198008

TN.TP.T=4.0

main68111-95800iRX30..HT197612-198008

TN.TP.T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-22050iRX3#,TX30..STD197908-198008

TP.T=4.0

main68112-22060iMX3#,RX3#..(SED,WG)..(ARL,EUR,GEN)197908-198008

TN.TP.T=4.0

main68112-95800iRX30..HT197612-198008

TN.TP.T=4.0

68141RUN, FRONT DOOR GLASS

main68141-22030×2iMX32,RX30,TX30..SED197612-198008

L=1677

main68141-91603×2iMX36,RX35197612-198008

L=1000

main68143-22010×2iMX32,RX30,TX30..SED197612-198008

L=426

main68143-91601×2iMX36,RX35197612-198008

L=426

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-22010iRX3#,TX30..STD197612-198008

FOR RH.

main68210-22010iRX3#,TX30..STD197612-198008

FOR LH.

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10020×12iRX3#,TX30..STD197612-198008

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-22040×2iMX3#,RX3#,TX30..SED,WG197612-198008

main68170-95800×2iRX30..HT197612-198008

68218SEAL, FRONT DOOR WINDOW CORNER, RH

main67481-22011iMX3#,RX3#,TX30..SED,WG197612-198008

68219SEAL, FRONT DOOR WINDOW CORNER, LH

main67482-22011iMX3#,RX3#,TX30..SED,WG197612-198008

68610CHECK ASSY, FRONT DOOR

main68610-22010×2iMX3#,RX3#,TX30197612-198008

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010×2iMX3#,RX3#,TX30197612-198008

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9016840025

main90168-40025

9054109005

main90541-09005

9152140608

main91521-40608

9152140612

main91521-40612

9352014010

main93520-14010

35 parts on this diagram · 2 diagrams in section
