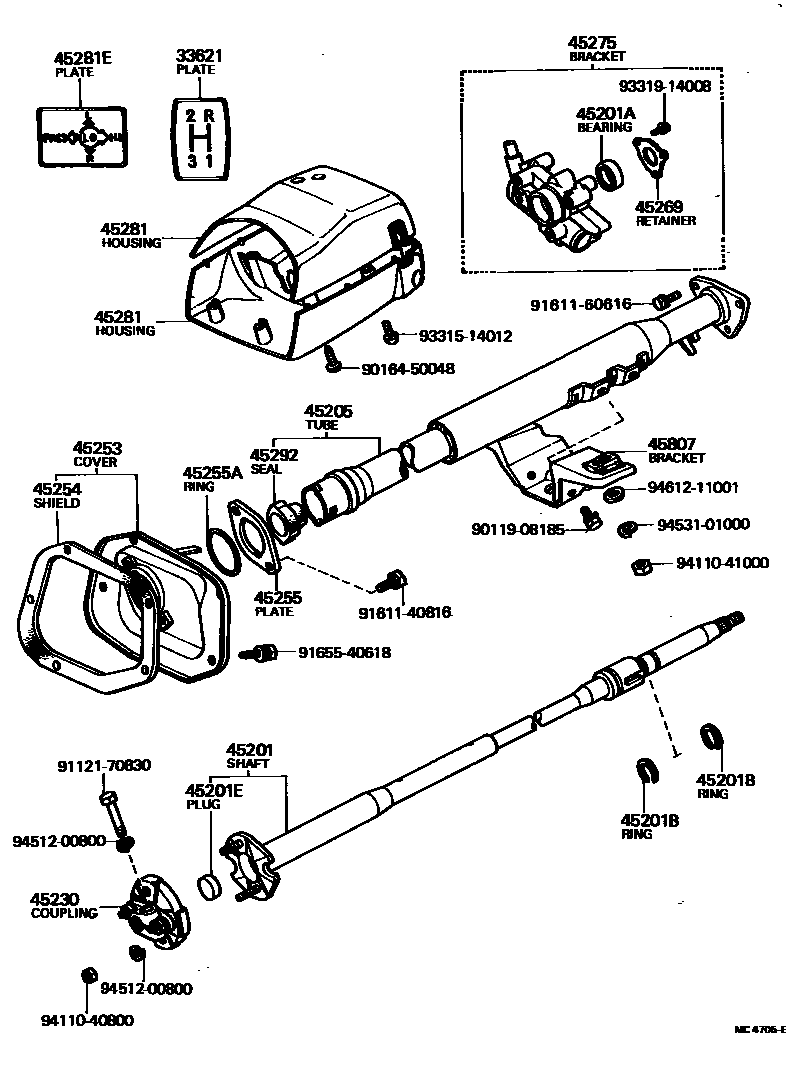

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0005 1

33621PLATE, CONTROL LEVER CAUTION

main33621-22050iRX3#..RHD..3H197612-198008

main33621-22060iRX3#..LHD..3H197612-198008

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22030iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

main45210-22040iMX3#197612-198008

FOR POWER STEERING

main45210-22050iRX3#..DLX..EUR197808-198008

FOR TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iRX3#..DLX..EUR197808-198008

FOR TILT STEERING,UPPER

main90363-18038iMX3#,RX3#197612-198008

main90363-28001iRX30..GL197808-198008

FOR TILT STEERING,LOWER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iMX3#,RX3#,TX30197612-198008

T=1.20,T=1.2

main90520-17269iMX3#,RX3#,TX30197612-198008

T=1.20,FOR STEERING WHEEL SIDE

45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)

main90333-21008iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-22070iRX3#..DLX..EUR197808-198008

FOR TILT STEERING

main45870-22080iMX3#,RX3#197612-198008

45230COUPLING ASSY, FLEXIBLE

main45230-14020iMX3#,RX3#,TX30197612-198008

45253COVER, STEERING COLUMN HOLE

main45025-22010iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)198005-198008

main45253-22913iMX3#,RX3#..RHD..(3FC,4F,5F)197612-197908

main45253-22914iRX3#..LHD..(3FC,4F,5F)197612-197908

main45253-22915iRX3#..LHD..3H197612-197908

main45253-22916iRX3#..RHD..3H197612-197908

main45253-22917iRX3#..LHD..(3FC,4F,5F)197908-198008

main45253-22918iRX3#..RHD..3H197908-198008

main45253-22919iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)197908-198005

main45253-22920iRX3#..LHD..3H197908-198008

45254SHIELD, STEERING COLUMN HOLE

main45254-22030iMX3#,RX3#197612-197908

main45254-22031iMX3#,RX3#,TX30197908-198008

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iMX3#,RX3#,TX30197612-198008

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iMX3#,RX3#,TX30197612-198008

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iMX3#,RX3#197612-197807

main45269-35010iMX3#,RX3#197807-198008

45275BRACKET, STEERING COLUMN, UPPER

main45280-22181iRX30..RHD..GL197808-198008

FOR TILT STEERING

main45280-22190iRX30..LHD..GL197808-198008

FOR TILT STEERING

main45280-30150iRX3#..RHD..3H197612-197807

main45280-30151iRX3#..RHD..3H197807-198008

main45280-30160iMX3#,RX3#..RHD..(3FC,4F)197612-197807

main45280-30161iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197807-198008

main45280-30180iRX3#..LHD197612-197807

main45280-30181iRX3#..LHD..(DLX,STD)197807-198008

45281HOUSING, STEERING COLUMN

main45286-22180-01iRX3#..LHD..3H197612-197808

BLACK,UPPER,BLACK,TRIM2#

main45286-22180-03iRX3#..LHD..3H197612-197808

GRAY,UPPER,GRAY,TRIM1#

main45286-22180-05iRX3#..LHD..3H197612-197808

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22181-01iRX3#..LHD..3H197808-198008

BLACK,UPPER,BLACK,TRIM2#

main45286-22181-02iRX3#..LHD..3H197808-198008

DARK WINE,UPPER,RED/MAROON,TRIM3#

main45286-22181-05iRX3#..LHD..3H197808-198008

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22190-01iRX3#..LHD..(3FC,4F,5F)197612-197808

BLACK,UPPER,BLACK,TRIM2#

main45286-22190-03iRX3#..LHD..(3FC,4F,5F)197612-197808

GRAY,UPPER,GRAY,TRIM1#

main45286-22190-05iRX3#..LHD..(3FC,4F,5F)197612-197808

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22191-01iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

BLACK,UPPER,BLACK,TRIM2#

main45286-22191-02iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

DARK WINE,UPPER,RED/MAROON,TRIM3#

main45286-22191-05iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22200-01iRX3#..RHD..3H197612-197808

BLACK,UPPER,BLACK,TRIM2#

main45286-22200-03iRX3#..RHD..3H197612-197808

GRAY,UPPER,GRAY,TRIM1#

main45286-22200-05iRX3#..RHD..3H197612-197808

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22201-01iRX3#..RHD..3H197808-198008

BLACK,UPPER,BLACK,TRIM2#

main45286-22201-02iRX3#..RHD..3H197808-198008

DARK WINE,UPPER,RED/MAROON,TRIM3#

main45286-22201-05iRX3#..RHD..3H197808-198008

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22210-01iMX3#,RX3#..RHD..(3FC,4F)197612-197808

BLACK,UPPER,BLACK,TRIM2#

main45286-22210-03iMX3#,RX3#..RHD..(3FC,4F)197612-197808

GRAY,UPPER,GRAY,TRIM1#

main45286-22210-05iMX3#,RX3#..RHD..(3FC,4F)197612-197808

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22211-01iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

BLACK,UPPER,BLACK,TRIM2#

main45286-22211-02iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

DARK WINE,UPPER,RED/MAROON,TRIM3#

main45286-22211-05iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

BEIGE,UPPER,BEIGE,TRIM4#

main45286-22231-01iRX30..RHD..GL197808-198008

BLACK,UPPER & TILT STEERING,BLACK,TRIM2#

main45286-22231-02iRX30..RHD..GL197808-198008

DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3#

main45286-22231-05iRX30..RHD..GL197808-198008

BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4#

main45286-22240-01iRX3#..LHD..DLX..EUR197808-198008

BLACK,UPPER & TILT STEERING,BLACK,TRIM2#

main45286-22240-02iRX30..LHD..GL197808-198008

DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3#

main45286-22240-05iRX30..LHD..GL197808-198008

BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4#

main45287-22110-01iRX3#..LHD..3H197612-197808

BLACK,LOWER,BLACK,TRIM2#

main45287-22110-03iRX3#..LHD..3H197612-197808

GRAY,LOWER,GRAY,TRIM1#

main45287-22110-05iRX3#..LHD..3H197612-197808

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22111-01iRX3#..LHD..3H197808-198008

BLACK,LOWER,BLACK,TRIM2#

main45287-22111-02iRX3#..LHD..3H197808-198008

DARK WINE,LOWER,RED/MAROON,TRIM3#

main45287-22111-05iRX3#..LHD..3H197808-198008

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22120-01iRX3#..LHD..(3FC,4F,5F)197612-197808

BLACK,LOWER,BLACK,TRIM2#

main45287-22120-03iRX3#..LHD..(3FC,4F,5F)197612-197808

GRAY,LOWER,GRAY,TRIM1#

main45287-22120-05iRX3#..LHD..(3FC,4F,5F)197612-197808

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22121-01iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

BLACK,LOWER,BLACK,TRIM2#

main45287-22121-02iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

DARK WINE,LOWER,RED/MAROON,TRIM3#

main45287-22121-05iRX3#..LHD..(3FC,4F,5F)..(DLX,STD)197808-198008

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22131-01iRX30..RHD..GL197808-198008

BLACK,LOWER & TILT STEERING,BLACK,TRIM2#

main45287-22131-02iRX30..RHD..GL197808-198008

DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3#

main45287-22131-05iRX30..RHD..GL197808-198008

BEIGE,LOWER & TILT STEERIG,BEIGE,TRIM4#

main45287-22140-01iRX30..LHD..GL197808-198008

BLACK,LOWER & TILT STEERING,BLACK,TRIM2#

main45287-22140-02iRX3#..LHD..DLX..EUR197808-198008

DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3#

main45287-22140-05iRX3#..LHD..DLX..EUR197808-198008

BEIGE,LOWER & TILT STEERING,BEIGE,TRIM4#

main45287-22150-01iRX3#..RHD..3H197612-197808

BLACK,LOWER,BLACK,TRIM2#

main45287-22150-03iRX3#..RHD..3H197612-197808

GRAY,LOWER,GRAY,TRIM1#

main45287-22150-05iRX3#..RHD..3H197612-197808

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22151-01iRX3#..RHD..3H197808-198008

BLACK,LOWER,BLACK,TRIM2#

main45287-22151-02iRX3#..RHD..3H197808-198008

DARK WINE,LOWER,RED/MAROON,TRIM3#

main45287-22151-05iRX3#..RHD..3H197808-198008

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22160-01iMX3#,RX3#..RHD..(3FC,4F)197612-197808

BLACK,LOWER,BLACK,TRIM2#

main45287-22160-03iMX3#,RX3#..RHD..(3FC,4F)197612-197808

GRAY,LOWER,GRAY,TRIM1#

main45287-22160-05iMX3#,RX3#..RHD..(3FC,4F)197612-197808

BEIGE,LOWER,BEIGE,TRIM4#

main45287-22161-01iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

BLACK,LOWER,BLACK,TRIM2#

main45287-22161-02iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

DARK WINE,LOWER,RED/MAROON,TRIM3#

main45287-22161-05iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)197808-198008

BEIGE,LOWER,BEIGE,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iMX3#,RX3#,TX30..RHD197612-198008

main45283-22020iRX3#..LHD197612-197912

45292SEAL, MAIN SHAFT LOWER DUST

main45292-22050iMX3#,RX3#,TX30197612-198008

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-22011iRX30..RHD..GL197808-198008

FOR TILT STEERING

main45082-22020iRX30..LHD..GL197808-198008

FOR TILT STEERING

main45807-22100iMX3#,RX3#..RHD197612-198008

main45807-22110iRX3#..LHD197612-197808

main45807-22111iRX3#..LHD..(DLX,STD)197808-198008

9011908185

main90119-08185

9016450048

main90164-50048

9112170830

main91121-70830

9161140816

main91611-40816

9161160616

main91611-60616

9165540618

main91655-40618

9331514012

main93315-14012

9331914008

main93319-14008

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9453101000

main94531-01000

9461211001

main94612-11001

30 parts on this diagram · 4 diagrams in section
