FLOOR SIDE MEMBER

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-14010iJZA80199305-199808

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-14010iJZA80199305-199808

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-14010iJZA80199305-199505

main57033-14011iJZA80199505-199607

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-14010iJZA80199305-199505

main57034-14011iJZA80199505-199607

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-24010iJZA80199305-199808

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-24010iJZA80199305-199808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14905iJZA80199305-199408

main57101-14906iJZA80199408-199607

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14908iJZA80199305-199408

main57102-14909iJZA80199408-199607

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14030iJZA80199305-199808

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14020iJZA80199305-199808

57111MEMBER, FRONT SIDE, RH

main57111-24030iJZA80199305-199408

main57111-24031iJZA80199408-199607

57112MEMBER, FRONT SIDE, LH

main57112-24020iJZA80199305-199505

main57112-24021iJZA80199505-199607

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-24020iJZA80199305-199808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-24020iJZA80199305-199808

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-14010iJZA80199305-199808

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-14010iJZA80199305-199808

57197BOX, TORQUE, FRONT RH

main57197-24020iJZA80199305-199808

57198BOX, TORQUE, FRONT LH

main57198-24020iJZA80199305-199808

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-14230iJZA80..TWT199305-199505

main57255-14231iJZA80..TWT199607-199808

main57255-24060iJZA80..TWC199305-199505

main57255-24061iJZA80..TWC199505-199808

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-24010iJZA80199305-199808

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-24010iJZA80199305-199808

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-24020iJZA80199305-199808

57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-24020iJZA80199305-199808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14250iJZA80..LB199305-199607

main57401-14251iJZA80..LB199607-199808

main57401-14260iJZA80..AET199305-199808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14250iJZA80..LB199305-199607

main57402-14251iJZA80..LB199607-199808

main57402-14260iJZA80..AET199305-199808

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-14040iJZA80199305-199808

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57425-14040iJZA80199305-199808

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-14010iJZA80199305-199808

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-14010iJZA80199305-199808

57451MEMBER, FRONT FLOOR CROSS

main57451-14050iJZA80199305-199808

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-14010iJZA80199305-199808

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-14010iJZA80199305-199808

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-14010iJZA80199305-199808

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-24020iJZA80199305-199808

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-24020iJZA80199305-199808

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14901iJZA80199305-199808

57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-24010×3iJZA80199305-199808

57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57468-24010×3iJZA80199305-199808

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-24010iJZA80..LB199305-199808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14170iJZA80199305-199808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14160iJZA80199305-199808

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-14010iJZA80199305-199808

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-14010iJZA80199305-199808

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-14030iJZA80199305-199808

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-14030iJZA80199305-199808

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-14100iJZA80199305-199808

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-14070iJZA80199305-199808

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-14010iJZA80199305-199808

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-14030iJZA80199305-199808

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58304-14020iJZA80199305-199808

9011908941

main90119-08941

9011910551

main90119-10551

9033330002

main90333-30002

9095001006

main90950-01006

9095001422

main90950-01422

9095001478

main90950-01478

9095001528

main90950-01528

9095001538

main90950-01538

9095001539

main90950-01539

9095001552

main90950-01552

9095001580

main90950-01580

9095001665

main90950-01665

9095001668

main90950-01668

9095001676

main90950-01676

9095001680

main90950-01680

9095001776

main90950-01776

9095001777

main90950-01777

9095001778

main90950-01778

9095001779

main90950-01779

9095006001

main90950-06001

9095006002

main90950-06002

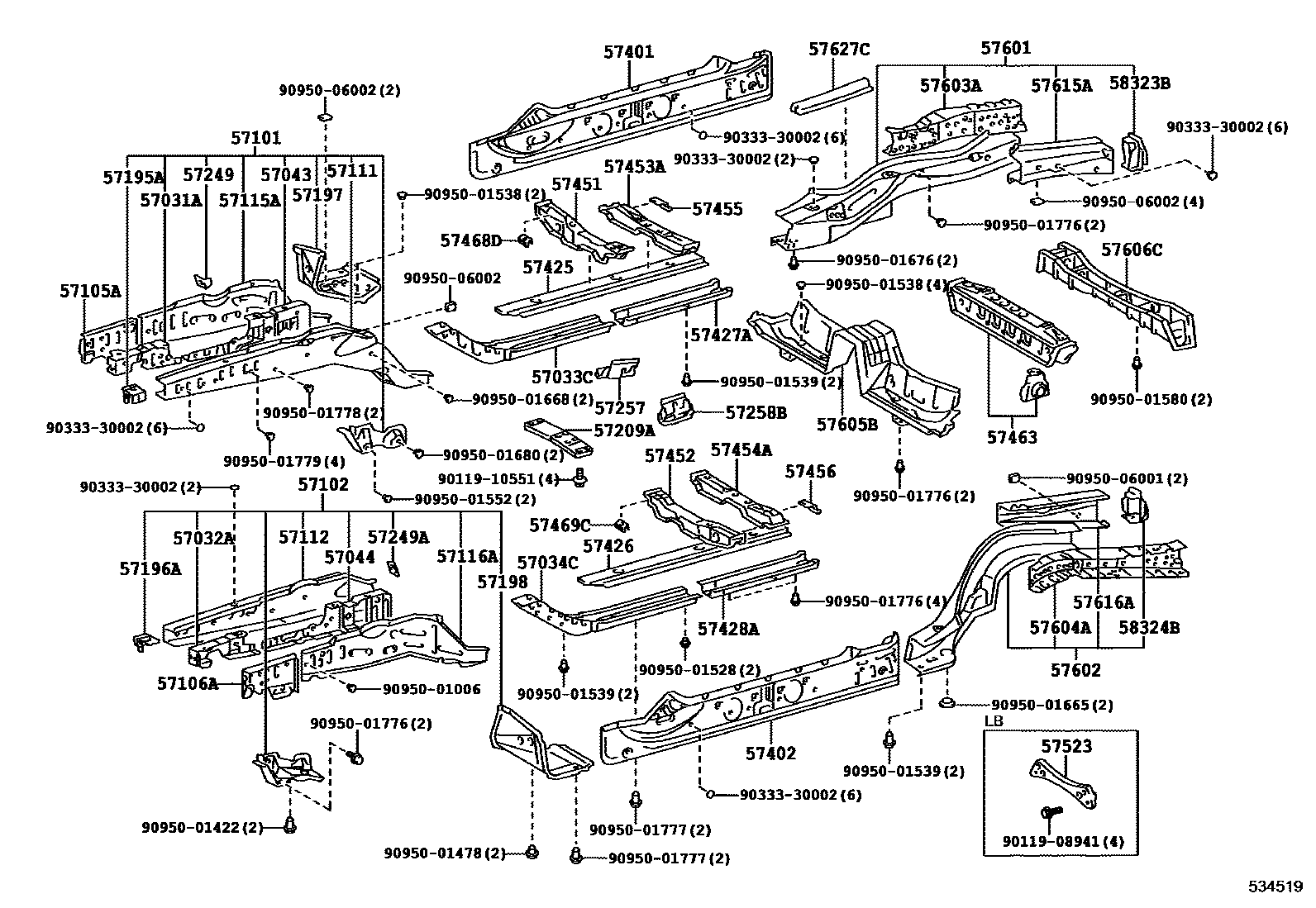

71 parts on this diagram · 1 diagram in section
