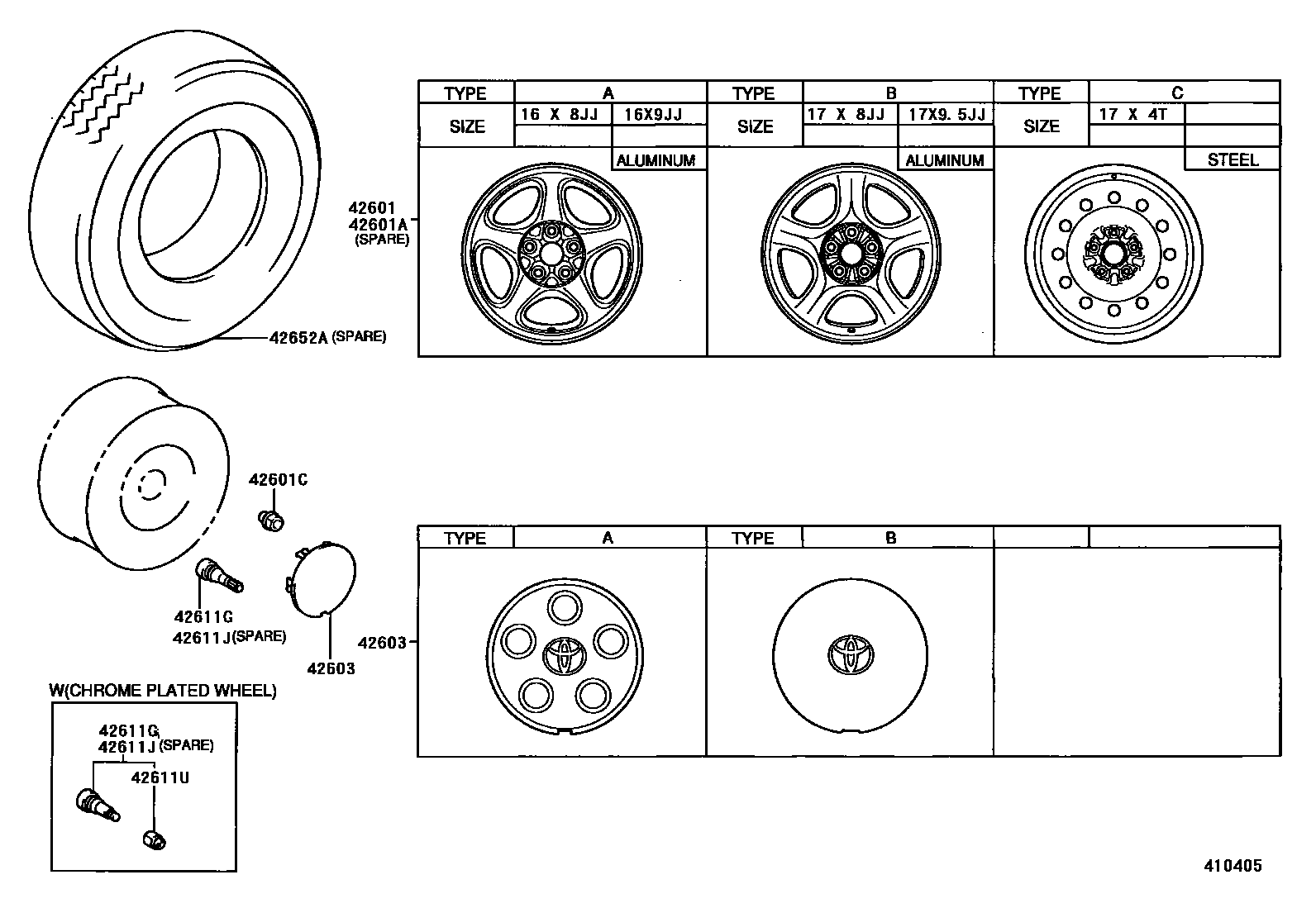

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-14790iJZA80..TWT199607-199709

17X8JJ,TYPE B:REFEER TO ILLUSTRATION,ALUMINUM POLISH

main42611-14890iJZA80..TWT199607-199709

17X9.5JJ,TYPE B:REFEER TO ILLUSTRATION,ALUMINUM POLISH

main42611-1B010iJZA80..TWC199305-199709

16X8JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1B020iJZA80..TWC199305-199709

16X9JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1B050iJZA80..TWT199305-199709

17X8JJ,TYPE B:REFER TO ILLUSTRATION

main42611-1B060iJZA80..TWT199305-199709

17X9.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-1B070iJZA80..TWC199709-199808

16X8JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1B080iJZA80..TWC199709-199808

16X9JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1B090iJZA80..TWT199709-199808

17X8JJ,TYPE B:REFER TO ILLUSTRATION

main42611-1B100iJZA80..TWT199709-199808

17X9.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-1B110iJZA80..TWT199709-199808

17X8JJ,TYPE B:REFEER TO ILLUSTRATION,ALUMINUM POLISH

main42611-1B120iJZA80..TWT199709-199808

17X9.5JJ,TYPE B:REFEER TO ILLUSTRATION,ALUMINUM POLISH

42601AWHEEL, DISC (FOR SPARE)

main42611-50090iJZA80199305-199808

17X4T,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01062iJZA80199305-199808

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14320iJZA80199305-199607

main42603-14340iJZA80199607-199808

TYPE A:REFER TO ILLUSTRATION

main42603-14350iJZA80..TWT199607-199808

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iJZA80199305-199808

main90942-05028iJZA80..TWT199607-199808

W(ALUMINUM POLISH)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZA80199305-199808

42611UCAP, TIRE VALVE

main90942-05029iJZA80..TWT199607-199808

42652ATIRE (FOR SPARE)

main42652-14740iJZA80199606-199808

T145/70R17

main42652-14780iJZA80199305-199606

T145/70R17

8 parts on this diagram · 2 diagrams in section
