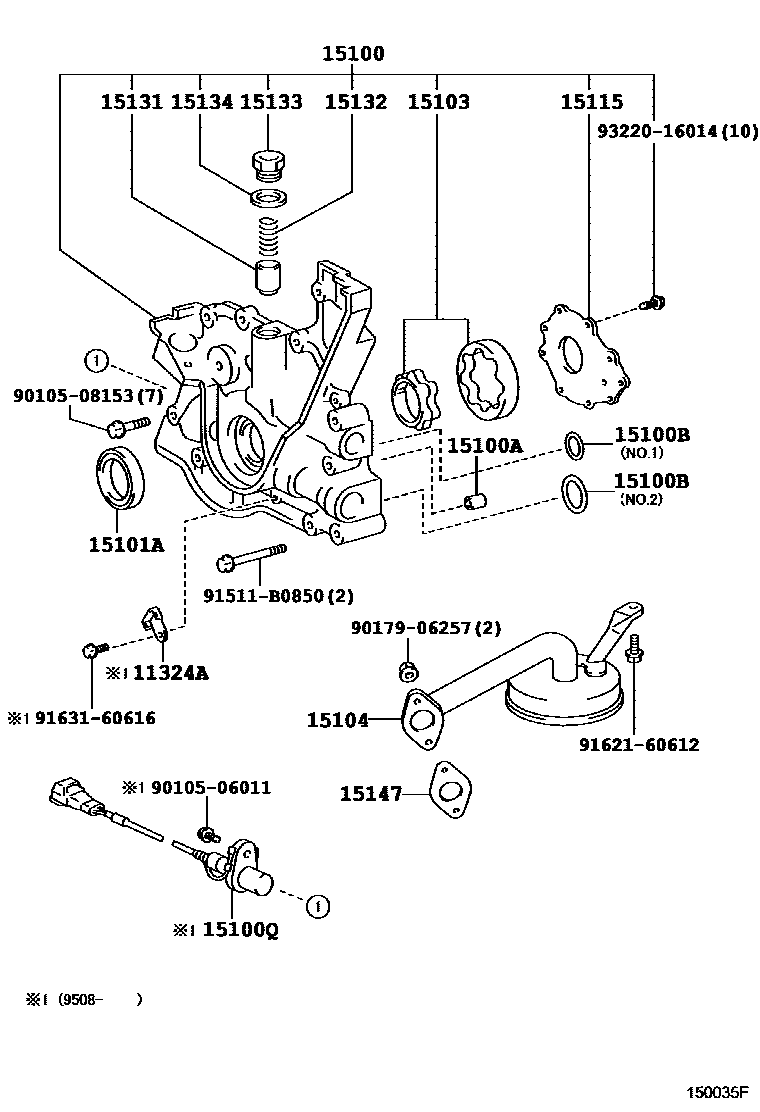

ENGINE OIL PUMP
11324APLATE, TIMING BELT
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
N0.1
N0.2
15100QSENSOR, CRANK POSITION
15101BODY SUB-ASSY, OIL PUMP
15101ASEAL(FOR CRANKSHAFT)
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15134GASKET, OIL PUMP RELIEF VALVE
15147GASKET, OIL STRAINER
9010506011
main90105-06011
9010508153
main90105-08153
9017906257
main90179-06257
91511B0850
main91511-B0850
9162160612
main91621-60612
9163160616
main91631-60616
9322016014
main93220-16014
22 parts on this diagram · 2 diagrams in section
