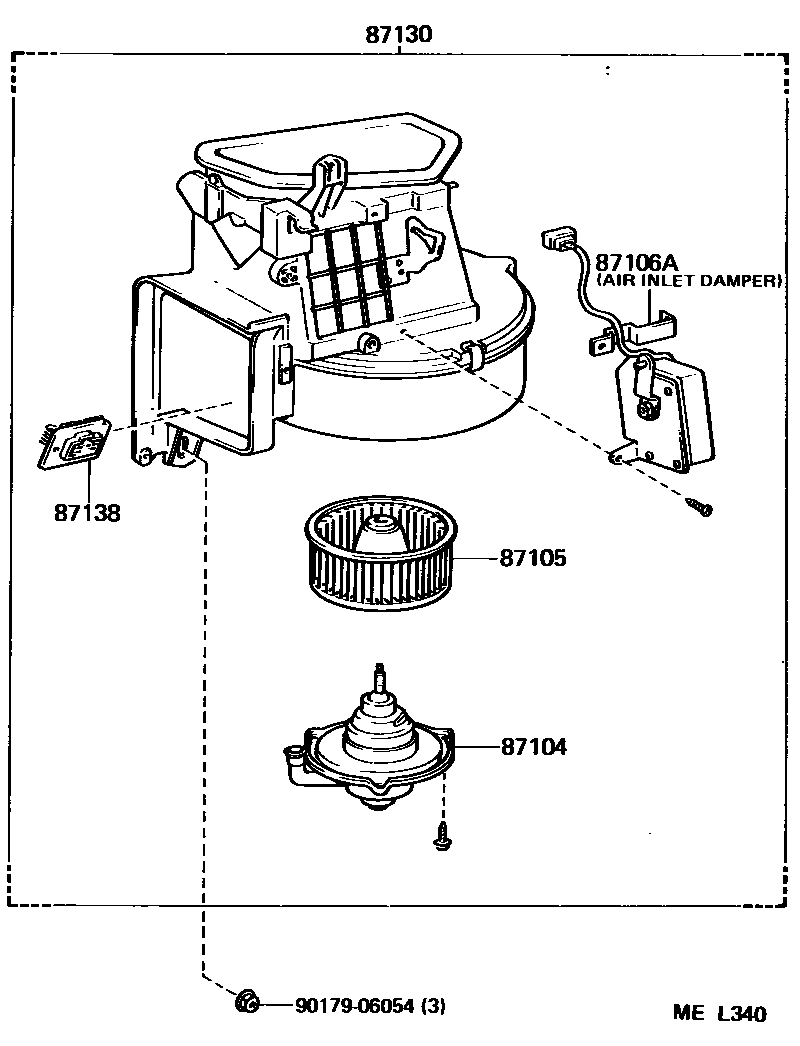

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-24020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iMA70199008-199305

87106ASERVO SUB-ASSY, DAMPER

main87106-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

AIR INLET DUMPER

main87106-14030iMA70199008-199305

AIR MIX DAMPER

main87106-14070iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MODE DAMPER

87130BLOWER ASSY, HEATER, FRONT

main87130-14130iMA70198808-198908

main87130-14210iMA70199205-199305

87138RESISTOR, HEATER BLOWER

main87138-14110iMA70199205-199305

main87138-24030iMA70198808-198908

9017906054

main90179-06054

6 parts on this diagram · 2 diagrams in section
