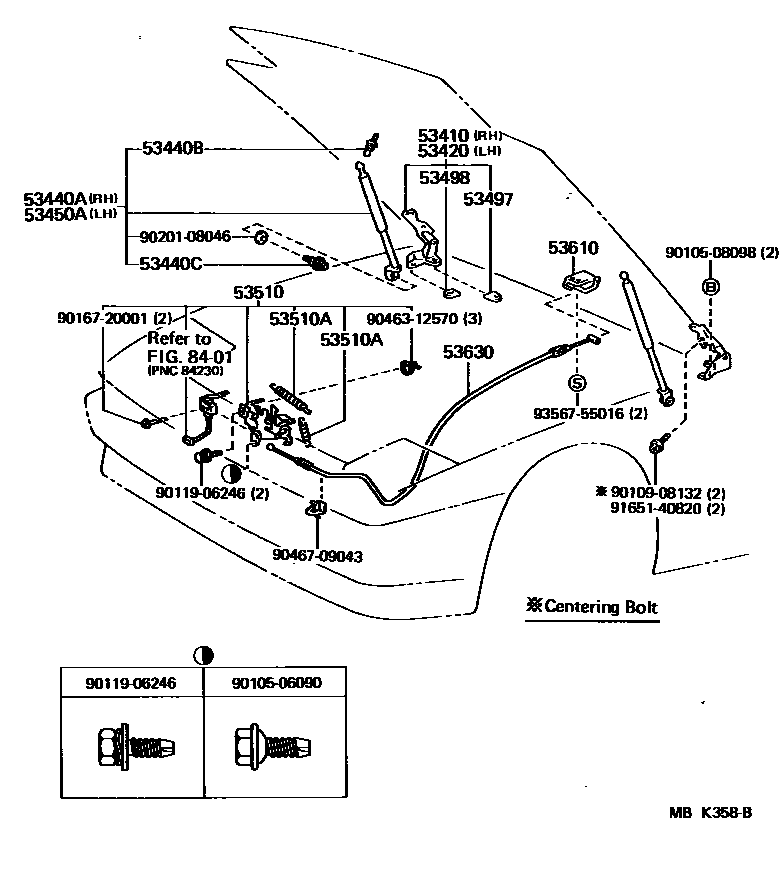

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-14110iMA70198601-198808

53420HINGE ASSY, HOOD, LH

main53420-14080iMA70198601-198808

53440ASUPPORT ASSY, HOOD, RH

main53440-19035iMA70198601-198808

53440BBOLT, HOOD SUPPORT, NO.1

main68961-14040×2iMA70198601-198808

53440CBOLT, HOOD SUPPORT, NO.2

main68961-96440×2iMA70198601-198808

53450ASUPPORT ASSY, HOOD, LH

main53450-19035iMA70198601-198808

53497PAD, HOOD HINGE, NO.1

main53497-14070×2iMA70198601-198808

53498PAD, HOOD HINGE, NO.2

main53498-14010×2iMA70198601-198808

53510LOCK ASSY, HOOD

main53510-14220iMA70..CND198601-198706

main53510-14221iMA70..CND198706-198808

main53510-14230iMA70..USA198601-198706

main53510-14231iMA70..USA198706-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iMA70198601-198808

WD=0.9,WD=0.9,CW=26.5

main90506-18024iMA70198601-198808

WD=1.8,CW=18

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-20060-15iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

main53601-20060-24iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main53601-20060-32iMA70198601-198808

MAROON,MAROON,TRIM3#

main53601-20060-33iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14240iMA70198601-198706

main53630-14241iMA70198706-198808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506090

main90105-06090

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9016720001

main90167-20001

9020108046

main90201-08046

9046312570

main90463-12570

9046709043

main90467-09043

9165140820

main91651-40820

9356755016

main93567-55016

23 parts on this diagram · 1 diagram in section
