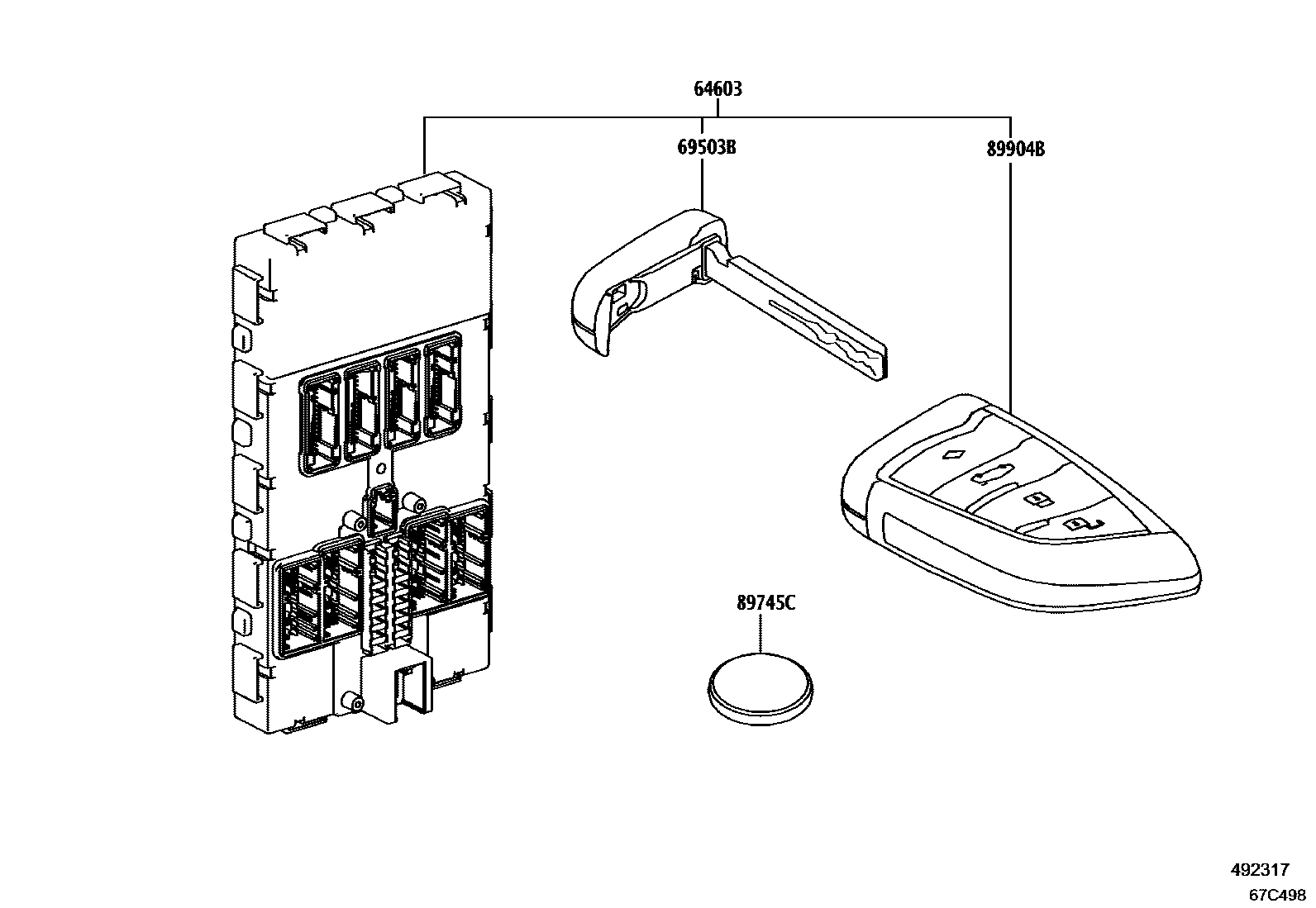

LOCK CYLINDER SET

0001 1 0002 1 0003 1

64603LOCK SET, DOOR

main84050-WAA03

69503CYLINDER SET, LOCK

main69005-WAA01iDB05,25,45,85202207

main69005-WAA02iDB06,26,46202207

69503BKEY, CUT

main69515-WAA01iDB0#,2#,4#,85202207

89745CBATTERY, TRANSMITTER

main89745-WAA01iDB0#,2#,4#,85202207

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

5 parts on this diagram · 3 diagrams in section
