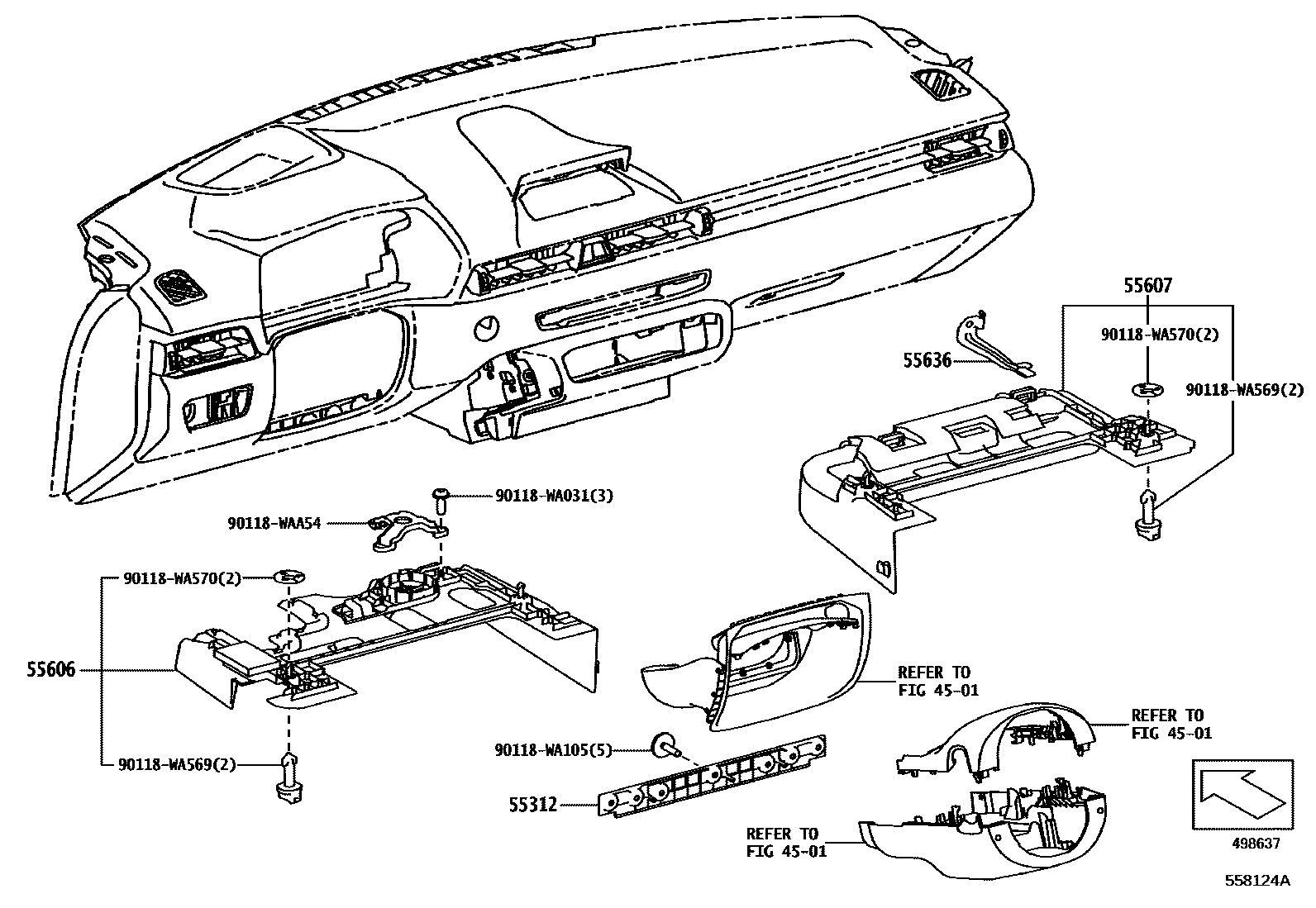

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

55312PANEL, INSTRUMENT, LOWER

main73900-WAA05

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-WAA01iDB05,25,45,85202207

main55606-WAA02iDB06,26,46202207

main55606-WAA03iDB05,25,45,85202207

main55606-WAA04iDB06,26,46202207

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-WAA01iDB05,25,45,85202207

main55607-WAA02iDB06,26,46202207

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55374-WAA02iDB06,26,46202207

90118WA031

main90118-WA031

90118WA105

main90118-WA105

90118WA569

main90118-WA569

90118WA570

main90118-WA570

90118WAA54

main90118-WAA54

10 parts on this diagram · 7 diagrams in section
