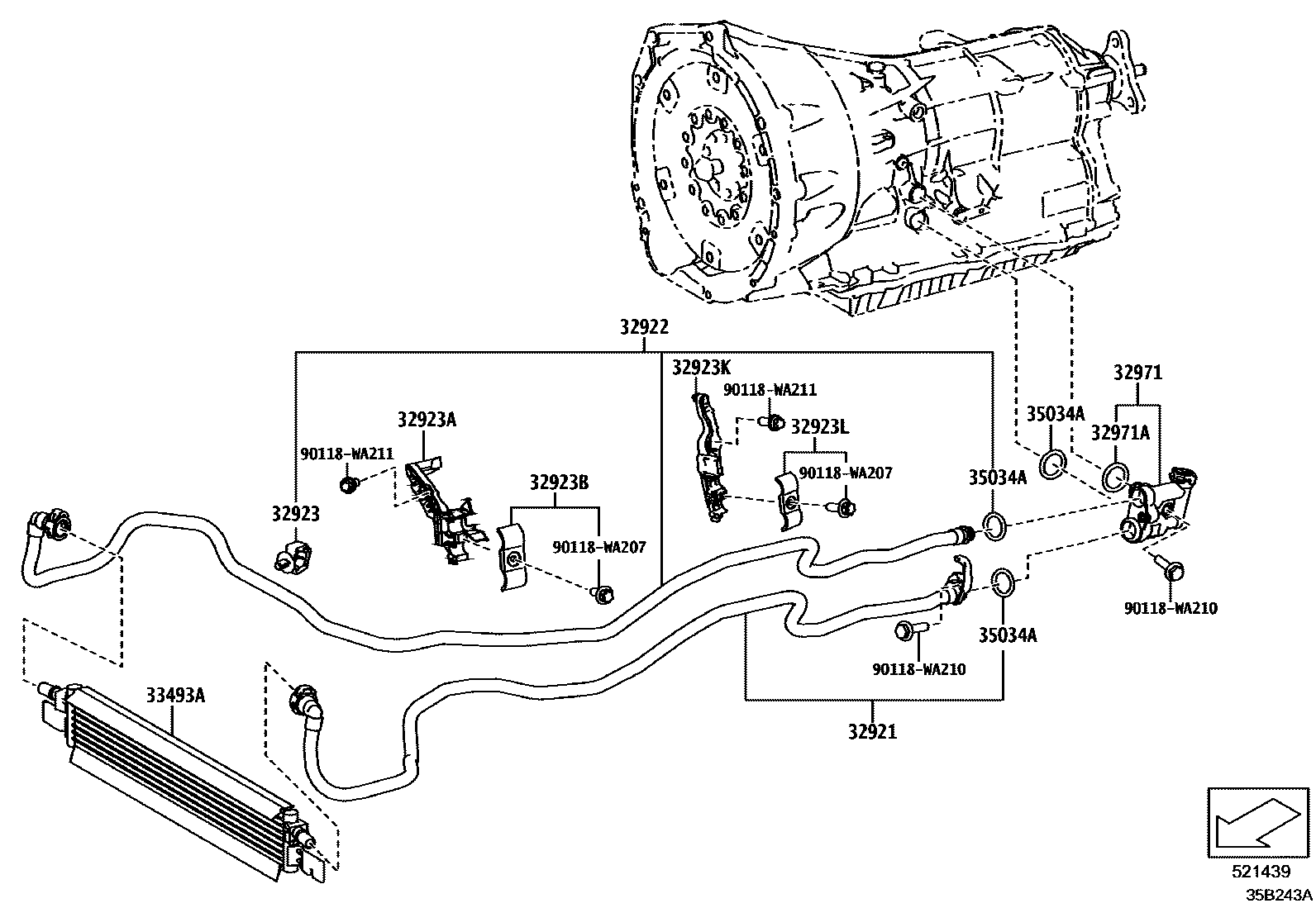

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-WAA01iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-WAA01iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90118-WA602iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-WAA01iDB2#,85202207

main32924-WAA03iDB0#,4#..8FC202207

TRANSMISSION-8HP51

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-WAA01iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32924-WAA02iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-WAA01iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32971THERMOSTAT, TRANSMISSION OIL

main32971-WAA01iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main90118-WA599iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main32910-WAA01iDB2#,85202207

main32910-WAA02iDB0#,4#..8FC202207

TRANSMISSION-8HP51

35034ARING, O

main90118-WA599×3iDB0#,4#..8FC; DB2#,85202207

TRANSMISSION-8HP51

90118WA207

main90118-WA207

90118WA210

main90118-WA210

90118WA211

main90118-WA211

14 parts on this diagram · 2 diagrams in section
