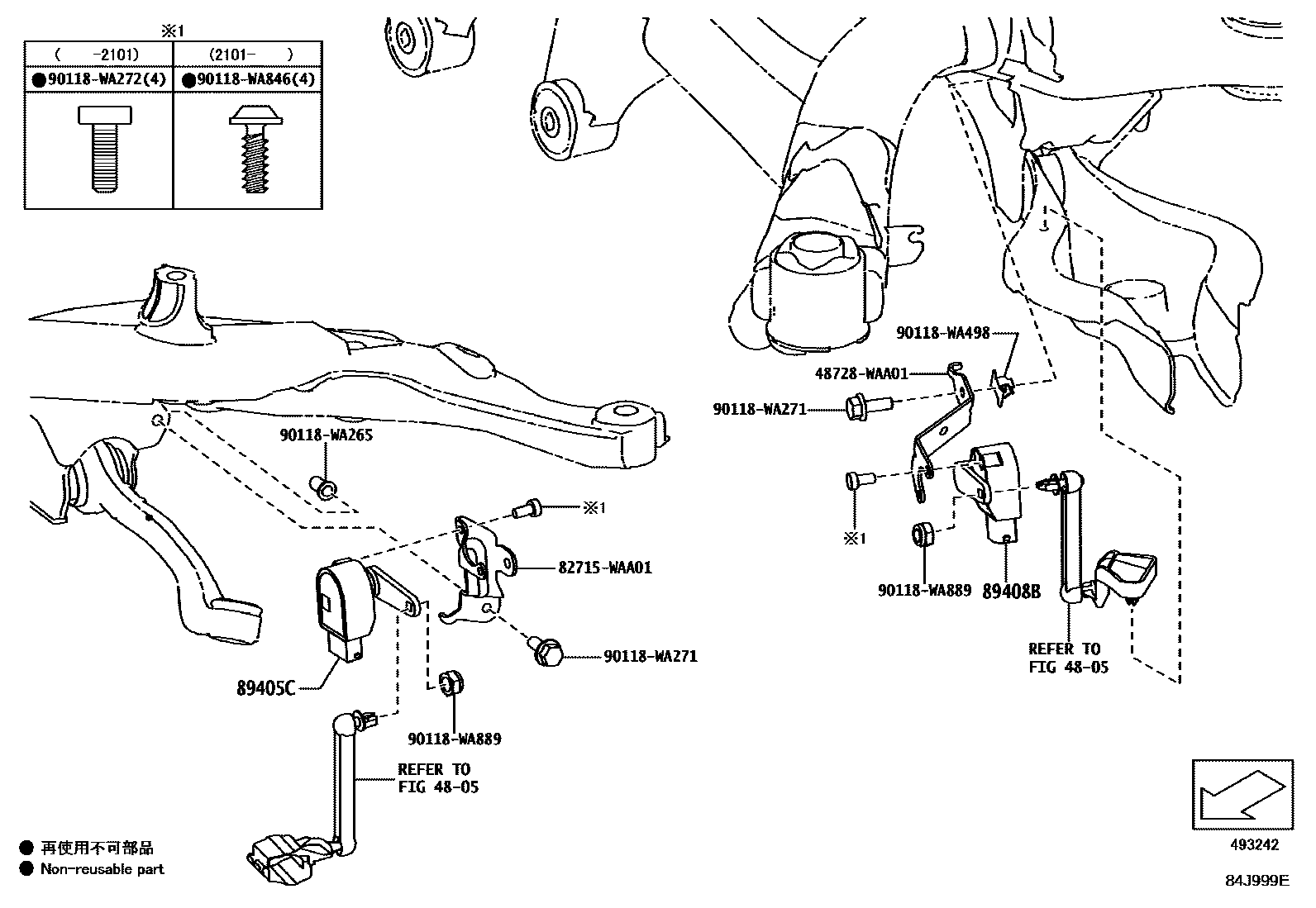

ELECTRONIC HEIGHT CONTROL

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

89405CSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89272-WAA01iDB82201903-202101

main89272-WAA02iDB0#,2#,4#,81202101

89408BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89272-WAA01iDB82201903-202101

main89272-WAA02iDB0#,2#,4#,81202101

48728WAA01BRACKET, LOAD SENSING VALVE SENSOR

main48728-WAA01

82715WAA01BRACKET,WIRING HARNESS CLAMP

main82715-WAA01

90118WA265

main90118-WA265

90118WA271

main90118-WA271

90118WA272

main90118-WA272

90118WA498

main90118-WA498

90118WA846

main90118-WA846

90118WA889

main90118-WA889

11 parts on this diagram · 1 diagram in section
