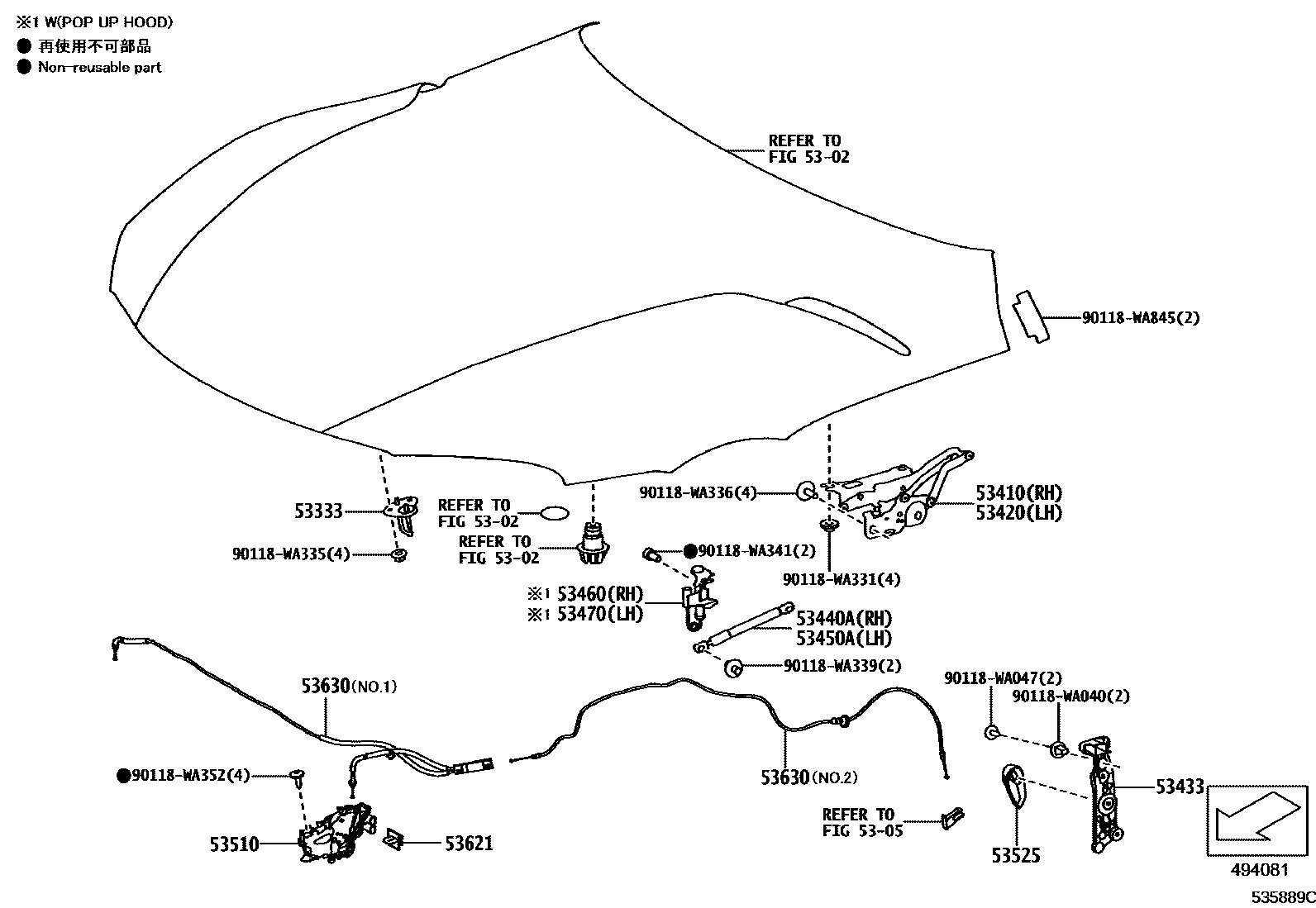

HOOD LOCK & HINGE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53333STRIKER, HOOD LOCK

main53306-WAA01iDB82201903-202006

53410HINGE ASSY, HOOD, RH

main53410-WAA01iDB82201903-202006

53420HINGE ASSY, HOOD, LH

main53420-WAA01iDB82201903-202006

53433BRACKET, HOOD SUPPORT

main55771-WAA01iDB21,41,81201903

main55771-WAA02iDB22,42201903-202006

53440ASUPPORT ASSY, HOOD, RH

main53440-WAA01iDB82201903-202006

53450ASUPPORT ASSY, HOOD, LH

main53440-WAA01iDB82201903-202006

53460LIFTER ASSY, POP UP HOOD, RH

main53460-WAA01

53470LIFTER ASSY, POP UP HOOD, LH

main53470-WAA01

53510LOCK ASSY, HOOD

main53510-WAA01iDB82201903-202006

RH

main53510-WAA03iDB2#,4#,81201903-202006

LH

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53601-WAA01iDB21,41,81201903

main53601-WAA02iDB22,42201903-202006

53621BRACKET, HOOD LOCK CONTROL CABLE

main90118-WA337iDB82201903-202006

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WAA01iDB82201903-202006

NO.1

main63630-WAA01iDB82201903-202006

NO.2

90118WA040

main90118-WA040

90118WA047

main90118-WA047

90118WA331

main90118-WA331

90118WA335

main90118-WA335

90118WA336

main90118-WA336

90118WA339

main90118-WA339

90118WA341

main90118-WA341

90118WA352

main90118-WA352

90118WA845

main90118-WA845

23 parts on this diagram · 1 diagram in section
