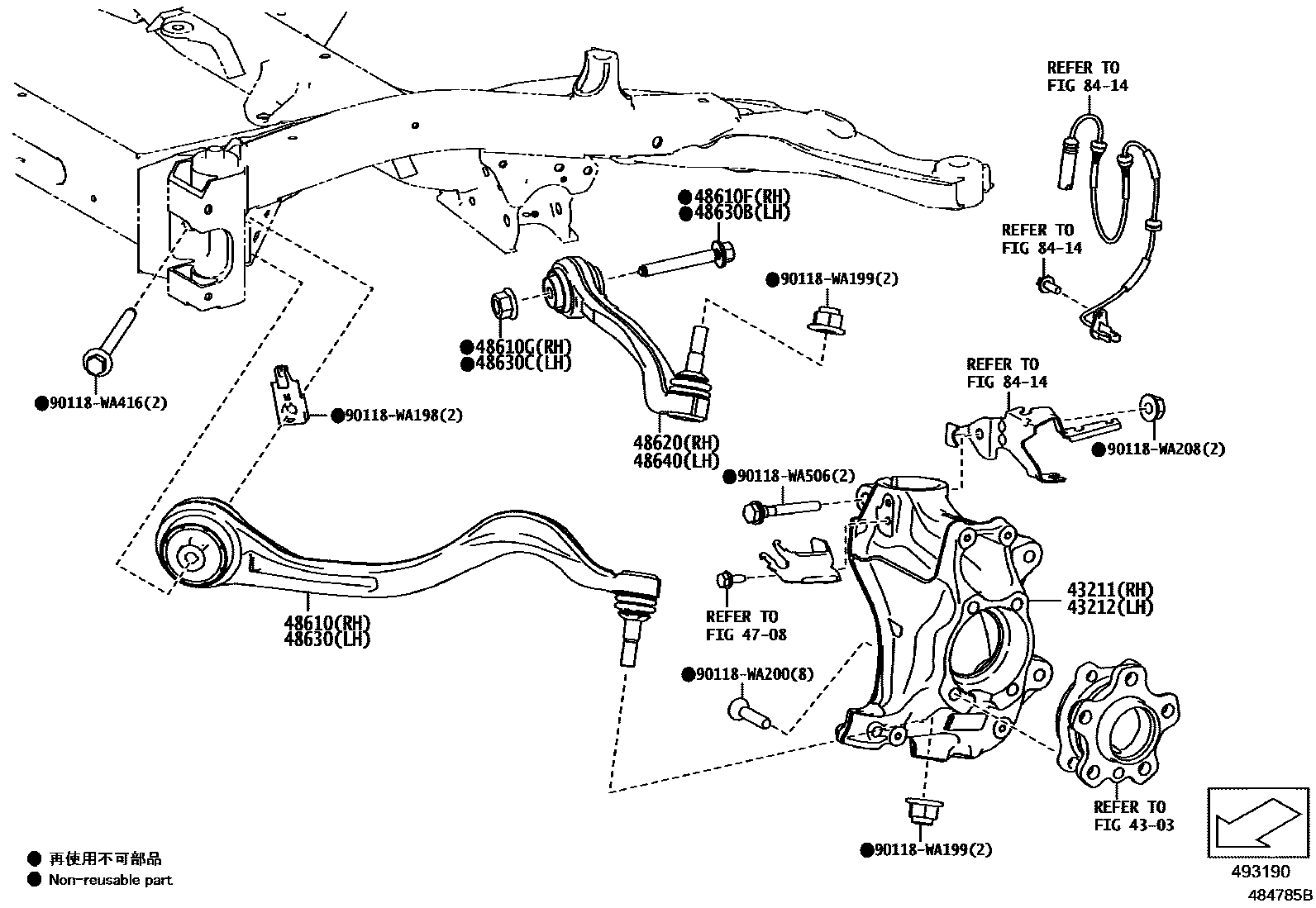

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-WAA01iDB2#,4#,81201903-202006

STD,REFER R/M

main43211-WAA02iDB82201903-202006

-30',REFER R/M

main43211-WAA03iDB82201903-202006

+30',REFER R/M

43212KNUCKLE, STEERING, LH

main43212-WAA01iDB0#201903-202006

STD,REFER R/M

main43212-WAA02iDB82201903-202006

-30',REFER R/M

main43212-WAA03iDB82201903-202006

+30',REFER R/M

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48620-WAA02iDB0#201903-202006

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90118-WA196iDB82201903-202006

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90118-WA197iDB82201903-202006

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48610-WAA01iDB82201903-202006

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48640-WAA02iDB82201903-202006

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90118-WA196iDB82201903-202006

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90118-WA197iDB82201903-202006

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48630-WAA01iDB82201903-202006

8414ABS & VSC

→ Go to FIG 84-14

90118WA198

main90118-WA198

90118WA199

main90118-WA199

90118WA200

main90118-WA200

90118WA208

main90118-WA208

90118WA416

main90118-WA416

90118WA506

main90118-WA506

19 parts on this diagram · 1 diagram in section
