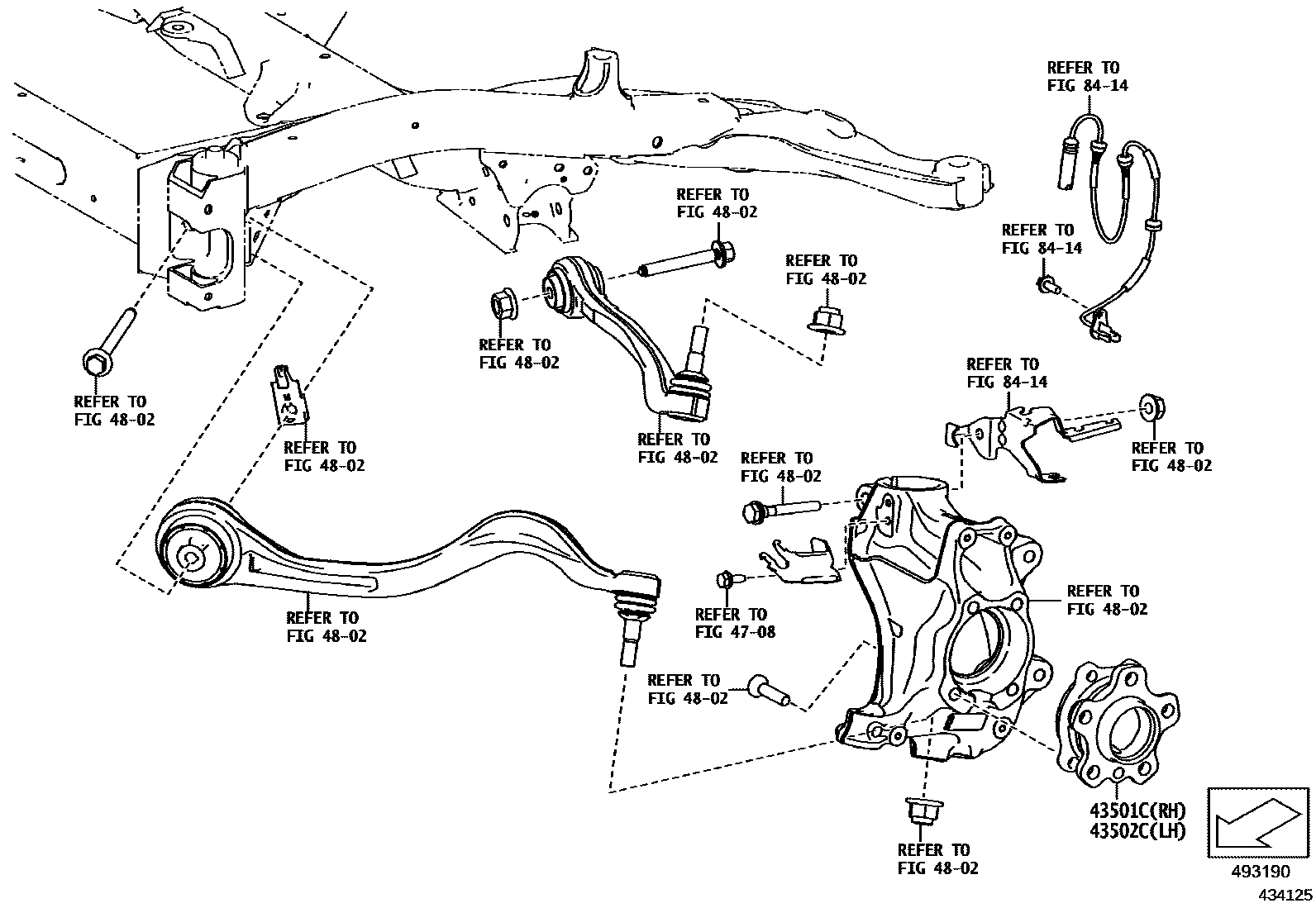

FRONT AXLE HUB

0001 1 0002 1 0003 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-WAA01iDB82201903-202105

main43550-WAA02iDB2#,4#,81202106

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-WAA01iDB82201903-202105

main43550-WAA02iDB2#,4#,81202106

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

5 parts on this diagram · 3 diagrams in section
