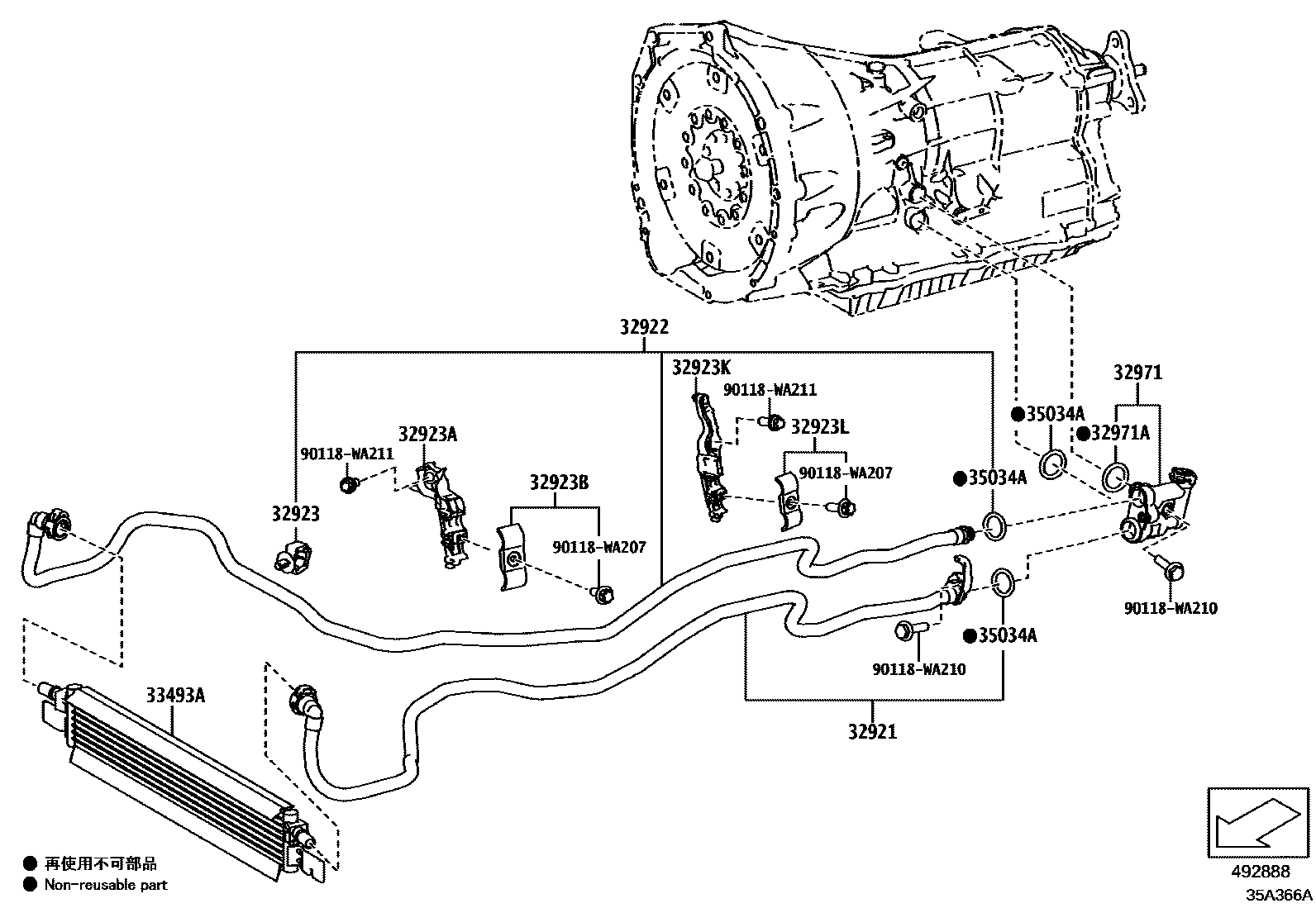

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-WAA01iDB82201903-202006

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-WAA01iDB82201903-202006

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90118-WA602iDB82201903-202006

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-WAA01iDB82201903-202006

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-WAA01iDB82201903-202006

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32924-WAA02iDB82201903-202006

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-WAA01iDB82201903-202006

32971THERMOSTAT, TRANSMISSION OIL

main32971-WAA01iDB82201903-202006

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main90118-WA599iDB82201903-202006

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main32910-WAA01iDB82201903-202006

main32910-WAA02iDB4#201903

35034ARING, O

main90118-WA599iDB82201903-202006

90118WA207

main90118-WA207

90118WA210

main90118-WA210

90118WA211

main90118-WA211

14 parts on this diagram · 1 diagram in section
