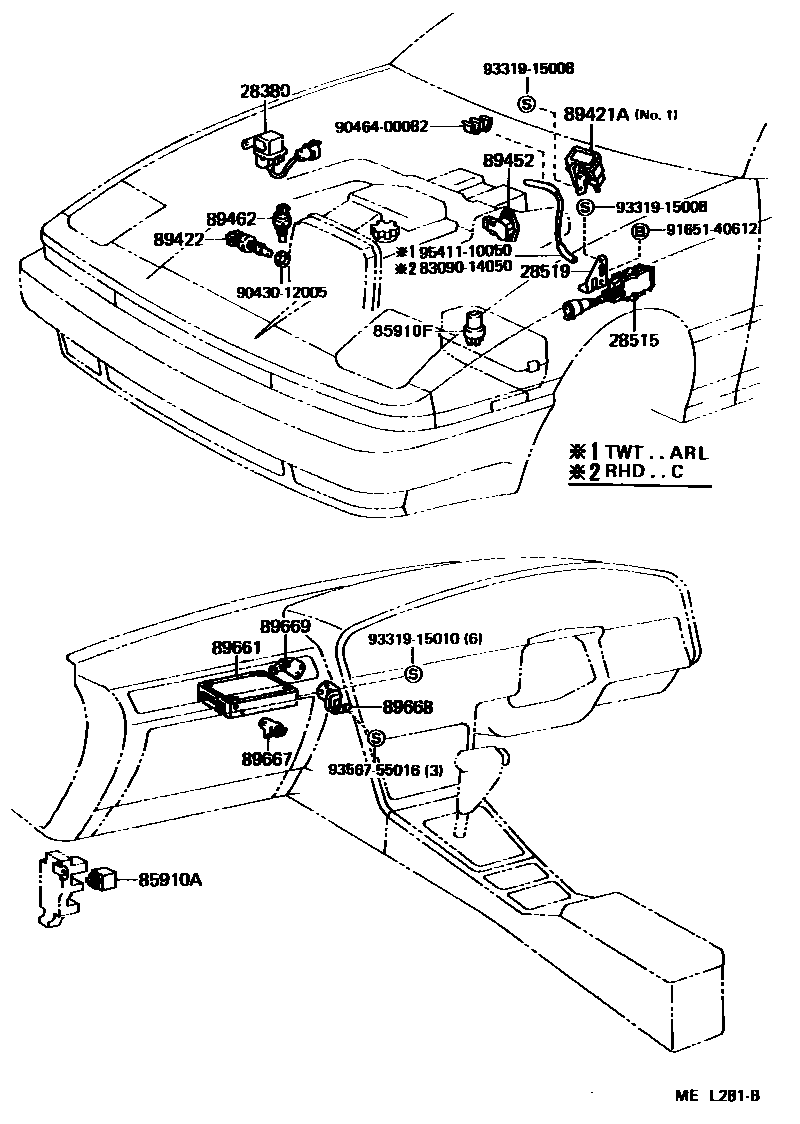

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89421ASENSOR, TURBO PRESSURE
NO.1
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
8309014050
main83090-14050
9043012005
main90430-12005
9046400082
main90464-00082
9165140612
main91651-40612
9331915008
main93319-15008
9331915010
main93319-15010
9356755016
main93567-55016
9541110050
main95411-10050
21 parts on this diagram · 1 diagram in section
