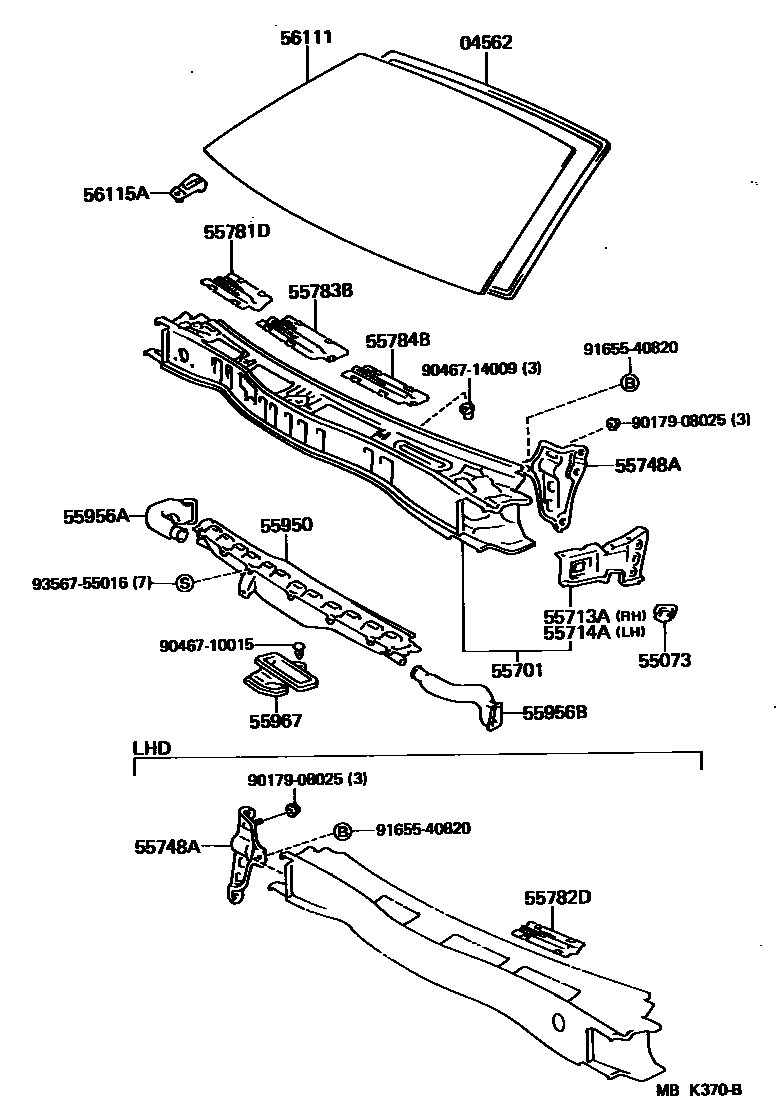

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
COLD SPEC
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
COLD SPEC
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
COLD SPEC
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
55967NOZZLE, DEFROSTER, LOWER
56111GLASS, WINDSHIELD
*TZT,T=5.0,*TZT,T=5.0
*TZT,T=5.0,*TZT,T=5.0
*TL,T=5.3,*TL,T=5.3
*TL,T=5.3,*TL,T=5.3
*LAM,T=5.3,*LAM,T=5.3,SUN SHADE
*LAM,T=5.3,*LAM,T=5.3,SUN SHADE
*TL,T=5.3,*TL,T=5.3,SUN SHADE
*TL,T=5.3,*TL,T=5.3,SUN SHADE
56115ASTOPPER, WINDSHIELD GLASS, NO.1
9017908025
main90179-08025
9046710015
main90467-10015
9046714009
main90467-14009
9165540820
main91655-40820
9356755016
main93567-55016
21 parts on this diagram · 1 diagram in section
