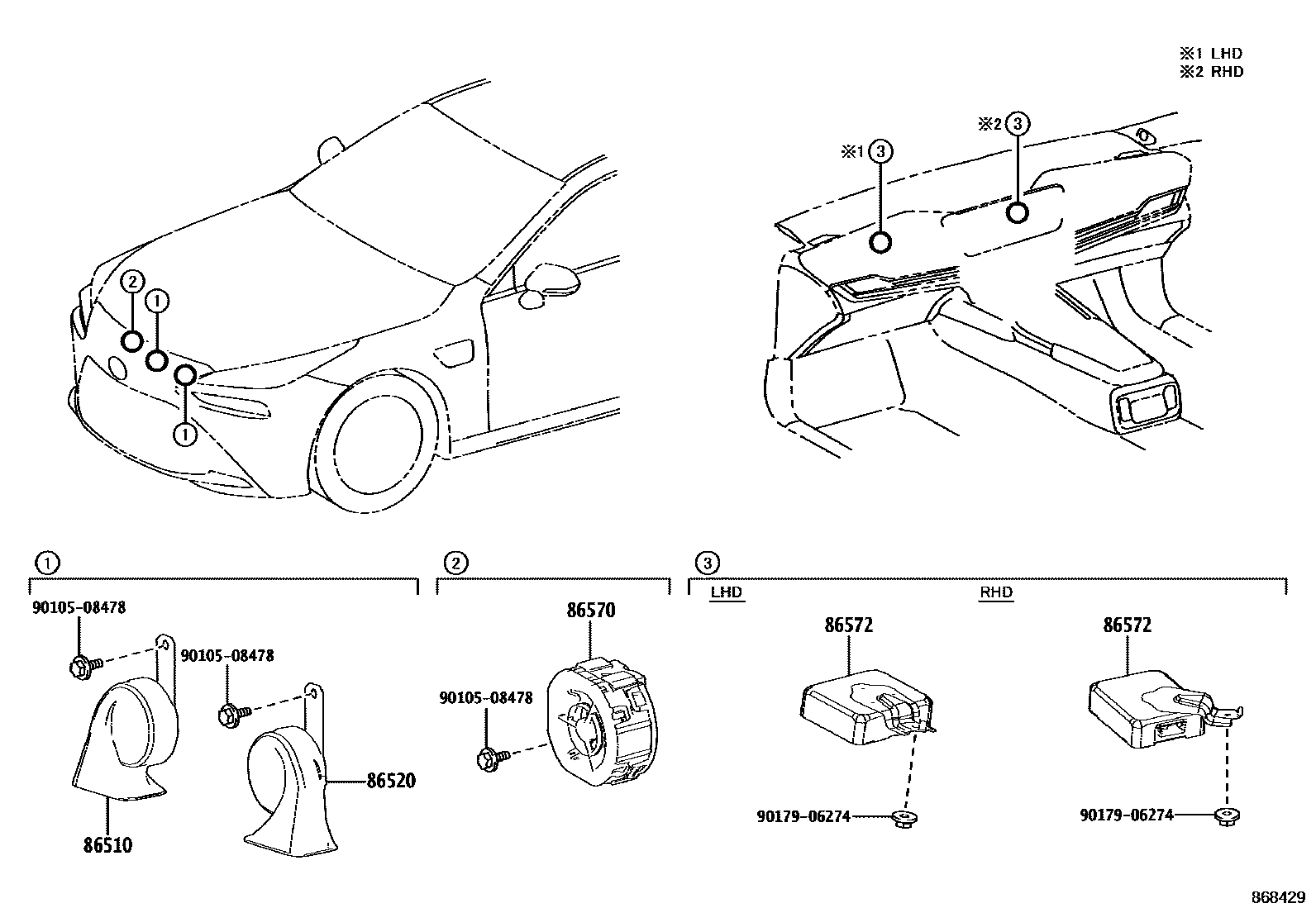

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-30740iJPD20202011-202411

86520HORN ASSY, LOW PITCHED

main86520-30650iJPD20202011-202411

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30080iJPD20202011-202108

COSTA RICA SPEC

main86570-30080iJPD20202011-202108

SAUDI ARABIA SPEC

main86570-30080iJPD20202011-202108

AUSTRALIA, NEW ZEALAND SPEC

main86570-30080iJPD20202011-202108

U.A.E. SPEC

main86570-30080iJPD20202011-202108

NEW ZEALAND SPEC

main86570-62040iJPD20..LHD..H202108-202411

SAUDI ARABIA SPEC

main86570-62040iJPD20..LHD..H202108-202411

NEW ZEALAND SPEC

main86570-62040iJPD20..LHD..H202108-202411

U.A.E. SPEC

main86570-62040iJPD20..LHD..H202108-202411

COSTA RICA SPEC

main86570-62040iJPD20202108-202312

AUSTRALIA, NEW ZEALAND SPEC

main86570-62040iJPD20202312-202411

AUSTRALIA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-62010iJPD20..RHD202011-202108

AUSTRALIA, NEW ZEALAND SPEC

main86572-62010iJPD20..RHD..S202011-202108

NEW ZEALAND SPEC

main86572-62030iJPD20..LHD..H202011-202108

U.A.E. SPEC

main86572-62030iJPD20..LHD202011-202108

COSTA RICA SPEC

main86572-62030iJPD20..LHD202011-202108

SAUDI ARABIA SPEC

main86572-62070iJPD20..RHD..S202108-202312

AUSTRALIA, NEW ZEALAND SPEC

main86572-62070iJPD20..RHD..S202108-202312

NEW ZEALAND SPEC

main86572-62080iJPD20..LHD..H202108-202312

SAUDI ARABIA SPEC

main86572-62080iJPD20..LHD..H202108-202312

COSTA RICA SPEC

main86572-62080iJPD20..LHD..H202108-202312

U.A.E. SPEC

main865H2-62010iJPD20..LHD202312-202411

COSTA RICA SPEC

main865H2-62010iJPD20..LHD..H202312-202411

U.A.E. SPEC

main865H2-62010iJPD20..LHD..H202312-202411

SAUDI ARABIA SPEC

main865H2-62020iJPD20..RHD..(B,S)202312-202411

AUSTRALIA SPEC

main865H2-62020iJPD20..RHD202312-202411

NEW ZEALAND SPEC

9010508478

main90105-08478

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
