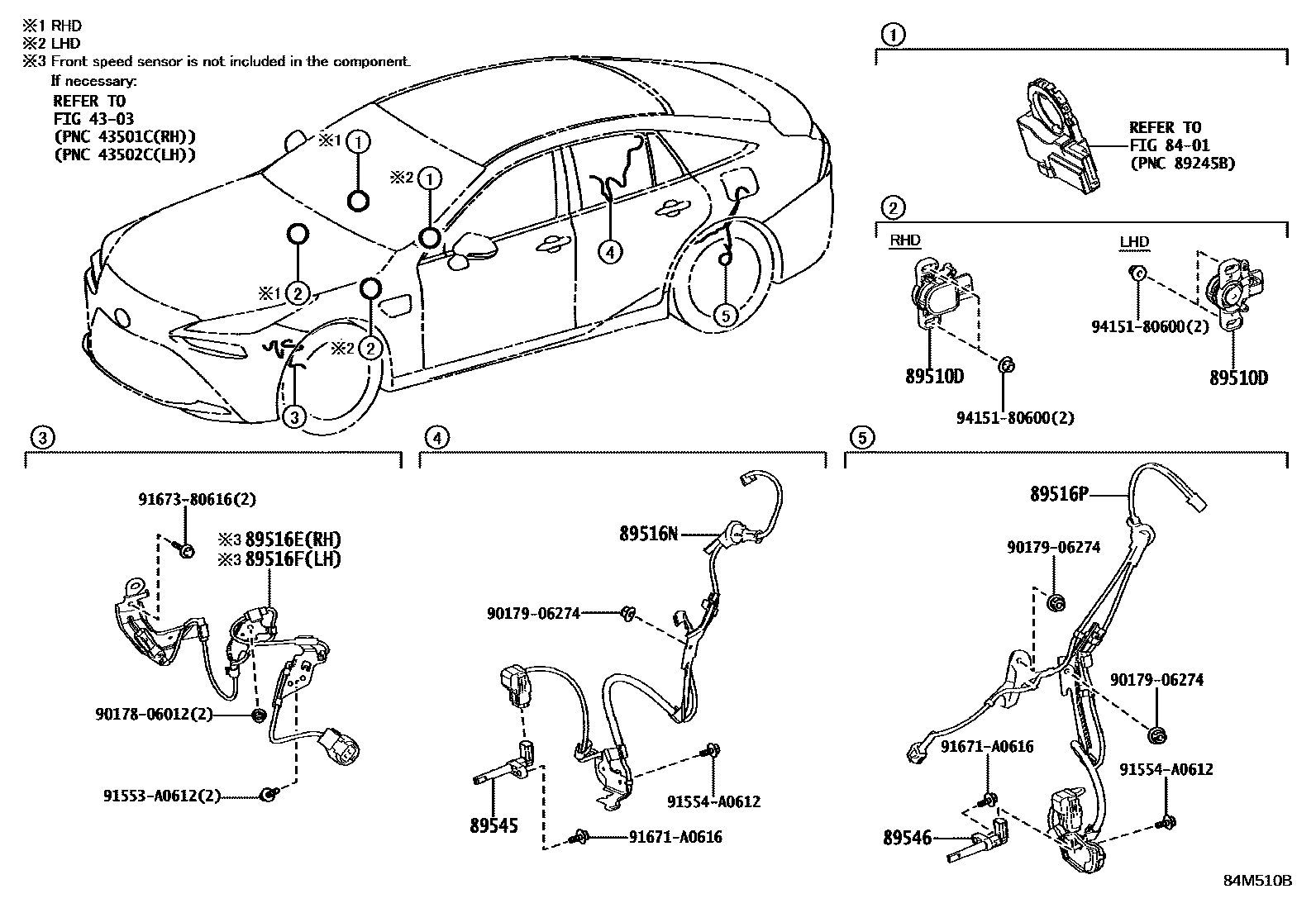

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iJPD20..LHD202011-202411

main89510-47040iJPD20..RHD202011-202411

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-62010iJPD20202011-202411

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-62020iJPD20202011-202411

89516NWIRE, SKID CONTROL SENSOR, REAR RH

main89516-62030iJPD20202011-202411

89516PWIRE, SKID CONTROL SENSOR, REAR LH

main89516-50210iJPD20202011-202411

89545SENSOR, SPEED, REAR RH

main89545-30070iJPD20202011-202411

89546SENSOR, SPEED, REAR LH

main89546-30070iJPD20202011-202411

9017806012

main90178-06012

9017906274

main90179-06274

91553A0612

main91553-A0612

91554A0612

main91554-A0612

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
