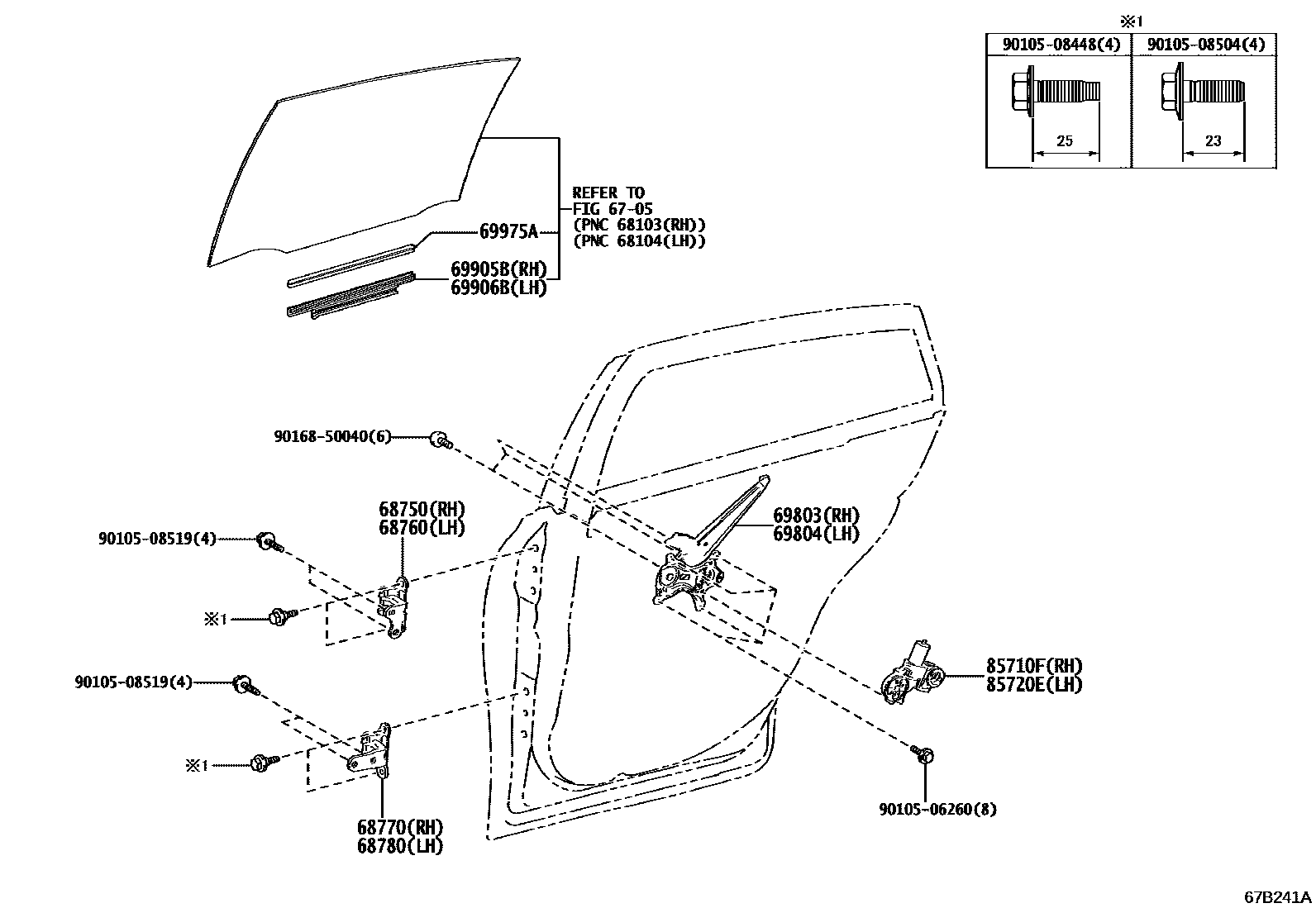

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-76020iJPD20202312-202411

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-76020iJPD20202312-202411

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-76020iJPD20202312-202411

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-76020iJPD20202312-202411

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-47020iJPD20202312-202411

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-47020iJPD20202312-202411

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-62020iJPD20202312-202411

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-62020iJPD20202312-202411

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-48040×2iJPD20202312-202411

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-16200iJPD20202312-202411

main85720-62040iJPD20202011-202312

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-16220iJPD20202312-202411

main85710-62040iJPD20202011-202312

9010506260

main90105-06260

9010508448

main90105-08448

9010508504

main90105-08504

9010508519

main90105-08519

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
