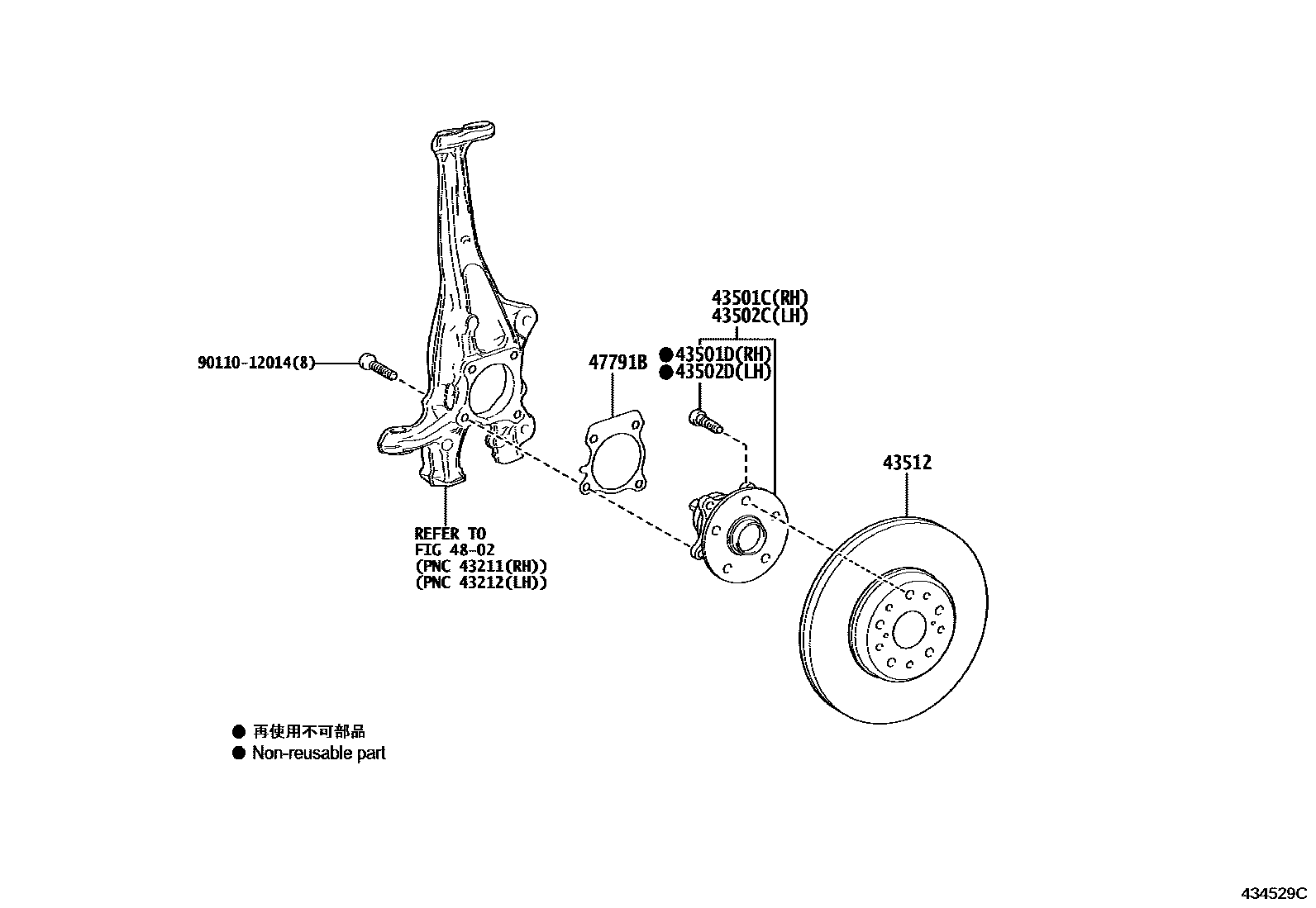

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-62020iJPD20202011-202411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iJPD20202011-202411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-62020iJPD20202011-202411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iJPD20202011-202411

43512DISC, FRONT

main43512-30440iJPD20202309-202411

main43512-50240iJPD20202011-202308

47791BPLATE, DISC BRAKE AIR GUIDE

main47791-11010iJPD20202011-202411

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011012014

main90110-12014

8 parts on this diagram · 1 diagram in section
