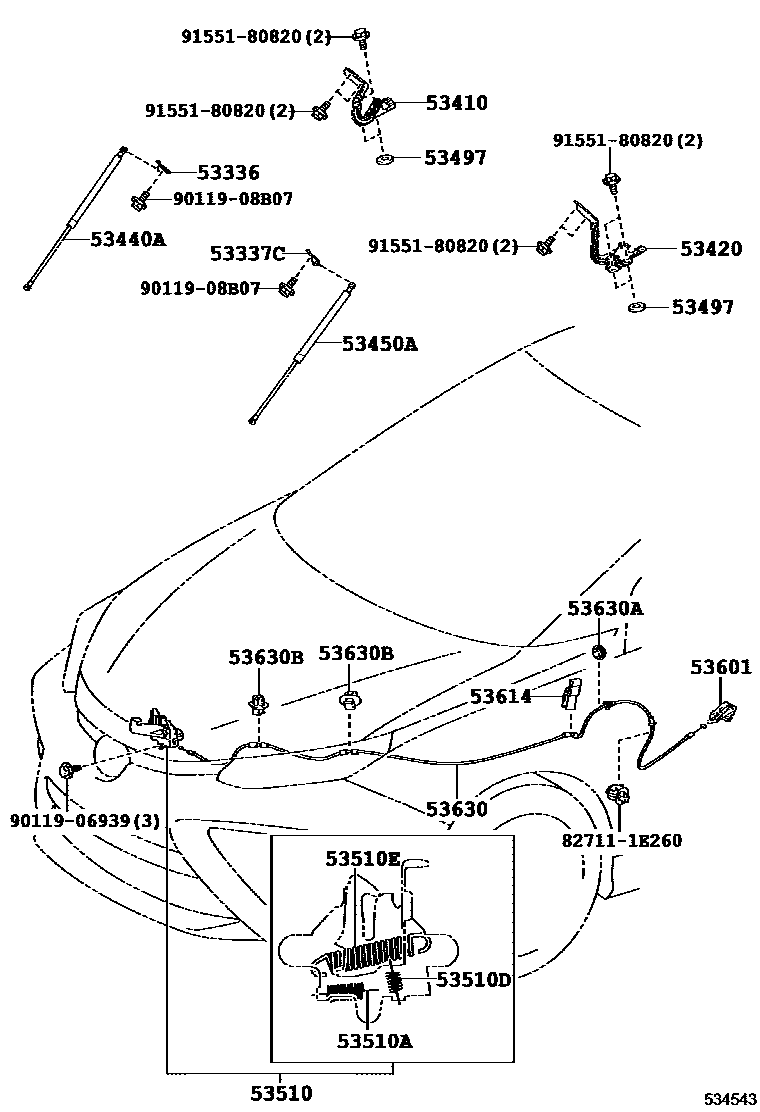

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-75020iJPD10201506-202005

53337CBRACKET, HOOD STAY, LH

main53337-75020iJPD10201506-202005

53410HINGE ASSY, HOOD, RH

main53410-62020iJPD10201506-202005

53420HINGE ASSY, HOOD, LH

main53420-62020iJPD10201506-202005

53440ASUPPORT ASSY, HOOD, RH

main53440-62010iJPD10201506-201611

main53440-62011iJPD10201612-201806

main53440-62012iJPD10201807-202005

53450ASUPPORT ASSY, HOOD, LH

main53450-62010iJPD10201506-201611

main53450-62011iJPD10201612-201806

main53450-62012iJPD10201807-202005

53497PAD, HOOD HINGE, NO.1

main53497-20070×2iJPD10201506-202005

T=2.0

main53497-42010×2iJPD10201506-202005

T=0.5

53510LOCK ASSY, HOOD

main53510-62010iJPD10..RHD201506-201905

main53510-62011iJPD10..RHD201906-202005

main53510-62020iJPD10..LHD201506-201905

main53510-62021iJPD10..LHD201906-202005

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iJPD10201506-202005

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iJPD10201506-202005

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iJPD10201506-202005

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A9iJPD10201506-202005

WARM WHITE,TRIM00

main53601-52010-C0iJPD10201506-201612

BLACK,TRIM01,8#

main53601-52010-C1iJPD10201612-202005

BLACK,TRIM01,8#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47020iJPD10201506-202005

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-62010iJPD10..RHD201506-202005

main53630-62020iJPD10..LHD201506-202005

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main82817-47G30×2iJPD10201506-202005

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iJPD10201506-202005

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906939

main90119-06939

9011908B07

main90119-08B07

9155180820

main91551-80820

20 parts on this diagram · 2 diagrams in section
