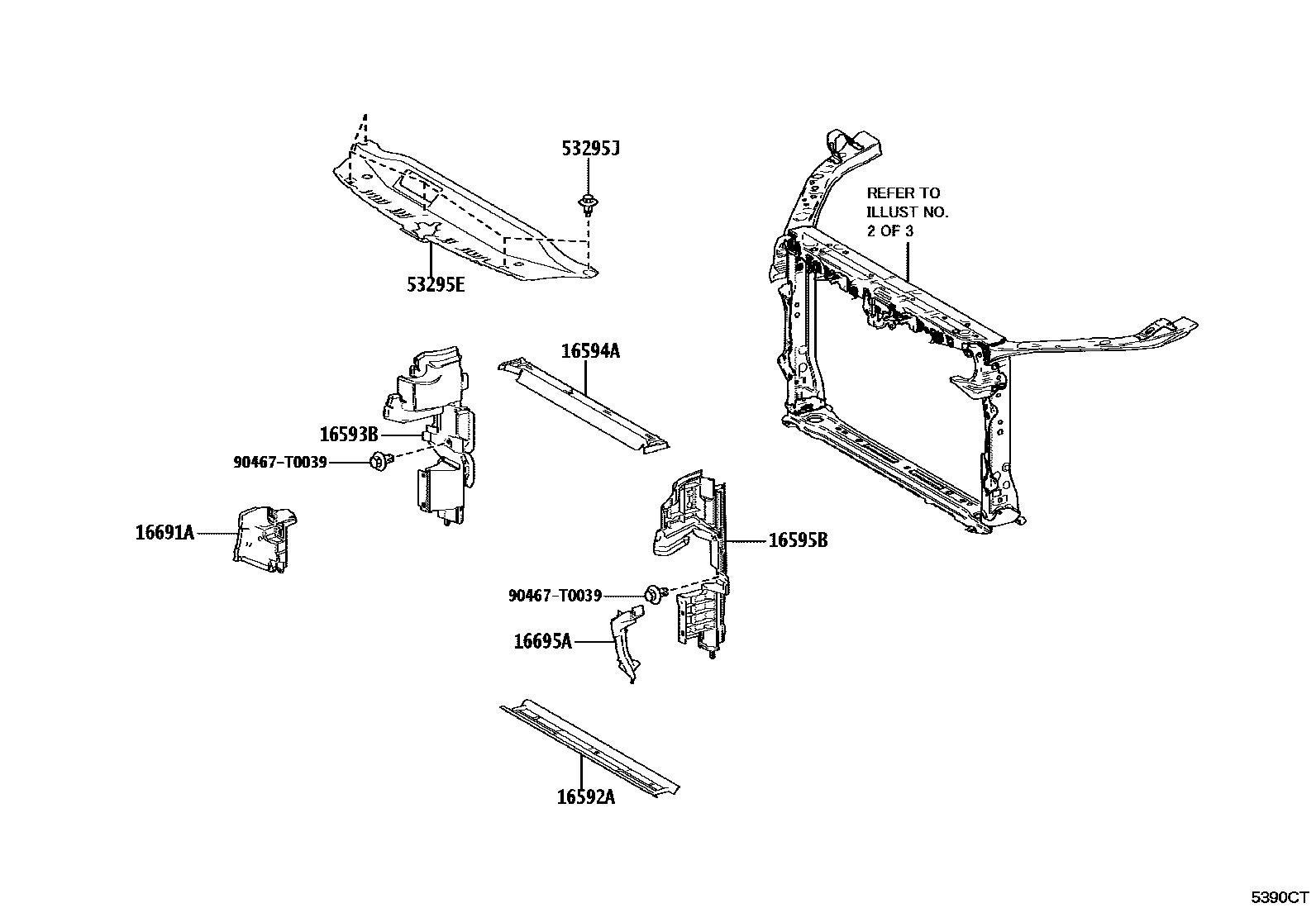

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1AIR GUIDE & RADIATOR SUPPORT 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL 0005 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0030iA25,M20..AXVA80,AXVH80,MXVA80202410

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0710iA25..AXVH80202410

main16593-F0720iA25,M20..AXVA80,MXVA80202410

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0030iA25,M20..AXVA80,AXVH80,MXVA80202410

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0710iA25..AXVH80202410

main16595-F0720iA25,M20..AXVA80,MXVA80202410

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0320iA25,M20..AXVA80,AXVH80,MXVA80202410

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0400iA25,M20..AXVA80,AXVH80,MXVA80202410

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06260iAXVA80,AXVH80,MXVA80202410

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217×5iAXVA80,AXVH80,MXVA80202410

(J)

main90467-T0048×5iAXVA80,AXVH80,MXVA80202410

(L)

90467T0039

main90467-T0039

9 parts on this diagram · 5 diagrams in section
