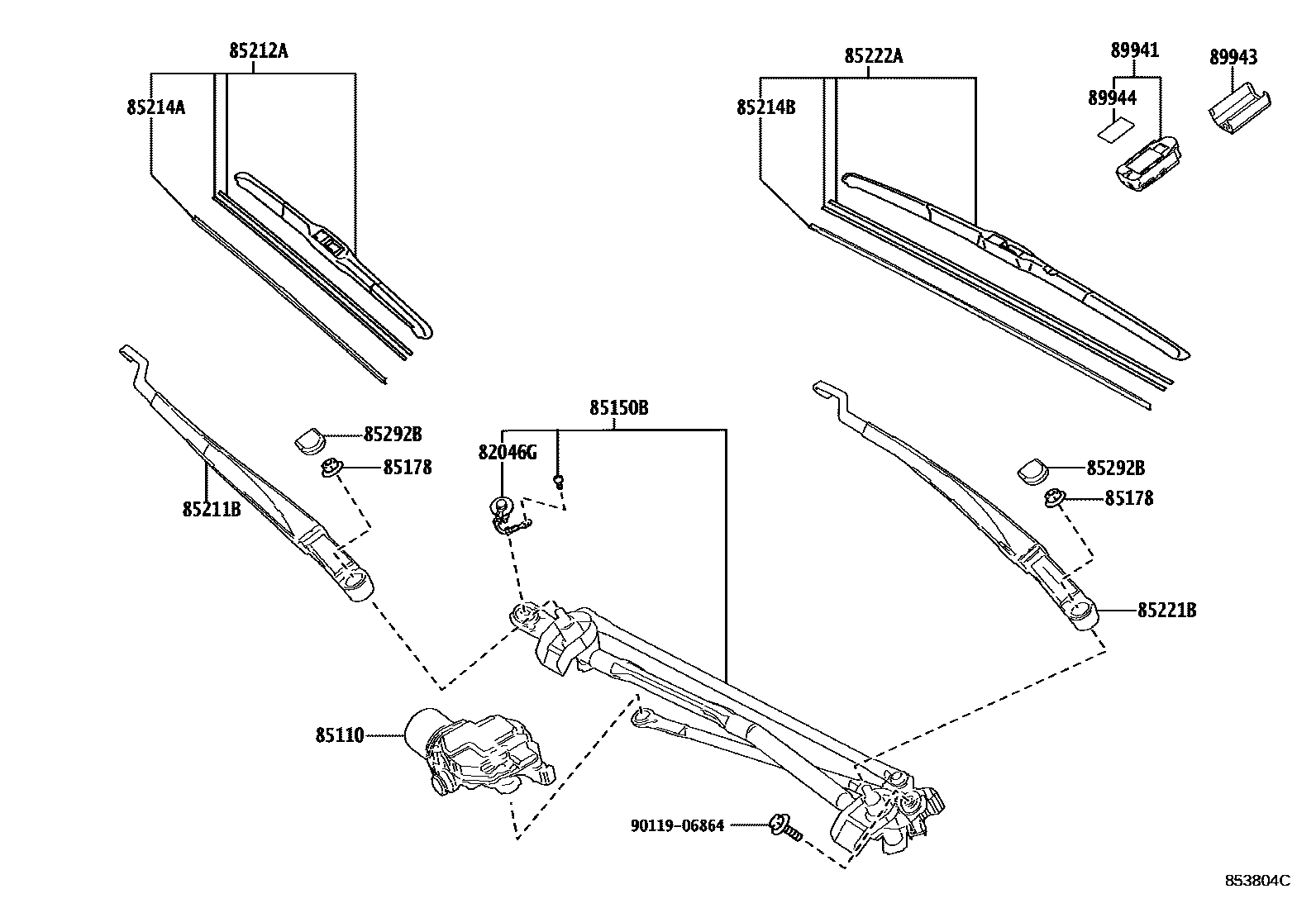

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1 0005 1

82046GWIRE SUB-ASSY, BODY GROUND

main82046-06090iASV7#,GSV70..RUS201804-202104

main82046-33060iAXVH71..LHD..D;ASV70,AXVH71..RHD201709-202101

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33430iASV7#,AXVA70,AXVH7#,GSV70..LHD201709-202010

main85110-33432iAXVH71..LHD..N202011-202312

main85110-33440iASV70,AXVH71..RHD201709-202010

main85110-33441iAXVA70,AXVH71..RHD202011-202101

85150BLINK ASSY, WIPER

main85150-06210iASV7#,GSV70..RUS201804-202104

main85150-06211iAXVA70,GSV70,MXVA71..RUS202104-202203

main85150-33290iASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR201709-202101

main85150-33291iAXVH71..LHD..D202102

UKRAINE SPEC

main85150-33291iAXVH71..LHD..N202102-202312

main85150-33291iAXVA70,AXVH70,GSV70..LHD..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main85150-33320iASV70,AXVH71..RHD..N201709-202101

main85150-33330iAXVH71..LHD..D201902-202101

main85150-33331iAXVH71..LHD..D;AXVA70..JPP..RUS202102

main85150-33370iAXVH71..RHD..D201902-202101

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

85211BARM, FRONT WIPER, RH

main85211-06210iASV7#,GSV70..RUS201804-202203

main85211-33440iAXVH71..LHD..D201902-202101

main85211-33450iAXVA70,AXVH70,GSV70..LHD..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main85211-33450iASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR201709-202312

main85211-33450iAXVA70,AXVH70,GSV70..LHD..EUR202102

UKRAINE SPEC

main85211-33460iASV70,AXVH71..RHD..N201709-202101

main85211-33470iAXVH71..RHD..D201902-202101

85212ABLADE, FR WIPER, RH

main85212-06210iAXVA70,GSV70,MXVA71..RUS201804-202203

main85212-33340iAXVH71..LHD..N201709-202312

main85212-33350iASV70,AXVH71..RHD201709-201805

main85212-52210iAXVA70,AXVH71..RHD201806-202101

85214ARUBBER, WIPER, RH

main85214-52110iAXVA70,AXVH71..RHD201709-202101

main85214-60120iASV7#,GSV70..RUS201709-202312

85214BRUBBER, WIPER, LH

main85214-52110iASV7#,GSV70..RUS201709-202312

main85214-60120iAXVA70,AXVH71..RHD201709-202101

85221BARM, FRONT WIPER, LH

main85221-06210iASV7#,GSV70..RUS201804-202203

main85221-33390iAXVH71..LHD..D201902-202101

main85221-33440iAXVA70,AXVH70,GSV70..LHD..EUR202102

UKRAINE SPEC

main85221-33440iAXVA70,AXVH70,GSV70..LHD..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main85221-33440iASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR201709-202312

main85221-33450iAXVA70,AXVH71..RHD..(N,S)201709-202101

main85221-33460iAXVH71..RHD..D201902-202101

85222ABLADE, FR WIPER, LH

main85222-06210iASV7#,GSV70..RUS201804-202203

main85222-33340iAXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP..LHD201709-202312

main85222-33350iASV70,AXVH71..RHD201709-202101

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iASV7#,GSV70..RUS201804-202203

main85292-13010iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

89941SENSOR, RAIN

main89941-06010iASV71201804-202104

TMR 6AR SALE SPECIFICATIONS A3

main89941-06010iASV70,GSV70..RUS201804-202104

TMR 6AR SALE SPECIFICATIONS A2

main89941-06010iAXVA70,GSV70..RUS202104-202203

TMR SALE SPECIFICATIONS A2

main89941-06010iAXVA70,GSV70..RUS202104-202203

TMR SALE SPECIFICATIONS A3

main89941-33060iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

89943COVER, RAIN SENSOR

main89943-33060iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

89944TAPE, RAIN SENSOR

main89944-42020iAXVH71..LHD..N201709-202312

main89944-F4010iASV71201804-201808

TMR 6AR SALE SPECIFICATIONS A3

main89944-F4010iASV71201804-201808

TMR 6AR SALE SPECIFICATIONS A2

main89944-F4020iASV71201809-202104

TMR 6AR SALE SPECIFICATIONS A2

main89944-F4020iASV71201809-202104

TMR 6AR SALE SPECIFICATIONS A3

main89944-F4020iAXVA70,GSV70..RUS202104-202203

TMR SALE SPECIFICATIONS A2

main89944-F4020iAXVA70,GSV70..RUS202104-202203

TMR SALE SPECIFICATIONS A3

9011906864

main90119-06864

15 parts on this diagram · 5 diagrams in section
