11711BEARING, CRANKSHAFT

main11071-31060-A1×2i202102-202203

MARK UPPER 1 LOWER 1,NO.2,REFER R/M

main11071-31060-A2×2i201709-202101

MARK UPPER 1 LOWER 2,NO.2,REFER R/M

main11071-31060-B2×2i202102

MARK UPPER 2 LOWER 2,NO.2,REFER R/M

main11071-31060-B3×2i201709-202104

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

main11071-31060-C3×2i201709-202104

MARK UPPER 3 LOWER 3,NO.2,REFER R/M

main11071-31060-C4×2i201709-202101

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

main11071-31060-D4×2i202102-202203

MARK UPPER 4 LOWER 4,NO.2,REFER R/M

main11071-31060-D5×2i201709-202104

MARK UPPER 4 LOWER 5,NO.2,REFER R/M

main11071-31060-E5×2i201709-202101

MARK UPPER 5 LOWER 5,NO.2,REFER R/M

main11701-25010-01×5i202111

MARK 1,NO.1 & NO.2,REF. R/M

main11701-25010-02×5i201709-201906

MARK 2,NO.1,2 REFER R/M

main11701-25010-03×5i202111-202203

MARK 3,NO.1 & NO.2,REF. R/M

main11701-25010-04×5i202111

MARK 4,NO.1 & NO.2,REF. R/M

main11701-25010-05×5i202111

MARK 5,NO.1 & NO.2,REF. R/M

main11701-25020-01×2i201906-202101

MARK 1,NO.2,REFER R/M

main11701-25020-02×2i201906-202101

MARK 2,NO.2,REFER R/M

main11701-25020-03×2i202102-202111

MARK 3,NO.2,REFER R/M

main11701-25020-04×2i201906-202101

MARK 4,NO.2,REFER R/M

main11701-25020-05×2i202102-202111

MARK 5,NO.2,REFER R/M

main11701-31100-A1×2i201709-202104

MARK UPPER 1 LOWER 1,NO.1,REFER R/M

main11701-31100-A2×2i201709-202101

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

main11701-31100-B2×2i202102

MARK UPPER 2 LOWER 2,NO.1,REFER R/M

main11701-31100-B3×2i202102-202203

MARK UPPER 2 LOWER 3,NO.1,REFER R/M

main11701-31100-C3×2i202102

MARK UPPER 3 LOWER 3,NO.1,REFER R/M

main11701-31100-C4×2i201709-202101

MARK UPPER 3 LOWER 4,NO.1,REFER R/M

main11701-31100-D4×2i202102-202203

MARK UPPER 4 LOWER 4,NO.1,REFER R/M

main11701-31100-D5×2i201709-202101

MARK UPPER 4 LOWER 5,NO.1,REFER R/M

main11701-31100-E5×2i202102

MARK UPPER 5 LOWER 5,NO.1,REFER R/M

main11701-F2030-01×5i202104-202203

MARK 1,REFER REPAIR MANUAL

main11701-F2030-02×5i202104-202203

MARK 2,REFER REPAIR MANUAL

main11701-F2030-03×5i202104-202203

MARK 3,REFER REPAIR MANUAL

main11701-F2030-04×5i202104-202203

MARK 4,REFER REPAIR MANUAL

main11701-F2030-05×5i202104-202203

MARK 5,REFER REPAIR MANUAL

main11701-F2030-06×5i202104-202203

MARK 6,REFER REPAIR MANUAL

main11711-0V040-01×5i201804-202104

MARK 1,*347:REFER R/M

main11711-0V040-02×5i201804-202104

MARK 2,*347:REFER R/M

main11711-0V040-03×5i201804-202104

MARK 3,*347:REFER R/M

main11711-0V040-04×5i201804-202104

MARK 4,*347:REFER R/M

main11711-0V050-01×5i201804-202104

MARK 1,(L),REFER R/M

main11711-0V050-02×5i201804-202104

MARK 2,(L),REFER R/M

main11711-0V050-03×5i201804-202104

MARK 3,(L),REFER R/M

main11711-0V050-04×5i201804-202104

MARK 4,(L),REFER R/M

main11711-36040-01×5i201804-202104

MARK 1,(J),REFER R/M

main11711-36040-02×5i201804-202104

MARK 2,(J),REFER R/M

main11711-36040-03×5i201804-202104

MARK 3,(J),REFER R/M

main11711-36040-04×5i201804-202104

MARK 4,(J),REFER R/M

main11711-36050-01×5i201709-202104

MARK 1,*524:REFER R/M

main11711-36050-02×5i201709-202104

MARK 2,*524:REFER R/M

main11711-36050-03×5i201709-202101

MARK 3,*524:REFER R/M

main11711-36050-04×5i201709-202104

MARK 4,*524:REFER R/M

11721BEARING, CRANKSHAFT, NO.2

main11721-0V040-01×5i201804-202104

MARK 1,*347:REFER R/M

main11721-0V040-02×5i201804-202104

MARK 2,*347:REFER R/M

main11721-0V040-03×5i201804-202104

MARK 3,*347:REFER R/M

main11721-0V040-04×5i201804-202104

MARK 4,*347:REFER R/M

main11721-0V050-01×5i201804-202104

MARK 1,(L),REFER R/M

main11721-0V050-02×5i201804-202104

MARK 2,(L),REFER R/M

main11721-0V050-03×5i201804-202104

MARK 3,(L),REFER R/M

main11721-0V050-04×5i201804-202104

MARK 4,(L),REFER R/M

main11721-36040-01×5i201804-202104

MARK 1,(J),REFER R/M

main11721-36040-02×5i201804-202104

MARK 2,(J),REFER R/M

main11721-36040-03×5i201804-202104

MARK 3,(J),REFER R/M

main11721-36040-04×5i201804-202104

MARK 4,(J),REFER R/M

main11721-36050-01×5i201709-202104

MARK 1,*524:REFER R/M

main11721-36050-02×5i201709-202104

MARK 2,*524:REFER R/M

main11721-36050-03×5i201709-202104

MARK 3,*524:REFER R/M

main11721-36050-04×5i201709-202101

MARK 4,*524:REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0V020×2i201804-202104

STD,*347

main11791-0V030×2i201804-202104

STD,(L)

main11791-25030×2i201709-202101

STD

main11791-25040×2i202103

STD

main11791-36020×2i201709-202104

STD,*524

main11791-F2040×2i202104-202203

STD

13011RING SET, PISTON

main13011-0V070×4i201804-202104

STD,*347

main13011-0V080×4i201804-202104

STD

main13011-25050i201709-201803

STD

main13011-25070i201709-201803

STD

main13011-25080i202102-202312

STD

main13011-31230i201709-202104

STD

main13011-31290i202307

STD

main13011-36120i201709-201812

STD,*524

main13011-36170i201812-202104

STD,*524

main13011-F2020i202104-202203

STD

13041BEARING, CONNECTING ROD

main13041-25020-01×4i202102

MARK 1,REFER REPAIR MANUAL

main13041-25020-02×4i202102

MARK 2,REFER REPAIR MANUAL

main13041-25020-03×4i201709-202101

MARK 3,REFER REPAIR MANUAL

main13041-31100-01×6i201709-202101

MARK 1

main13041-31100-02×6i201709-202104

MARK 2

main13041-31100-03×6i201709-202104

MARK 3

main13041-31100-04×6i201709-202104

MARK 4

main13041-F2010-01×4i202104-202203

MARK 1

main13041-F2010-02×4i202104-202203

MARK 2

main13041-F2010-03×4i202104-202203

MARK 3

main13281-0V021-01×8i201804-202104

MARK 1,*347:REFER R/M

main13281-0V021-02×8i201804-202104

MARK 2,*347:REFER R/M

main13281-0V021-03×8i201804-202104

MARK 3,*347:REFER R/M

main13281-0V030-01×8i201804-202104

MARK 1,(L),REFER R/M

main13281-0V030-02×8i201804-202104

MARK 2,(L),REFER R/M

main13281-0V030-03×8i201804-202104

MARK 3,(L),REFER R/M

main13281-36021-01×8i201709-202104

MARK 1,*524:REFER R/M

main13281-36021-02×8i201709-202104

MARK 2,*524:REFER R/M

main13281-36021-03×8i201709-202104

MARK 3,*524:REFER R/M

main13281-36030-01×8i201804-202104

MARK 1,(J),REFER R/M

main13281-36030-02×8i201804-202104

MARK 2,(J),REFER R/M

main13281-36030-03×8i201804-202104

MARK 3,(J),REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-25030×4i201709-202101

STD

main13101-25040×4i202102

STD

main13101-31171-A0×3i201709-202101

STD,MARK A,RH BANK

main13101-31171-B0×3i202102-202203

STD,MARK B,RH BANK

main13101-31171-C0×3i202102-202203

STD,MARK C,RH BANK

main13101-F2090×4i202104-202203

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202104-202203

main90520-21024×8i202102-202312

main90520-22025×12i202102-202203

13201ROD SUB-ASSY, CONNECTING

main13201-09A81-A0×4i201804-202104

MARK A,*347:REFER R/M

main13201-09A81-B0×4i201804-202104

MARK B,*347:REFER R/M

main13201-09A81-C0×4i201804-202104

MARK C,*347:REFER R/M

main13201-09C00-A0×4i201804-202104

MARK A,REFER REPAIR MANUAL

main13201-09C00-B0×4i201804-202104

MARK B,REFER REPAIR MANUAL

main13201-09C00-C0×4i201804-202104

MARK C,REFER REPAIR MANUAL

main13201-29815-A0×4i201709-202101

MARK A,REFER REPAIR MANUAL

main13201-29815-B0×4i201709-202101

MARK B,REFER REPAIR MANUAL

main13201-29815-C0×4i201709-202101

MARK C,REFER REPAIR MANUAL

main13201-39226-A0×4i201709-202104

MARK A,*524:REFER R/M

main13201-39226-B0×4i201709-202101

MARK B,*524:REFER R/M

main13201-39226-C0×4i201709-202104

MARK C,*524:REFER R/M

main13201-39285-A0×6i202102

MARK A,REFER REPAIR MANUAL

main13201-39285-B0×6i202102

MARK B,REFER REPAIR MANUAL

main13201-39285-C0×6i202102

MARK C,REFER REPAIR MANUAL

main13201-F9010-A0×4i202104-202203

MARK A,REFER REPAIR MANUAL

main13201-F9010-B0×4i202104-202203

MARK B,REFER REPAIR MANUAL

main13201-F9010-C0×4i202104-202203

MARK C,REFER REPAIR MANUAL

13211PISTON

main13211-0V090-A0×4i201804-202104

MARK A,*347:REFER R/M

main13211-0V090-B0×4i201804-202104

MARK B,*347:REFER R/M

main13211-0V090-C0×4i201804-202104

MARK C,*347:REFER R/M

main13211-0V140-A0×4i201804-202104

MARK A,REFER REPAIR MANUAL

main13211-0V140-B0×4i201804-202104

MARK B,REFER REPAIR MANUAL

main13211-0V140-C0×4i201804-202104

MARK C,REFER REPAIR MANUAL

main13211-36090-A0×4i201709-202104

MARK A,*524:REFER R/M

main13211-36090-B0×4i201709-202104

MARK B,*524:REFER R/M

main13211-36090-C0×4i201709-202104

MARK C,*524:REFER R/M

13251PIN, PISTON

main13251-0H040-A0×4i201804-202104

MARK A,*347:REFER R/M; MARK A,REFER REPAIR MANUAL

main13251-0H040-B0×4i201804-202104

MARK B,*347:REFER R/M; MARK B,REFER REPAIR MANUAL

main13251-0H040-C0×4i201804-202104

MARK C,*347:REFER R/M; MARK C,REFER REPAIR MANUAL

main13251-28020-A0×4i201709-202101

MARK A,*524:REFER R/M

main13251-28020-B0×4i201709-202101

MARK B,*524:REFER R/M

main13251-28020-C0×4i201709-202104

MARK C,*524:REFER R/M

13265BOLT, CONNECTING ROD

main13265-0V010×8i201804-202104

(L); (L),*347

main13265-25020×8i202102-202203

main13265-28010×12i201709-201901

main13265-28020×12i201901-202101

main13265-31020×8i201804-202104

(J); (J),*347

13411CRANKSHAFT

main13401-0V021i201804-201901

*347

main13401-0V070i201804-202104

main13401-25010i201709-202101

main13401-31070i202102-202307

main13401-31080i202307

*714

main13401-36011i201709-202104

*524

main13401-F2040i202104-202203

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main90280-C0001i201804-202104

(L); (L),*347

main95161-30516i201709-202104

*524

13471PULLEY, CRANKSHAFT

main13470-0V030i201804-202104

*347

main13470-0V050i201804-202104

main13470-31060i201709-202104

main13470-36010i201709-202101

*524

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i201709-202101

main90280-C0001i201804-202104

(L); (L),*347

main95161-30516i201804-202104

(J); (J),*347

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202102-202312

main90119-C0429i201804-202104

(L); (L),*347

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0V020i201804-202104

*347

main13521-24010i202106-202203

(J)

main13521-25010i202102-202312

main13521-31070i202102

main13521-36010i201709-202101

*524

main13521-F2040i202106-202203

(L)

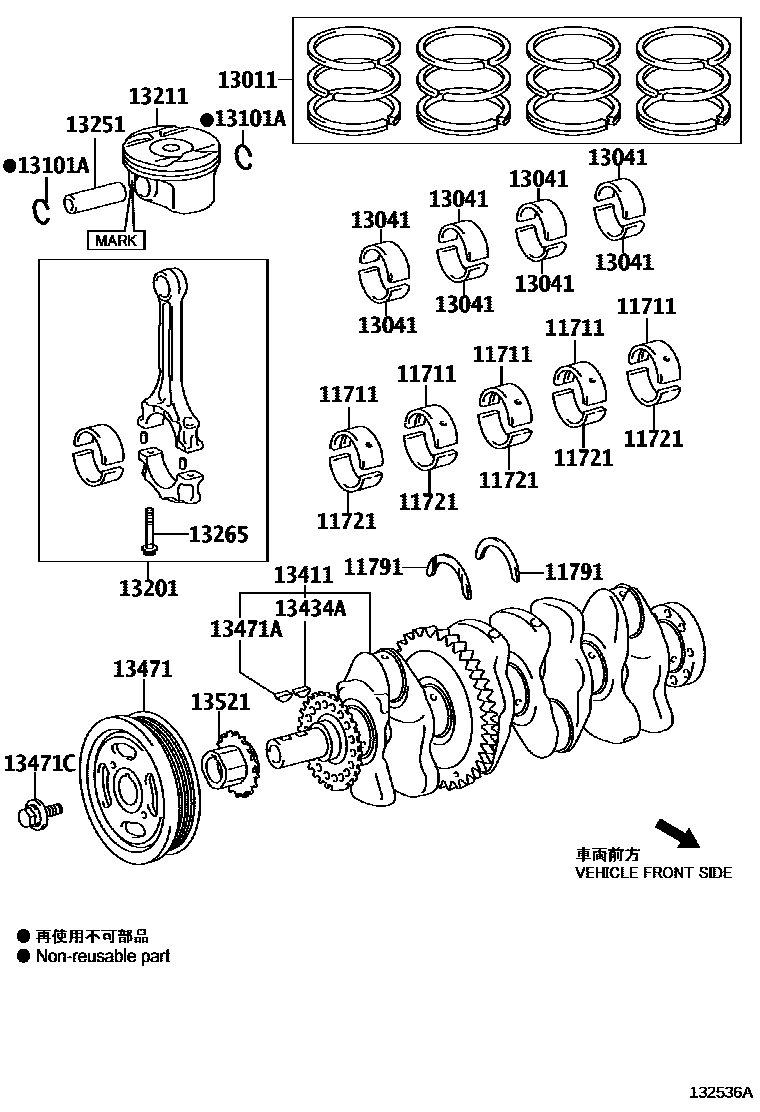

CRANKSHAFT & PISTON
